Tecnoseal 107890 / 203127 Hamilton Jet HM461 Engine Washer Anode

Name: Tecnoseal 107890 / 203127 Hamilton Jet HM461 Engine Washer Anode
SKU: Tecnoseal 02527

ID 1405824

$ 173.84

1-2 weeks delivery time

Type:

Zinc
Aluminium

Item:

700 g
1.76 kg

The Tecnoseal 02527 series consists of sacrificial engine washer anodes designed for the Hamilton Jet HM461 waterjet propulsion system, corresponding to OEM part numbers 107890 and 203127. The anode features a contoured, tapered body with a central mounting hole, measuring 100 mm (3.94 in) in length, 63 mm (2.48 in) in width and 51 mm (2.01 in) in height. The additional length dimension (l1) is 75 mm (2.95 in), and the mounting hole diameter is 10.5 mm (0.41 in). Available in zinc (02527, 1.76 kg / 3.88 lbs) and aluminium (02527AL, 0.70 kg / 1.54 lbs), both versions share the same dimensions and provide sacrificial corrosion protection for compatible Hamilton Jet HM461 components.

Description
Ask a Question

Tecnoseal 107890 / 203127 Hamilton Jet HM461 Engine Washer Anode – Zinc or Aluminium

The Tecnoseal 02527 series consists of sacrificial engine washer anodes designed for the Hamilton Jet HM461 waterjet propulsion system. Corresponding to Hamilton Jet OEM part numbers 107890 and 203127, these replacement anodes help protect compatible metallic propulsion components against galvanic corrosion.

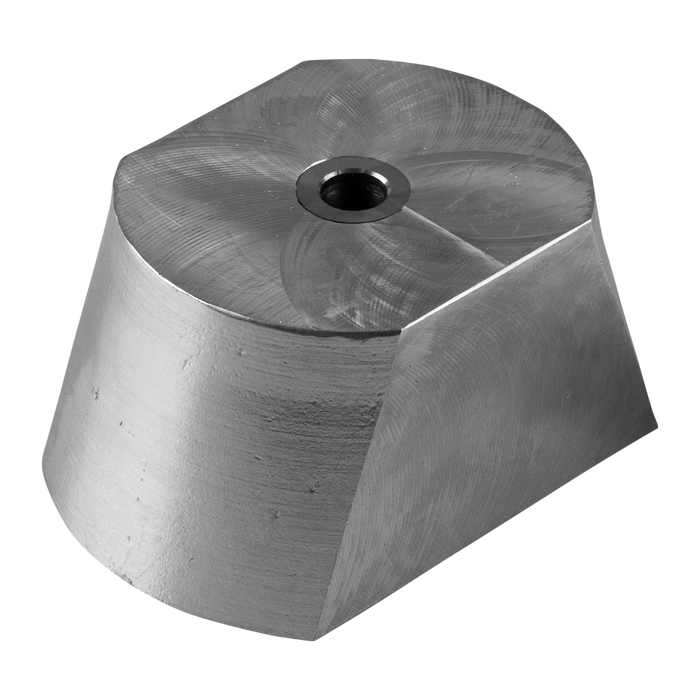

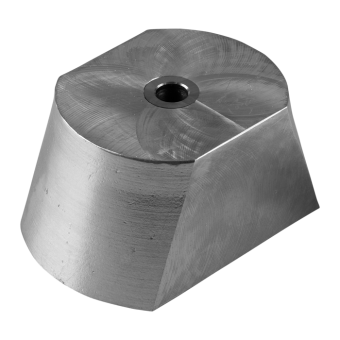

The anode features a contoured, tapered body with a central mounting hole. According to the Tecnoseal catalogue, it measures 100 mm (3.94 in) in overall length, 63 mm (2.48 in) in width and 51 mm (2.01 in) in height. The additional length dimension (l1) is 75 mm (2.95 in), while the central mounting hole has a diameter of 10.5 mm (0.41 in).

Two material versions are available: zinc (Tecnoseal 02527) and aluminium (Tecnoseal 02527AL). Both versions share identical dimensions and mounting specifications, with weights of 1.76 kg and 0.70 kg respectively.

Technical Specifications

Manufacturer	Tecnoseal
Product Type	Engine Washer Sacrificial Anode
Compatible Brand	Hamilton Jet
Compatible Model	HM461
OEM References	107890, 203127
Available Materials	Zinc, Aluminium
Length (l)	100 mm (3.94 in)
Width (a)	63 mm (2.48 in)
Height (h)	51 mm (2.01 in)
Additional Length (l1)	75 mm (2.95 in)
Mounting Hole Diameter (Ø)	10.5 mm (0.41 in)
Construction	Contoured tapered body with central mounting hole

Available Versions and Product References

Tecnoseal Code	Material	Weight	EAN
02527	Zinc	1.76 kg (3.88 lbs)	8033837069492
02527AL	Aluminium	0.70 kg (1.54 lbs)	8052744984650

Dimensions and Mounting

Overall Length (l): 100 mm (3.94 in)
Width (a): 63 mm (2.48 in)
Height (h): 51 mm (2.01 in)
Additional Length (l1): 75 mm (2.95 in)
Mounting Hole Diameter (Ø): 10.5 mm (0.41 in)
Design: Contoured tapered washer anode with central mounting hole

Tecnoseal 02527 – Zinc Engine Washer Anode

The Tecnoseal 02527 is the zinc version of the Hamilton Jet HM461 engine washer anode. It features a contoured body measuring 100 x 63 x 51 mm and a 10.5 mm central mounting hole.

Material: Zinc
Weight: 1.76 kg (3.88 lbs)
Compatible Model: Hamilton Jet HM461
EAN: 8033837069492

Tecnoseal 02527AL – Aluminium Engine Washer Anode

The Tecnoseal 02527AL is the aluminium version of the Hamilton Jet HM461 engine washer anode. It shares the same dimensions and central mounting configuration as the zinc version, with a weight of 0.70 kg.

Material: Aluminium
Weight: 0.70 kg (1.54 lbs)
Compatible Model: Hamilton Jet HM461
EAN: 8052744984650

OEM and Product Cross-References

Hamilton Jet OEM: 107890
Hamilton Jet OEM: 203127
Tecnoseal Zinc: 02527
Tecnoseal Aluminium: 02527AL

Key Features

Sacrificial engine washer anode for Hamilton Jet HM461 waterjet propulsion systems.
Contoured tapered body with central mounting hole.
100 x 63 x 51 mm overall dimensions.
75 mm additional length dimension (l1).
10.5 mm mounting hole diameter.
Available in zinc and aluminium versions.
Corresponds to Hamilton Jet OEM references 107890 and 203127.
Helps protect compatible metallic waterjet propulsion components against galvanic corrosion.

Compatibility: Designed for the Hamilton Jet HM461 waterjet propulsion system, corresponding to OEM references 107890 and 203127. Verify the existing anode dimensions, mounting configuration and 10.5 mm mounting hole diameter before ordering. Select the appropriate sacrificial material according to the manufacturer's recommendations and operating water conditions.
