The Tecnoseal 02529 is a zinc sacrificial engine washer anode designed for the Hamilton Jet HM571 waterjet propulsion system, corresponding to OEM part number 107360. It features a cylindrical body with a recessed central mounting hole, measuring 75 mm (2.95 in) in outer diameter and 37 mm (1.46 in) in overall height. The inner recess has a diameter of 40 mm (1.57 in) and a depth of 32 mm (1.26 in), while the central through-hole measures 25 mm (0.98 in) in diameter. Weighing 0.86 kg (1.90 lbs), this zinc anode provides sacrificial corrosion protection for compatible Hamilton Jet propulsion components.
- Description
- Ask a Question
-

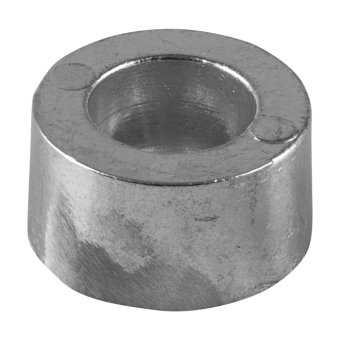

Tecnoseal 107360 Hamilton Jet HM571 Zinc Engine Washer Anode Ø75 mm
The Tecnoseal 02529 is a zinc sacrificial engine washer anode designed for the Hamilton Jet HM571 waterjet propulsion system. Corresponding to Hamilton Jet OEM part number 107360, this replacement anode helps protect compatible metallic propulsion components against galvanic corrosion.

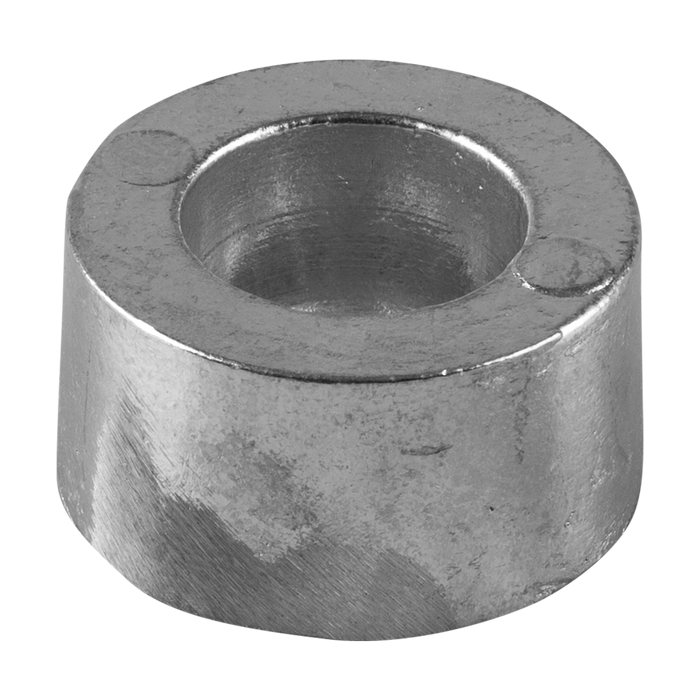

The anode features a cylindrical washer-shaped body with a recessed central mounting hole. According to the Tecnoseal catalogue, it measures 75 mm (2.95 in) in outer diameter and 37 mm (1.46 in) in overall height. The central recess has a diameter of 40 mm (1.57 in) and a depth of 32 mm (1.26 in), while the through-hole measures 25 mm (0.98 in) in diameter.
Manufactured from zinc, the Tecnoseal 02529 weighs 0.86 kg (1.90 lbs). Its recessed mounting configuration is designed for compatible Hamilton Jet HM571 propulsion components.
Technical Specifications
Manufacturer Tecnoseal Product Code 02529 Product Type Engine Washer Sacrificial Anode Compatible Brand Hamilton Jet Compatible Model HM571 OEM Reference 107360 Material Zinc Weight 0.86 kg (1.90 lbs) Outer Diameter (Ø) 75 mm (2.95 in) Overall Height (h) 37 mm (1.46 in) Recess Depth (a) 32 mm (1.26 in) Recess Diameter (Ø1) 40 mm (1.57 in) Through-Hole Diameter (Ø2) 25 mm (0.98 in) EAN 8052744980591
Dimensions and Mounting
- Outer Diameter (Ø): 75 mm (2.95 in)
- Overall Height (h): 37 mm (1.46 in)
- Recess Depth (a): 32 mm (1.26 in)
- Mounting Recess Diameter (Ø1): 40 mm (1.57 in)
- Through-Hole Diameter (Ø2): 25 mm (0.98 in)
- Construction: Cylindrical body with recessed central mounting hole
Compatible Hamilton Jet Models
- Hamilton Jet HM571
OEM and Product Cross-References
- Hamilton Jet OEM: 107360
- Tecnoseal Zinc: 02529
Key Features
- Zinc sacrificial engine washer anode for Hamilton Jet HM571 waterjet propulsion systems.
- Cylindrical body with recessed central mounting hole.
- 75 mm outer diameter and 37 mm overall height.
- 40 mm mounting recess diameter and 32 mm recess depth.
- 25 mm central through-hole diameter.
- Corresponds to Hamilton Jet OEM part number 107360.
- Helps protect compatible metallic propulsion components against galvanic corrosion.
Compatibility: Designed for the Hamilton Jet HM571 waterjet propulsion system, corresponding to OEM reference 107360. Verify the existing anode dimensions, 40 mm mounting recess and 25 mm through-hole before ordering.
-
