ID
1353923
$ 2,976.14
1-2 weeks delivery time
-
+
The MARCO UP12/E-DX gear pump (part number 16468513) is a 24V unit rated for 72 L/min (free discharge) with a cut-off pressure of 2.5 bar. It is self-priming up to 3 m and uses 1 inch (25 mm) connections (1 inch BSPP). The pump draws 28 A and is supplied as a dual pump unit with an electronic control panel; listed construction details include a nickel-plated brass housing and connections, stainless steel spindle, PEEK helical gears, FKM seals, an NBR O-ring, a non-return valve, and an electronic pressure sensor.
- Description
- Ask a Question
-

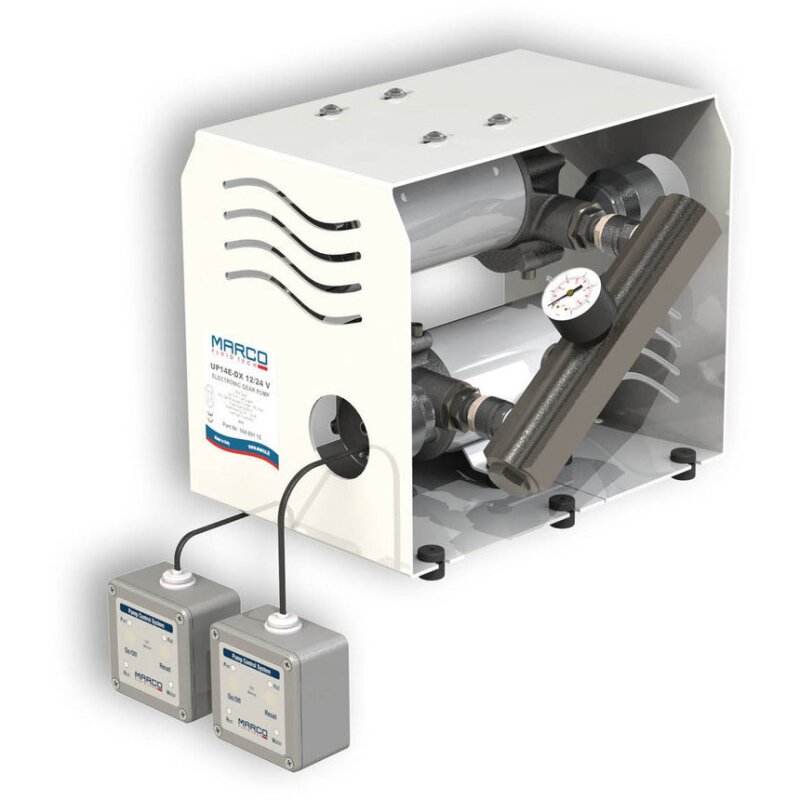

MARCO UP12/E-DX 24V Gear Pump Assembly
The MARCO 16468513 is a 24V gear pump designed for water pressure system applications. It is a self-priming unit supplied as a dual pump assembly with an electronic control panel, and it includes a non-return valve and an electronic pressure sensor for system operation.
Technical Specifications
Flow Rate 72 L/min (free discharge / without back pressure) Cut-Off Pressure 2.5 bar Voltage 24V Current Consumption 28 A Self-Priming Up to 3 m Connection 1 inch (25 mm) Connection Standard 1 inch BSPP Dimensions (H x W x L) 300 x 260 x 297 mm Shipping Weight 19.30 kg Product Portfolio Water Pressure Systems Materials (Listed) Nickel-plated brass housing and connections; stainless steel spindle; PEEK helical gears; FKM seals; NBR O-ring; HNBR
Features
- 72 L/min rated flow (free discharge / without back pressure)
- Self-priming up to 3 m
- Dual pump unit with electronic control panel included
- Non-return valve and electronic pressure sensor
- 1 inch connections (1 inch BSPP)
Product Details
If there are uncertainties regarding material compatibility between the pumped liquid and the pump materials in contact with the medium, confirm compatibility before putting the pump into operation.
-
