ID
1172823
$ 238.89
1-2 weeks delivery time
-
+
The Marco UP2/E is a self-priming automatic gear pump for marine water pressure systems with an electronic pressure system/sensor and a built-in check (non-return) valve. It is rated for 12/24V operation and is listed with a flow rate of 10 L/min and also 12 L/min (free discharge), with pressure values stated as 1.5 bar maximum and 2 bar cut-off pressure. Construction details include helical PEEK gears, a nickel-plated brass body/housing and connections, a stainless steel shaft/spindle, FKM seals, and an NBR O-ring; it is self-priming up to 1.5 m and uses 3/8 inch connections (including 3/8 inch BSPP).
- Description
- Ask a Question
-

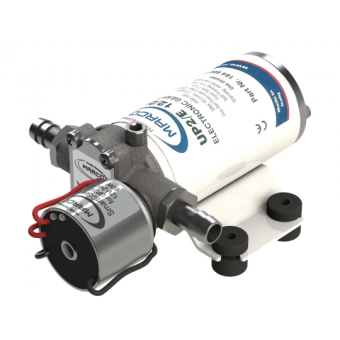

Marco UP2/E Automatic Self-Priming Gear Pump
The Marco UP2/E is a self-priming automatic gear pump designed for marine fresh water pressure systems. It uses an electronic pressure system (sensor) to support reliable onboard water pressure and is specified with a built-in check (non-return) valve for system operation.
Technical Specifications

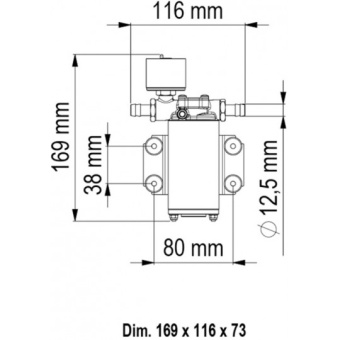

Brand Marco Part Number 16466015 Model UP2/E Product Portfolio Water Pressure Systems FNI Product Number 1600008 EAN 8022278605062 Pump Type Self-priming automatic gear pump Voltage 12/24V (also listed as 12V) Flow Rate 10 L/min (also listed as 12 L/min free discharge) Pressure 1.5 bar maximum (also listed as 2 bar cut-off pressure) Current Consumption 3–1.5 A (also listed as 6/3 A) Self-Priming Up to 1.5 m Connection 3/8 inch BSPP (also listed as 3/8 inch / 9.5 mm) Outlet Dimensions 3/8 x 16 mm Materials Nickel-plated brass body/housing and connections; stainless steel shaft/spindle; helical PEEK gears; FKM seals; NBR O-ring Dimensions (H x W x L) 164 x 81 x 116 mm Shipping Weight 1.70 kg
Features
- Electronic pressure system (electronic pressure sensor)
- Self-priming design for marine installations
- Helical PEEK gears for durability
- Nickel-plated brass pump body/housing and connections with stainless steel shaft/spindle
- Built-in check (non-return) valve
Product Details
- Main applications listed: fresh water pressure systems, shower kits on yachts, rubber dinghies, and sailing boats
-
