ID
1353925
$ 3,116.32
1-2 weeks delivery time
-
+
The MARCO UP14/E-DX gear pump is a 24V unit rated for 92 L/min (free discharge/without back pressure) with a cut-off pressure of 3.5 bar. It is self-priming up to 3 m, draws 18 A, and uses 1 inch connections (listed as 25 mm and 1 inch BSPP). Construction details include a nickel-plated brass housing and connections, a stainless steel spindle, FKM seals, and an NBR O-ring; the pump is specified with HNBR and includes a dual pump unit with an electronic control panel.
- Description
- Ask a Question
-

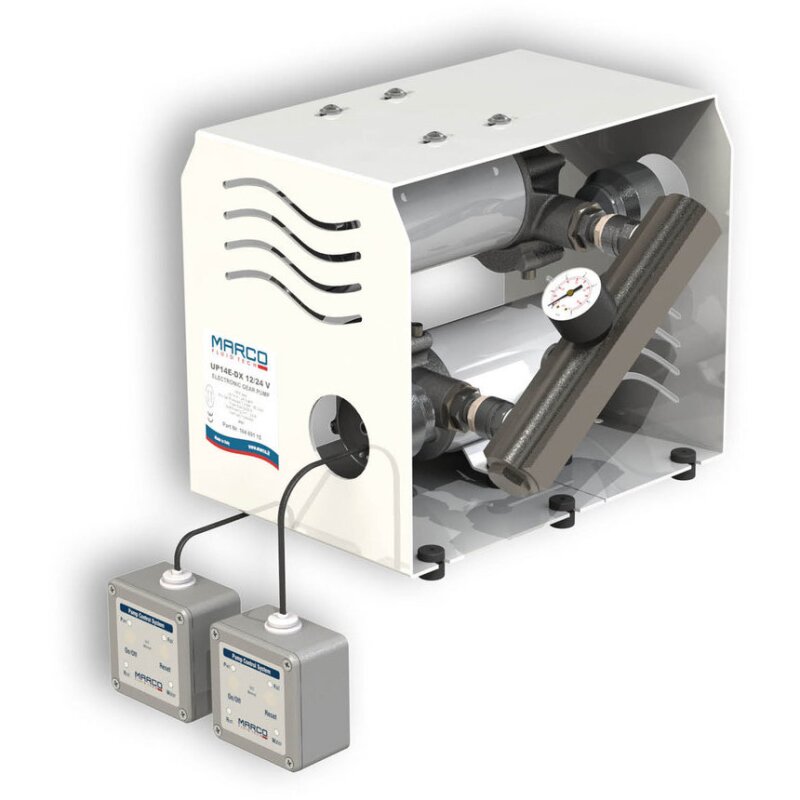

UP14/E-DX Self-Priming 24V Gear Pump Assembly
The MARCO 16469113 is a self-priming gear pump for water pressure system applications, designed for high flow delivery and controlled operation via an included electronic control panel. It features a dual pump unit design and is specified with an integrated non-return valve and an electronic pressure sensor.
If there is any uncertainty about material compatibility with the pumped liquid, compatibility of the wetted materials should be confirmed before commissioning.
Technical Specifications
Brand MARCO Model UP14/E-DX Pump Type Gear pump Voltage 24V Output 92 L/min Flow Condition Free discharge / without back pressure Cut-Off Pressure 3.5 bar Self-Priming Up to 3 m Current Consumption 18 A Connection 1 inch (25 mm) Connection Thread 1 inch BSPP Dimensions (H x W x L) 300 x 260 x 307 mm Housing and Connections Material Nickel-plated brass Spindle Material Stainless steel Seal Materials FKM seals; NBR O-ring Specified Material HNBR Gear Type PEEK helical gear Integrated Components Non-return valve; electronic pressure sensor Included Dual pump unit; electronic control panel Product Portfolio Water Pressure Systems Shipping Weight 20.50 kg
Features
- 92 L/min flow rate (free discharge/without back pressure)
- Self-priming up to 3 m
- 1 inch connections (listed as 25 mm) and 1 inch BSPP connection specification
- Electronic control panel included
- Dual pump unit design
- Nickel-plated brass housing and connections with stainless steel spindle
- Specified with non-return valve and electronic pressure sensor
-
