ID
1353926
$ 440.07
1-2 weeks delivery time
-
+
The MARCO DP3/E sensor-controlled deck wash pump kit is a 12/24V gear pump rated for 14 L/min (free discharge) with a 3 bar cut-off pressure. It is self-priming up to 1.5 m and uses a 3/8 inch BSPP connection (also stated as 3/8 inch / 9.5 mm). The pump draws 10 A, measures 189 x 101 x 186 mm (H x W x L), and is supplied with a cleaning kit including a 15 m (50 ft) retractable hose and nozzle; construction details include a nickel-plated brass body and ports, stainless steel spindle, PEEK helical gears, FKM seals, and an NBR O-ring.
- Description
- Ask a Question
-

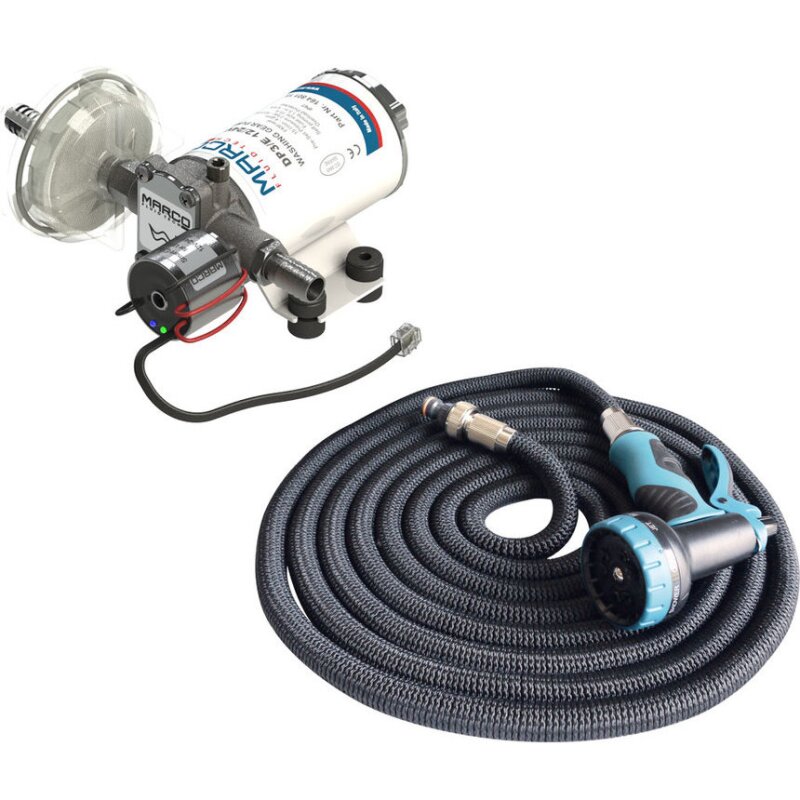

DP3/E Sensor-Controlled Deck Wash Gear Pump Kit
The MARCO 16480115 DP3/E is a sensor-controlled deck wash gear pump designed for water pressure system and cleaning tasks. It combines a self-priming electric gear pump with an electronic pressure sensor and a non-return valve, and is supplied as a complete deck wash kit with retractable hose and nozzle.
Technical Specifications
Flow Rate 14 L/min (free discharge / without back pressure) Cut-Off Pressure 3 bar Voltage 12V / 24V (also listed as 12V) Current Consumption 10 A Self-Priming Up to 1.5 m Connection 3/8 inch BSPP (also stated as 3/8 inch / 9.5 mm) Dimensions (H x W x L) 189 x 101 x 186 mm Housing and Connections Nickel-plated brass Spindle Material Stainless steel Gear Type PEEK helical gears Seal Materials FKM seals; NBR O-ring; HNBR (stated) Included Hose 15 m / 50 ft retractable hose Included Nozzle Yes Shipping Weight 5.70 kg Product Portfolio Water Pressure Systems
Features
- Sensor-controlled operation with electronic pressure sensor
- Non-return valve integrated
- Self-priming up to 1.5 m
- Supplied as a deck wash kit with retractable hose and nozzle
- Nickel-plated brass body/ports with stainless steel spindle
Product Details
The pump is described as a self-priming end, electric helical gear pump (PEEK gears) intended for deck wash use. Please verify material compatibility with the liquid being pumped before commissioning.
-
