The Marco DP9/E sensor deck wash pump kit is a 12/24V electric gear pump rated up to 12 L/min (free flow) and 4.5 bar maximum pressure, with an electronic pressure sensor and check valve. It is self-priming up to 1.5 m, draws 10 A, and uses 3/8 inch (9.5 mm) connections. The housing and fittings are nickel-plated brass with a stainless steel shaft, HNBR seals, and an NBR O-ring; the kit includes a 15 m retractable hose and spray nozzle. Dimensions are 220 x 106 x 193 mm, with a shipping weight of 5.50 kg.
- Description
- Ask a Question
-

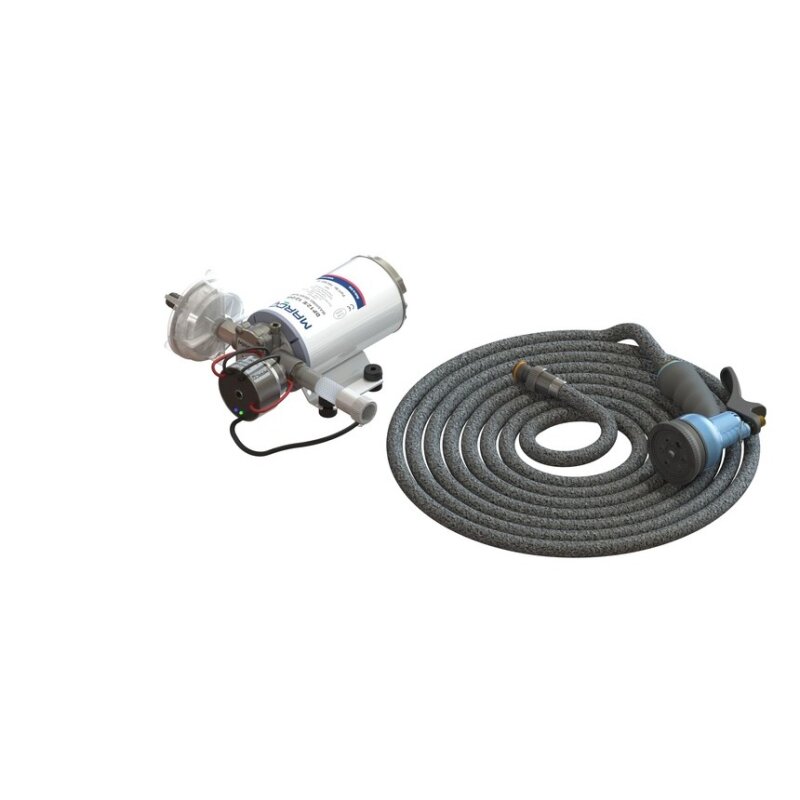

DP9/E Electronic Sensor Deck Wash Pump Kit
The Marco 16482115 is a self-priming electric deck wash pump kit designed to supply wash water through an included hose and spray nozzle. It uses a helical gear pump design with an integrated check valve and an electronic pressure sensor for controlled operation.
Technical Specifications
Voltage 12 / 24V Max Flow Rate 12 L/min (free flow / no back pressure) Max Pressure 4.5 bar Self-Priming Up to 1.5 m Current Consumption 10 A Connections 3/8 inch (9.5 mm) Dimensions (H x W x L) 220 x 106 x 193 mm Housing and Fittings Material Nickel-plated brass Shaft Material Stainless steel Seal Material HNBR O-Ring Material NBR Pump Type PEEK helical gear electric pump Shipping Weight 5.50 kg
Features
- Electronic pressure sensor for controlled pump operation
- Check valve integrated
- Self-priming up to 1.5 m
- Includes 15 m (50 ft) retractable hose and spray nozzle (cleaning kit)
Product Details
Before commissioning the pump, verify compatibility of the pump’s wetted materials with the liquid being pumped.
-
