ID
1172828
$ 1,218.36
1-2 weeks delivery time
-
+
The Marco UP14/E self-priming autoclave gear pump is an electrically driven unit with electronic control, an integrated non-return valve, and helical PEEK gears. It delivers 46 L/min (free discharge) with a 12–24 V operating range and 18/9 A current draw, with a 2.5 bar cut-off pressure. Built with a nickel-plated brass body and connections and a stainless steel shaft, it includes a control panel, uses 3/4 inch connections (3/4 inch BSPP / 19 mm), is self-priming up to 3 m, requires a 30 A fuse (not included), and measures 263 x 119 x 225 mm with a shipping weight of 6.40 kg.
- Description
- Ask a Question
-

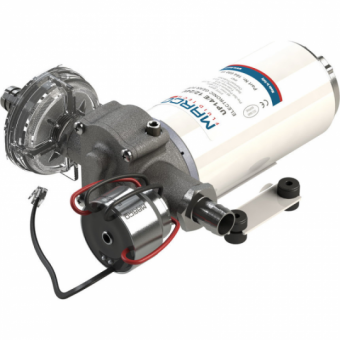

UP14/E Self-Priming Autoclave Gear Pump With Electronic Control
The Marco UP14/E is a self-priming electric autoclave pump designed for consistent pressure-system performance. It uses helical PEEK gears and electronic control, and integrates a non-return valve for reliable operation in water pressure system applications.
Technical Specifications

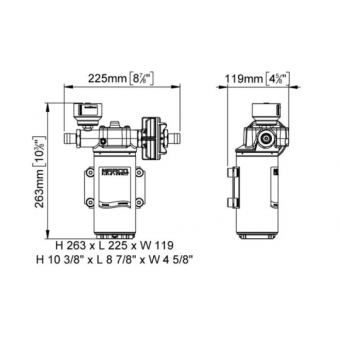

Flow Rate (Free Discharge) 46 L/min Cut-Off Pressure 2.5 bar Operating Voltage 12–24 V Current Draw 18 / 9 A Self-Priming Up to 3 m Connections 3/4 inch (19 mm) Connection Thread 3/4 inch BSPP Body and Connections Material Nickel-plated brass Shaft Material Stainless steel Gear Type Helical PEEK gears Valves Integrated non-return valve Control Electronic control; electronic pressure sensor Control Panel Included Seals / O-Ring FKM seals; NBR O-ring Additional Material Reference HNBR Required Fuse 30 A (not included) Dimensions (H x W x L) 263 x 119 x 225 mm Shipping Weight 6.40 kg Product Portfolio Water Pressure Systems EAN 8052461675763 FNI Product Number 1600018
Features
- Self-priming electric gear pump design
- Helical PEEK gears for pump operation
- Integrated non-return valve for optimal operation
- Electronic control with electronic pressure sensor
- Nickel-plated brass body and connections with stainless steel shaft
- Control panel included
Product Details
- Brand: Marco
- Manufacturer Part Number: 16469015
- FNI Reference: Forniture Nautiche Italiane 1600018
-
