ID
1353869
$ 651.95
1-2 weeks delivery time
-
+
The MARCO UP1/AC flexible impeller pump is a 230V electric self-priming unit rated for 30 L/min (free discharge) with a cut-off pressure of 1 bar. It features 1/2 inch connections (12.7 mm) with a 1/2 inch BSPP port specification and draws 3.3 A. The pump uses a nickel-plated brass housing, a stainless steel shaft, FKM seals, and an NBR O-ring, is reversible, self-primes up to 1.5 m, and measures 326 x 195 x 142 mm (H x W x L) with a shipping weight of 8.90 kg.
- Description
- Ask a Question
-

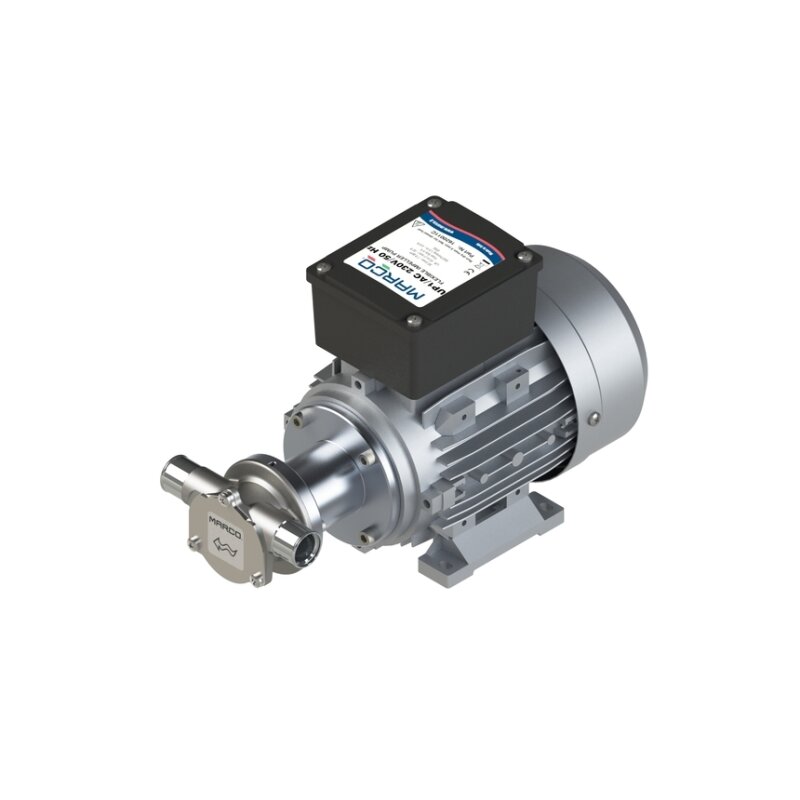

UP1/AC Reversible Impeller Pump (230V)
The MARCO 1620011C UP1/AC is a self-priming electric flexible impeller pump designed for fluid transfer. It provides high flow at free discharge and includes components intended for electrical noise suppression and protected cable entry.
Technical Specifications
Flow Rate (Free Discharge) 30 L/min Cut-Off Pressure 1 bar Voltage 230V Current Consumption 3.3 A Self-Priming Up to 1.5 m Connection (Scope of Delivery) 1/2 inch (12.7 mm) Connection (Port) 1/2 inch BSPP Dimensions (H x W x L) 326 x 195 x 142 mm Housing Material Nickel-Plated Brass Shaft Material Stainless Steel Seal Material FKM O-Ring Material NBR Impeller Type Flexible Nitrile Rubber Reversible Yes Certificates (Known) ISO 8849; ISO 8846 Shipping Weight 8.90 kg Brand MARCO Product Portfolio Impeller Pumps
Features
- 30 L/min flow rate at free discharge (without back pressure)
- Self-priming up to 1.5 m
- Reversible operation
- Nickel-plated brass housing with stainless steel shaft
- FKM seals with NBR O-ring
Product Details
- Supplied with brush holder with EMI filter, watertight cover, and cable entry
- Available with either an integrated on/off switch or a 3-position switch
- Material compatibility should be checked for the pumped liquid before operation
-
