ID
1317290
$ 3,012.35
1-2 weeks delivery time
-
+
The Zenit APE Pump 200/2/G50H A0CT 400V 60H is a high-pressure submersible centrifugal pump built for maritime environments. It features a cast iron open impeller and housing, a dry motor with built-in thermal safeguard, and handles contaminated water with particles up to 7 mm. Operating at 400 V AC and 60 Hz, it delivers flow rates up to 27,000 liters per hour at 10 meters head and has a maximum discharge head of 24.9 meters.
- Description
- Ask a Question
-

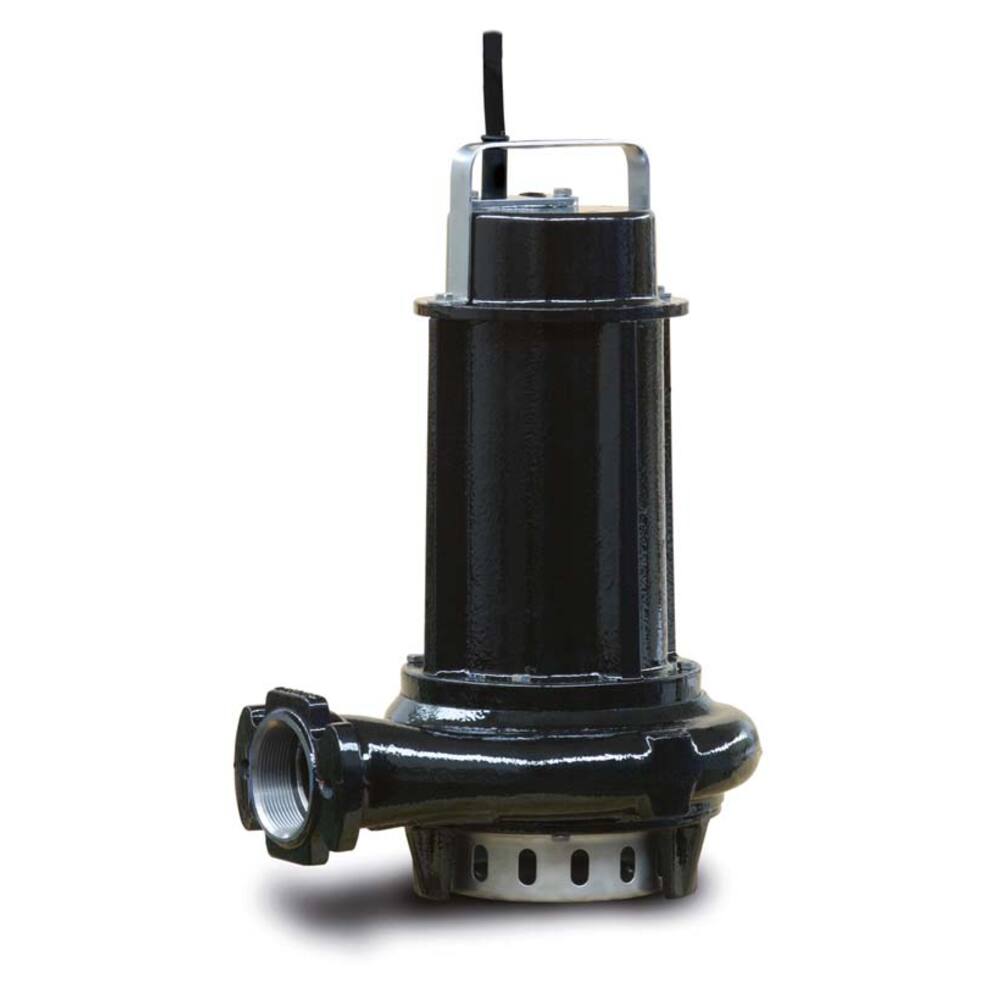

Zenit APE Pump 200/2/G50H A0CT 400V 60H
Designed for high pressure and submersion, this pump excels in maritime environments.
- Type: APE
- Colour: black
- Pump type: fully submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: built-in thermal safeguard
- Shaft seal: double carbon on ceramic mechanical seal separated by oil chamber and NBR rubber lip seal
- Maximum submersion depth: 20 metres
- Impeller material: cast iron
- Impeller housing material: cast iron
- Motor housing material: cast iron
- Pump shaft material: Stainless steel 304
- Suitable liquids: contaminated water
- Performance:
- 10 m head: 27,000 litres/hour
- 15 m head: 21,000 litres/hour
- 20 m head: 13,200 litres/hour
- Minimum pumping depth: 75 mm
- Connection: 2" internal thread
- Dimensions: diameter 285 mm (excluding knee), height 410 mm
- Weight: 18 kg
- Electrical specs: 400 V, 3.8 A
- Shaft power: 1.7 kW, 2.26 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 91.22.633
- Pipe diameter pressure: 2"
- Pipe diameter suction: -
- Medium: Water
- Particle size: 7 mm
- Max discharge head: 24.9 m
- Voltage: 400 V
- Current: AC
- Frequency: 60 Hz
- Protection class: IP68
- ATEX certified: No
- Separate float switch: No
- Free flow: 32,400 L/hour
- Capacity at 5 m: 31,800 L/hour
-
