ID
1317288
$ 2,408.14
1-2 weeks delivery time
-
+
The Zenit APE Pump 200/2/G50H A0CT 400V 50HZ is a durable high-pressure submersible pump for seagoing shipping, featuring a cast iron open impeller and housing, a dry motor with inbuilt thermal safeguard, and handling contaminated water with particles up to 7 mm. It operates at 400 V AC, pumps down to 75 mm, delivers flow rates up to 27,000 liters per hour at 10 meters head, and has a maximum discharge head of 24.9 meters.
- Description
- Ask a Question
-

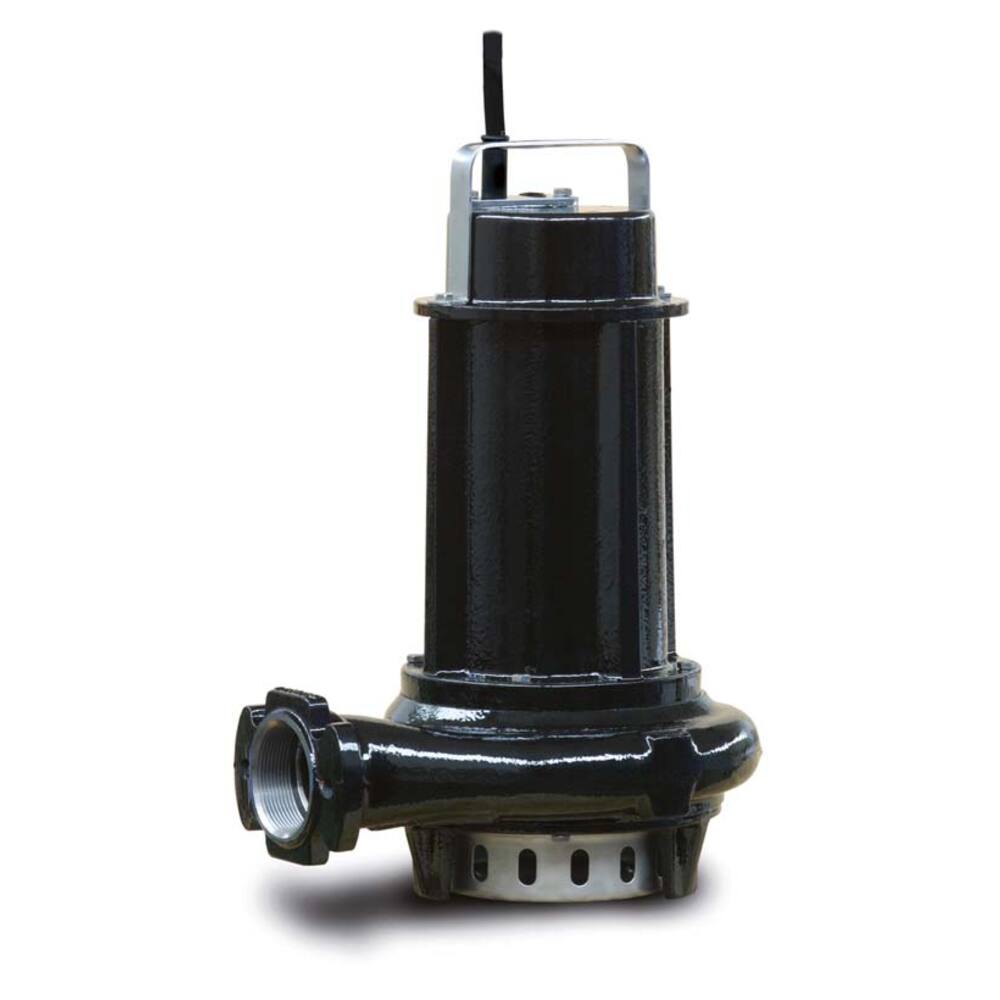

Zenit APE Pump 200/2/G50H A0CT 400V 50HZ
This high-pressure submersible pump, ideal for seagoing shipping, features durable construction and efficient performance.
- Type: APE
- Colour: black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double carbon on ceramic mechanical seal separated by oil chamber and NBR rubber lip seal
- Maximum submersion depth: 20 metres
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material motor housing: cast iron
- Material pump shaft: Stainless steel 304
- Suitable liquids: contaminated water
- Flow rates:
- 10 metres head: 27,000 litres per hour
- 15 metres head: 21,000 litres per hour
- 20 metres head: 13,200 litres per hour
- Minimum pumping diameter: 75 mm
- Connection: 2" internal thread
- Dimensions: diameter 285 mm (without knee), height 410 mm
- Weight: 18 kg
- Amperage: 400 V 3.8 A
- Shaft power: 1.7 kW, 2.26 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Product code: 91.22.533
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 7 mm
- Max discharge head: 24.9 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 32,400 L/hour
- Capacity at 5 meter: 31,800 L/hour
-
