ID
1317289
$ 3,139.84
1-2 weeks delivery time
-
+
The Zenit APE Pump 200/2/G50H A0CM 230V 60H is designed for high-pressure submersion in seagoing shipping applications. It features a cast iron open impeller and housing, a dry motor with inbuilt thermal safeguard, and handles contaminated water with particles up to 7 mm. Operating at 230 V AC and 60 Hz, it delivers flow rates up to 27,000 liters per hour at 10 meters head and has a maximum discharge head of 24.9 meters.
- Description
- Ask a Question
-

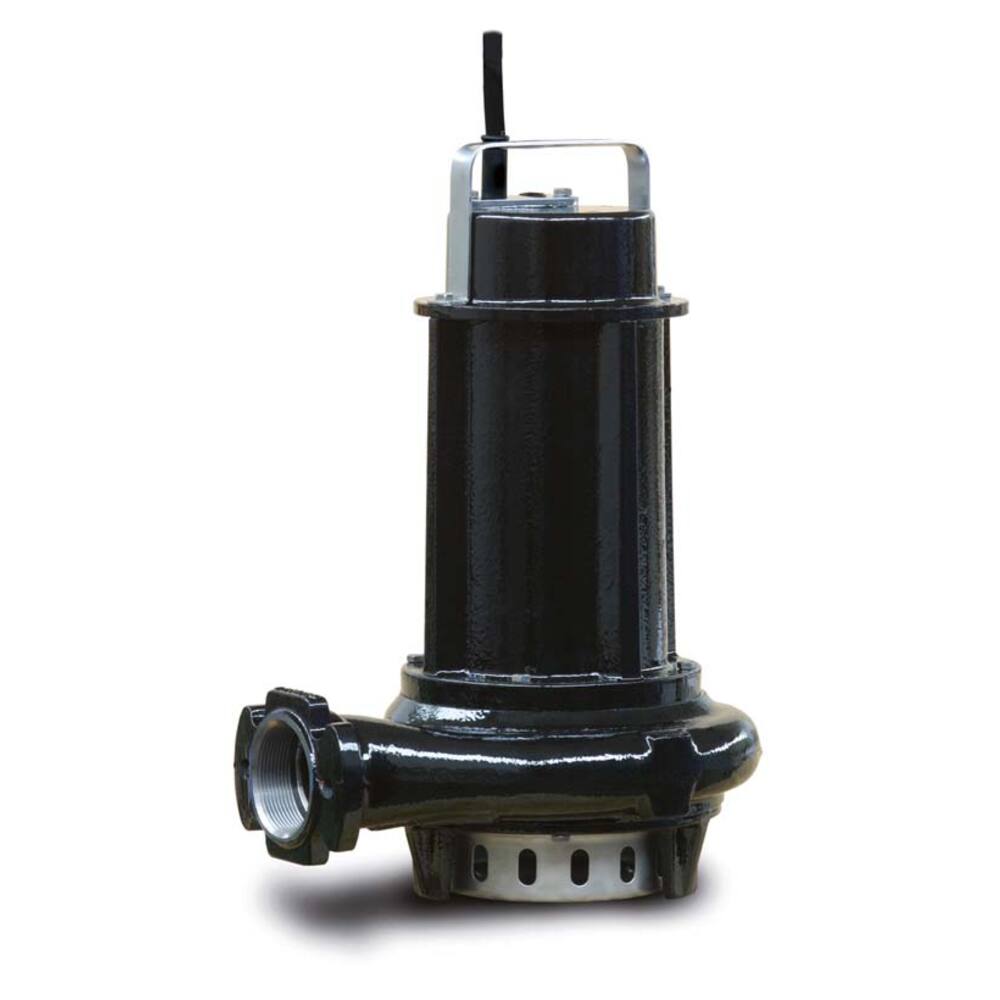

Zenit APE Pump 200/2/G50H A0CM 230V 60H
Designed for high-pressure submersion, this pump is well suited for seagoing shipping applications, offering reliable performance.
- Type: APE
- Colour: black
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double carbon on ceramic mechanical seal separated by oil chamber and NBR rubber lip seal
- Maximum submersion depth: 20 metres
- Material impeller: cast iron
- Material impeller housing: cast iron
- Material motor housing: cast iron
- Material pump shaft: Stainless steel 304
- Suitable liquids: contaminated water
- Flow rates:
- 10 metres head: 27,000 litres per hour
- 15 metres head: 21,000 litres per hour
- 20 metres head: 13,200 litres per hour
- Minimum pumping diameter: 75 mm
- Connection: 2" internal thread
- Dimensions: diameter 285 mm (without knee), height 410 mm
- Weight: 18 kg
- Amperage: 230 V, 10.6 A
- Shaft power: 1.7 kW, 2.26 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug; separate 230 Volt condensor installation required
- Product code: 91.22.631
- Pipe diameter pressure: 2"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 7 mm
- Max discharge head: 24.9 m
- Voltage: 230 V
- Current: AC
- Frequency: 60 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 32,400 L/hour
- Capacity at 5 meter: 31,800 L/hour
-
