The Zenit ATEX DRG Pump 300/2/G65V 400V is a high-capacity grey submersible centrifugal pump for bilge water pumping on ADN vessels. It features a dry motor, single-channel impeller, and a drive lube seal system with wear-resistant silicon carbide seals. Suitable for contaminated water with solids up to 35 mm, it operates at 400 V with ATEX certification and provides a free flow rate of 85,000 liters per hour with a maximum discharge head of 20 meters.
- Description
- Ask a Question
-

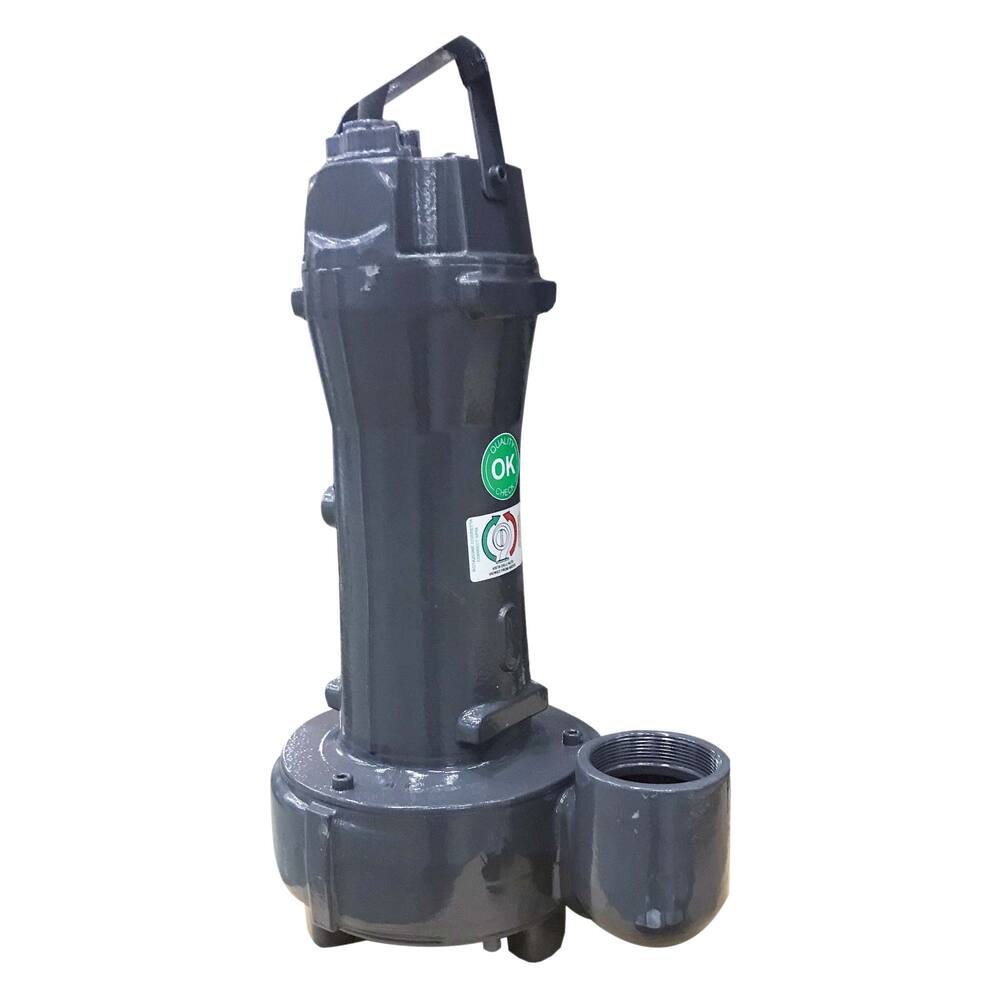

Zenit ATEX DRG Pump 300/2/G65V 400V
This grey submersible centrifugal pump delivers enhanced capacity for pumping bilge water in ADN vessels, with durable materials and safety features.
- Type: DRG
- Colour: Grey
- Pump type: Fully submersible centrifugal pump
- Impeller type: Single-channel
- Motor type: Dry motor
- Maximum submersion depth: 5 metres
- Fuse requirement: Motor safeguarding switch for 400 V necessary in cable
- Shaft seal: Drive lube seal system with oil chamber, two wear-resistant silicon carbide on silicon carbide seals and extra lip seal at motor bearing
- Impeller material: Cast iron EN-GJL 250
- Impeller housing material: Cast iron EN-GJL 250
- Motor housing material: Cast iron EN-GJL 250
- Pump shaft material: Stainless steel AISI 431
- Suitable liquids: Contaminated water containing solids, max temperature +40°C
- Insulation class: IP68
- Voltage: 400 V three phase
- ATEX certifications: II 2G, Ex db IIB T4 Gb, Ex h IIB T4 Gb
- Performance:
- At 10 metres head: 48,000 litres/hour
- At 15 metres head: 22,000 litres/hour
- At 18 metres head: 6,000 litres/hour
- Minimum pumping level: 70 mm
- Maximum particle size: 35 mm
- Connection: 2.1/2" internal thread
- Dimensions: Diameter 327 mm (including knee), Height 605 mm
- Weight: 42.2 kg
- Electrical specs:
- Amperage: 4.6 A
- Shaft power: 2.2 kW (2.93 hp), 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Voltage: 400 V, AC, 50 Hz
- Product code: 91.69.473
- Pipe diameter pressure: 2.1/2"
- Pump type: Submersible pump
- Medium handled: Water with coarse components
- Discharge head max: 20.0 m
- Protection class: IP68
- Free flow rate: 85,000 L/hour
- Capacity at 5 meters: 76,000 L/hour
-
