ID
1317293
$ 3,913.44
1-2 weeks delivery time
-
+
The Zenit ATEX DRG Pump 250/2/G65V 400V is a robust grey submersible centrifugal pump intended for bilge water removal on ADN vessels. It has a dry motor, single-channel impeller, and a drive lube seal system with silicon carbide seals. It handles contaminated water with solids up to 30 mm and operates at 400 V with ATEX certification. The pump delivers up to 75,000 liters per hour free flow with a maximum discharge head of 18 meters.
- Description
- Ask a Question
-

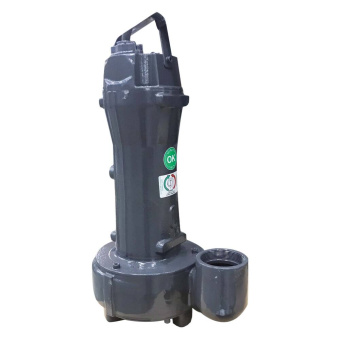

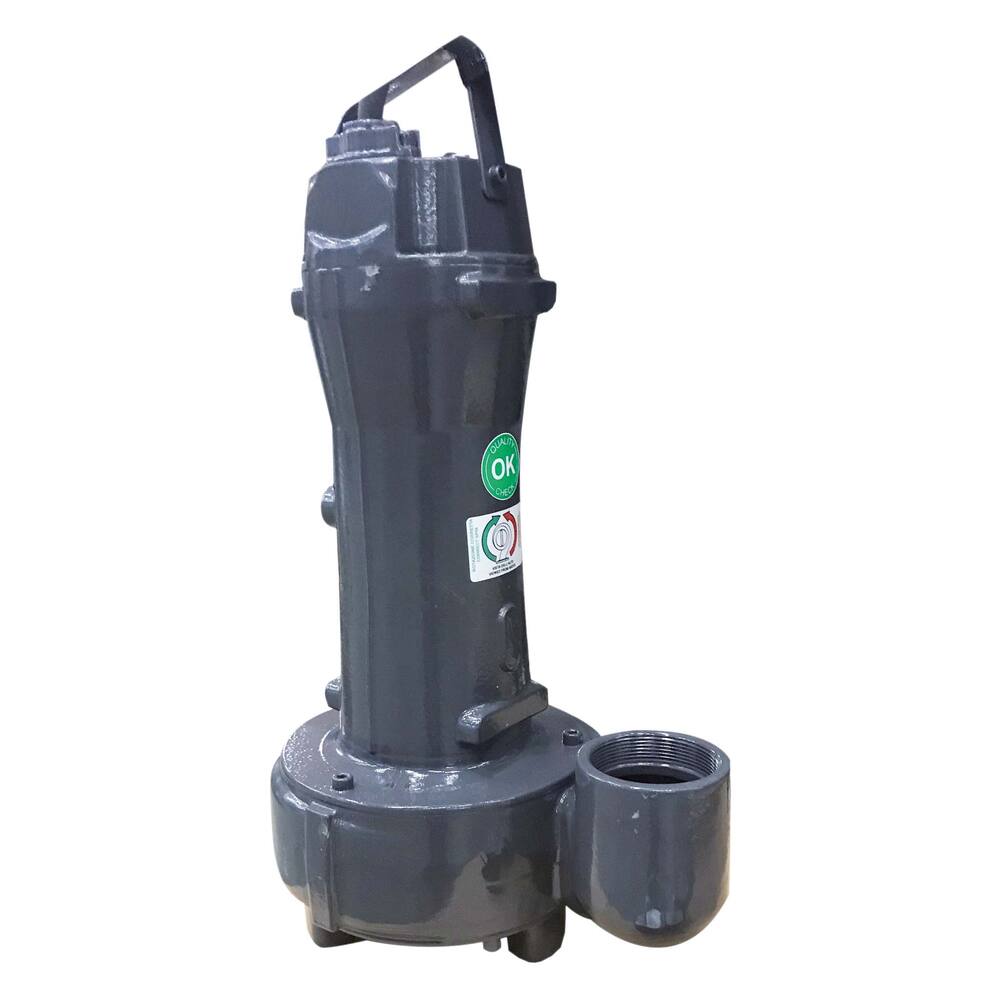

Zenit ATEX DRG Pump 250/2/G65V 400V
This grey submersible centrifugal pump is designed specifically for removing bilge water on ADN vessels with reliable performance and robust construction.
- Type: DRG
- Colour: Grey
- Pump type: Fully submersible centrifugal pump
- Impeller type: Single-channel
- Motor type: Dry motor
- Maximum submersion depth: 5 metres
- Fuse requirement: Motor safeguarding switch for 400 V needed in cable
- Shaft seal: Drive lube seal system with oil chamber and 2 silicon carbide shaft seals plus extra lip seal at motor bearing
- Impeller material: Cast iron EN-GJL 250
- Impeller housing material: Cast iron EN-GJL 250
- Motor housing material: Cast iron EN-GJL 250
- Pump shaft material: Stainless steel AISI 431
- Suitable liquids: Contaminated water with solids, max temperature +40°C
- Insulation class: IP68
- ATEX certifications: II 2G, Ex db IIB T4 Gb, Ex h IIB T4 Gb
- Performance:
- At 10 metres head: 37,000 litres/hour
- At 15 metres head: 10,000 litres/hour
- Minimum pumping level: 70 mm
- Maximum particle size: 30 mm
- Connection: 2.1/2" internal thread
- Dimensions: Diameter 327 mm (including knee), Height 581 mm
- Weight: 33.0 kg
- Electrical specs:
- Amperage: 3.7 A
- Shaft power: 1.8 kW (2.4 hp), 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug
- Voltage: 400 V, AC, 50 Hz
- Product code: 91.69.463
- Pipe diameter pressure: 2.1/2"
- Pump type: Submersible pump
- Medium handled: Water with coarse components
- Discharge head max: 18.0 m
- Protection class: IP68
- Free flow rate: 75,000 L/hour
- Capacity at 5 meters: 64,000 L/hour
-
