ID
1317291
$ 2,743.43
1-2 weeks delivery time
-
+
The Zenit ATEX DRG Pump 75/2/G40 230V is a grey submersible centrifugal pump designed for bilge water pumping on ADN vessels. It has a dry motor and single-channel impeller, suitable for contaminated water with solids up to 10 mm and temperatures up to 40°C. It features cast iron construction, ATEX certification for hazardous environments, and operates at 230 V with a maximum discharge head of 10.5 meters, delivering 21,600 liters per hour free flow.
- Description
- Ask a Question
-

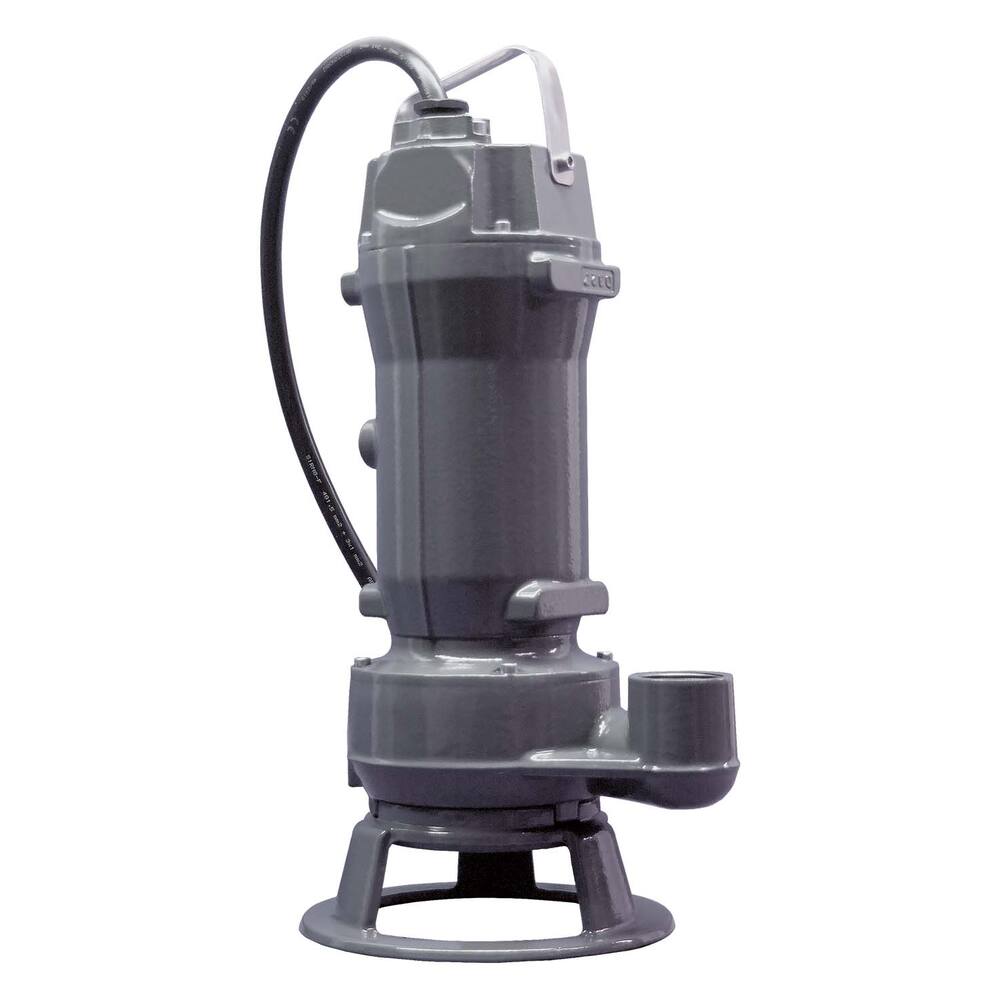

Zenit ATEX DRG Pump 75/2/G40 230V
This grey submersible centrifugal pump is intended for pumping out bilge water on ADN vessels. It features a dry motor and a single-channel impeller, designed to handle contaminated water with solids at temperatures up to +40°C. It includes ATEX certification for hazardous environments.
- Type: DRG
- Colour: grey
- Impeller type: single-channel impeller
- Motor type: dry motor
- Submersion depth: 5 metres
- Fuse: for 400 V, a motor safeguarding switch in the cable is necessary
- Shaft seal: drive lube seal system with oil chamber and 2 silicon carbide shaft seals plus extra lip seal at motor bearing
- Material impeller: cast iron EN-GJL 250
- Material impeller housing: cast iron EN-GJL 250
- Material motor housing: cast iron EN-GJL 250
- Material pump shaft: Stainless steel AISI 431
- Liquids handled: contaminated water with solids, max temperature +40°C
- Insulation class: IP68
- ATEX: II 2G, Ex db IIB T4 Gb, Ex h IIB T4 Gb
- 10 metre head flow: 2,000 litres per hour
- Pumps down to: 70 mm maximum
- Connection: 1.1/2" internal thread
- Dimensions: diameter 255 mm (including knee), height 488 mm
- Weight: 24.0 kg
- Amperage: 230 V, 4.2 A
- Shaft power: 0.55 kW, 0.7 hp, 2900 rpm
- Cable: 10 metre neoprene H07RN-F without plug

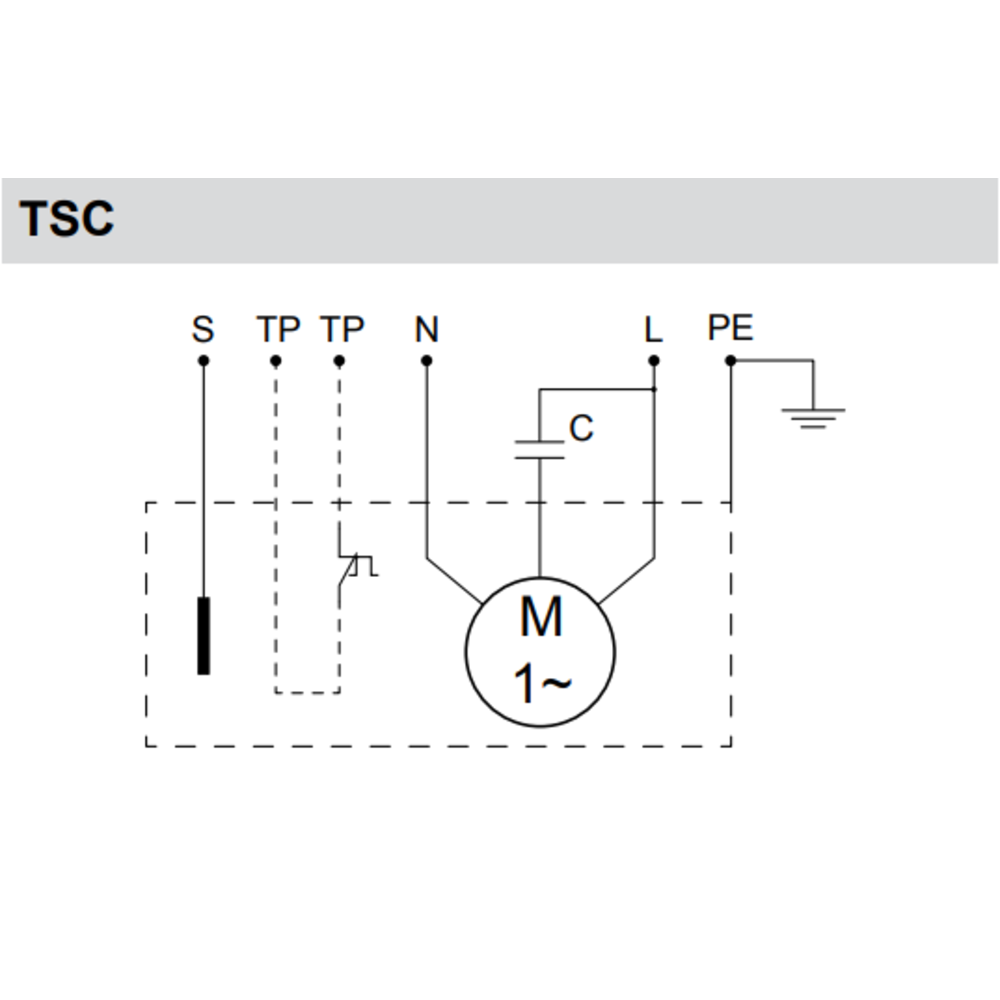

- Note: Separate 230 V condenser must be installed outside explosion zone or in a special cabinet
- Product code: 91.69.421
- Pipe diameter pressure: 1.1/2"
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 10.5 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Separate float switch: No
- Free flow (L/Hour): 21,600
- Capacity at 5 metre depth (L/hour): 15,600
-
