ID
1316927
1-2 weeks delivery time
Our managers will contact you and clarify the terms of the order
The Toilet 120 Black Water Pump operates with a powerful 400V motor designed to handle contaminated water containing solids, higher viscosity, or heavier specific gravity liquids. It efficiently pumps black water tanks and faeces without coarse or hard parts, featuring a self-priming centrifugal membrane pump with santoprene membrane and plastic housing. It has a flow capacity of up to 7,200 liters per hour and a maximum discharge head of 7 meters, weighing approximately 24 kg.
- Description
- Ask a Question
-

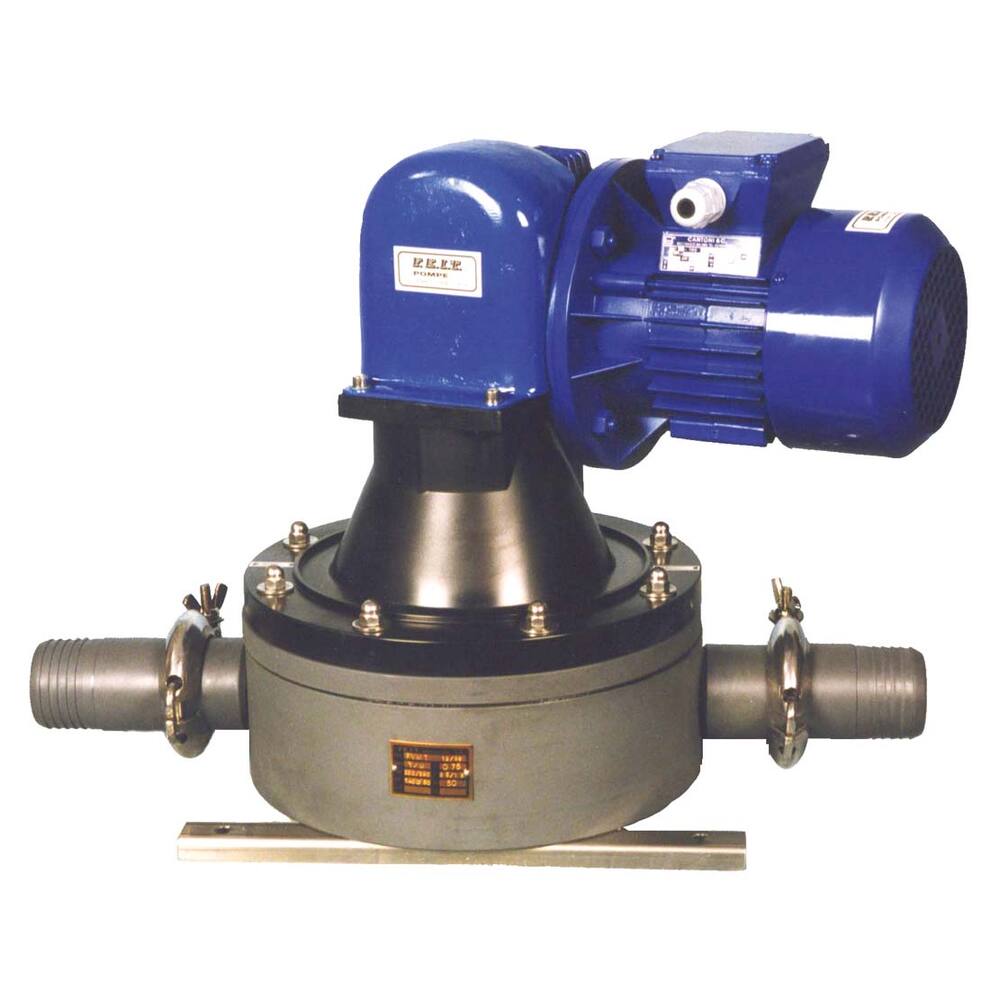

Toilet 120, Black Water Pump 400V
Featuring a highly powerful motor, this pump is suited for contaminated water with solids, higher viscosity, or heavier specific gravity liquids. It efficiently pumps black water tanks and faeces without coarse or hard parts.
- Type: TOILET
- Colour: black
- Pump type: self-priming centrifugal pump
- Impeller type: membrane
- Motor type: short circuit motor with 400 volt
- Fuse: none
- Shaft seal: n/a
- Material membrane: santoprene
- Material pump housing: plastic
- Material pump shaft: n/a
- Liquids: water containing solids, higher viscosity, or higher specific gravity
- Dimensions (LxWxH): approx. 580 x 300 x 420 mm
- Weight: approx. 24 kg
- Amperage: 400 V, 2.3 A
- Shaft power: 0.55 kW, 0.7 HP, 1500 rpm
- Product code: 92.91.840
- Suction head: 4.0 m
- Pipe diameter pressure: 40 mm Adaptor
- Pipe diameter suction: 40 mm Adaptor
- Pump type: Membrane pump
- Medium: Water, Water with oil (Sludge)
- Particle size: 30 mm
- Discharge head Max.: 7.0 m
- Voltage: 400 V
- Current: AC
- Frequency: 50 Hz
- Fuel: -
- Protection class: IP68
- ATEX: No
- Separate float switch: -
- Free flow (L/Hour): 7200
- Capacity 5 meter (L/hour): 450
-
