ID
1316931
$ 223.53
1-2 weeks delivery time
-
+
The Condensate Drain Set VCMA-20ST is an automatic centrifugal vertical pump designed to handle condensate and waste water from equipment like air conditioners, humidifiers, ice machines, and gas stoves. Made of polypropylene and stainless steel components, it handles clean waste water without dirt or abrasive particles, with flow rates up to 5 litres per minute at no head and a maximum discharge head of 5 metres. It includes a reservoir with level control and high-level alarm, weighs 2.9 kg, and operates on 230 V AC with 25 W power.
- Description
- Ask a Question
-

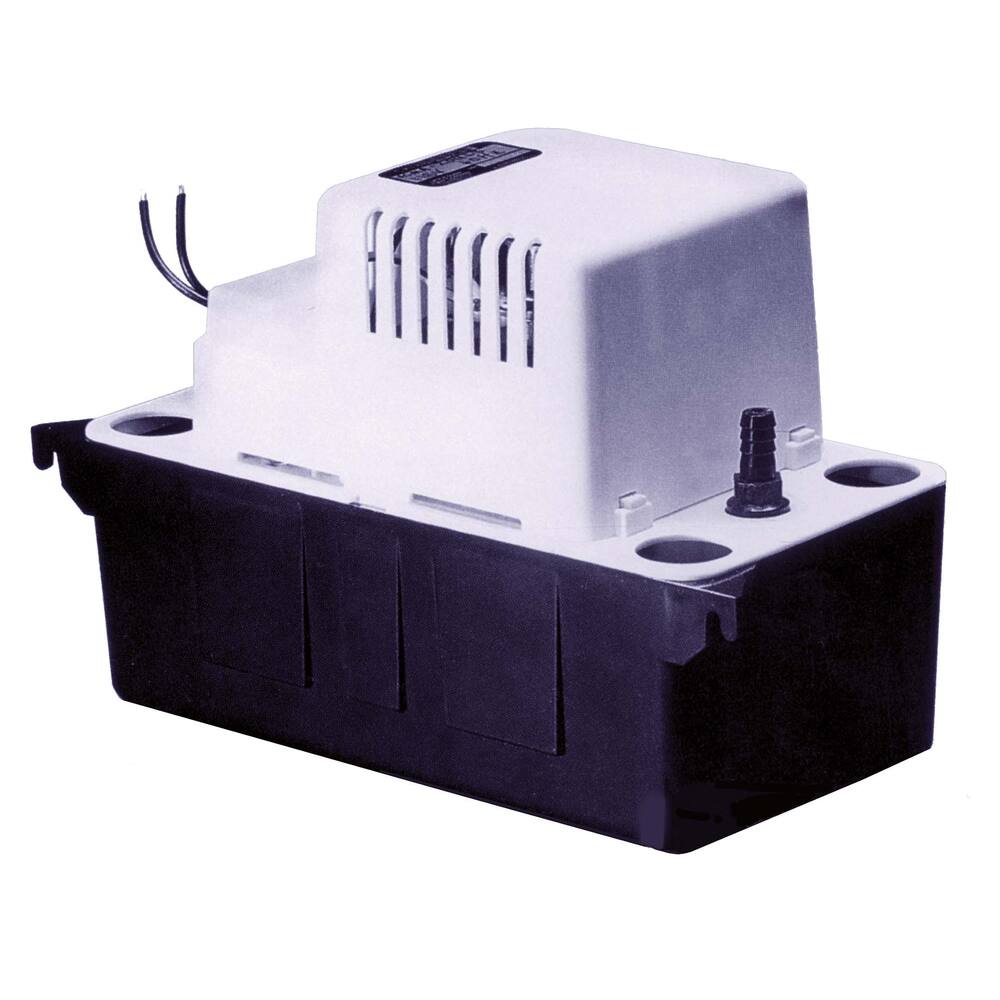

Condensate Drain Set VCMA-20ST
This automatic drain set efficiently handles condensate and waste water from various equipment such as air conditioning units, humidifiers, ice machines, drinks machines, and high-efficiency gas stoves. It features a reservoir with level control and a high-level alarm switch for reliable operation.
- Type: VCMA-20ST
- Colour: blue/white
- Pump type: centrifugal/vertical pump
- Impeller type: open impeller
- Motor type: induction motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: N.A.
- Material impeller: polypropylene
- Material pump housing: polypropylene
- Material pump shaft: stainless steel
- Material reservoir: polypropylene
- Liquids handled: waste water without dirt or abrasive particles
- Flow rates:
- No head: 5.0 litres per minute
- 1.5 metres head: 3.5 litres per minute
- 2.5 metres head: 2.4 litres per minute
- 4.5 metres head: 1.3 litres per minute
- Particle size: zero
- Pumps down to: N.A.
- Connection inlet: 2 x 28 mm openings
- Connection discharge: 3/8" hose adaptor with inbuilt non-return valve
- Dimensions (LxWxH): 260 x 125 x 180 mm
- Weight: 2.9 kg
- Amperage: 0.6 A
- Shaft power: 25 W
- Cable length: 1.8 metres without plug
- Reservoir capacity: approx. 1.9 litres
- Product code: 96.01.120
- Pump type: Cistern pump
- Maximum discharge head: 5.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50/60 Hz
- Fuel: -
- Protection class: -
- ATEX certified: No
- Separate float switch: -
- Free flow: 300 L/hour
-
