ID
1316928
$ 948.59
1-2 weeks delivery time
-
+
The Parmax 3 12V is a compact pressurized water system designed for water sports applications, featuring a double-action membrane pump with 780 L/h capacity and a 20-liter pressure vessel. Operating on 12V DC power with brushless motor technology, it provides consistent water pressure for geyser and tapping point systems with automatic on/off switching between 1.3-2.4 bar.
- Description
- Ask a Question
-

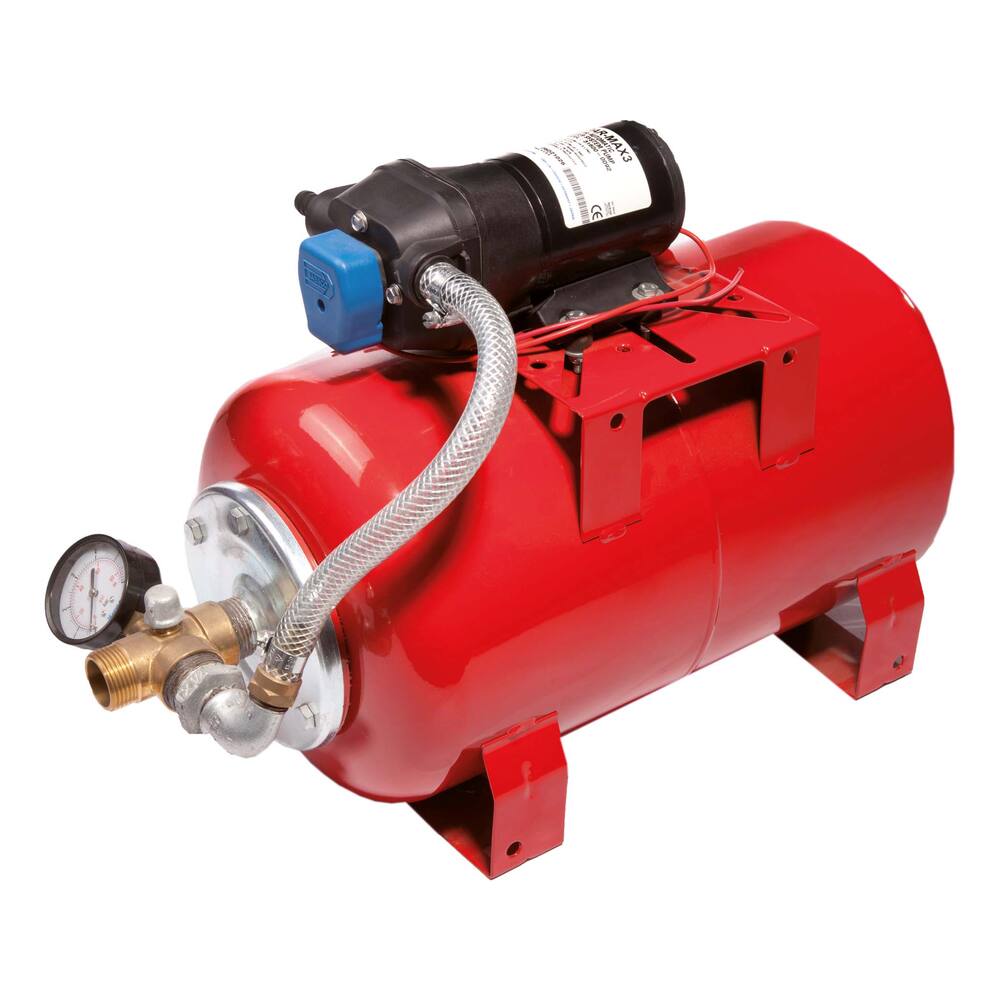

Pressurized Water System Parmax 3 12V
This water system is designed for water sports enthusiasts, equipped to deliver reliable and consistent pressure. It includes a pressure vessel, non-return valve, manometer, pressure switch, and an electric pump that is resistant to dry running.
- Type: Par-Max
- Colour: black
- Pump type: membrane pump (double action)
- Motor type: brush motor (permanent magnet)
- Fuse: recommended built in thermal safety 12 V: 15 A
- Shaft seal: N.A.
- Material membrane: Santoprene
- Material valves: Santoprene
- Material pump housing: glass fibre reinforced polypropylene
- Liquids: clean water without floating solids and without oil or oil residues
- Capacity: 780 litres per hour or 13 litres per minute
- Type pressure vessel: horizontal 20 l membrane vessel with approx. 8 litres useful water capacity
- Switch on pressure: 1.3 bar
- Switch off pressure: 2.4 bar
- Dimensions: lxwxh = 650 x 350 x 450 mm
- Weight: 11 kg
- Amperage: 6.0 A at 0.7 bar
- Shaft power: 50 W
- Product code: 97.11.510
- Number of tapping points: Geyser and 2 tapping points
- Suction head: 1.2 m
- Pipe diameter pressure: 1/2"
- Pipe diameter suction: 1/2"
- Pump type: Pressurized water
- Medium: Water
- Particle size: 2 mm
- Discharge head Max.: 24.0 m
- Voltage: 12 V
- Current: DC
- Protection class: IP68
- ATEX: No
- Free flow (L/Hour): 780
- Capacity 5 meter (L/hour): 780
-
