ID
1316930
$ 2,840.64
1-2 weeks delivery time
-
+
The DAB WACS system combines quiet pump operation with separate 8L vertical steel membrane vessel for drinking water applications. Operating at 3,500 L/h with 400V 3-phase power, its induction motor and stainless steel construction provide reliable water pressure control with 2.5-3.0 bar switching for geyser and four tapping points.
- Description
- Ask a Question
-

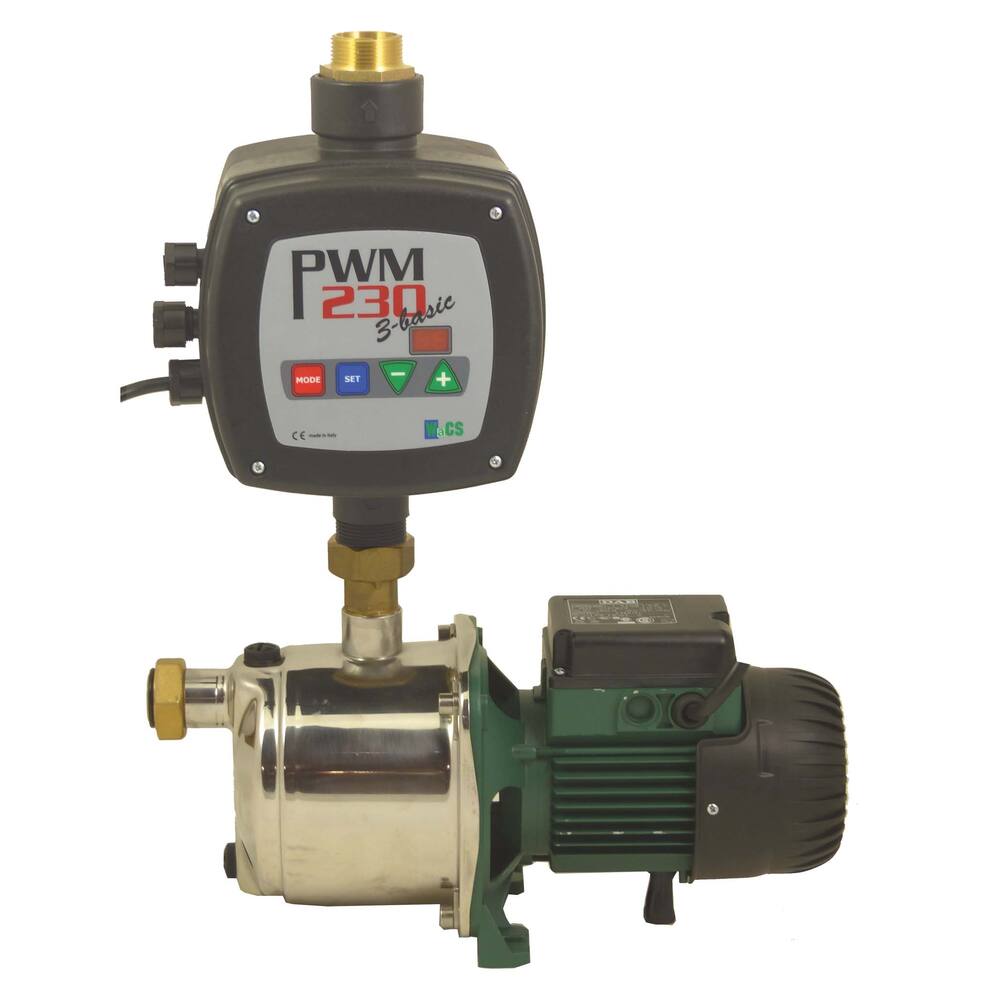

DAB Sensor Pressurized Water System WACS 0,8kW 230V + 8L Vertical Steel Membrane Vessel
This modern pressurized water system features a quiet pump designed specifically for drinking water applications. It is ideal for installation in compact spaces and operates by starting the pump when the tap is opened and stopping it when closed. The integrated frequency regulator maintains constant pressure according to water demand, reducing noise, vibration, energy consumption, and lowering operating and maintenance costs.
- Type: WACS
- Colour: dark green and stainless steel
- Pump type: self-priming centrifugal pump
- Impeller type: closed
- Motor type: induction motor
- Fuse: built-in thermal protection
- Seal: mechanical seal (ceramic on carbon)
- Material impeller: plastic
- Material pump housing: stainless steel
- Material pump shaft: stainless steel
- Liquids: clean water
- Suction head: 8.0 meters when using foot valve

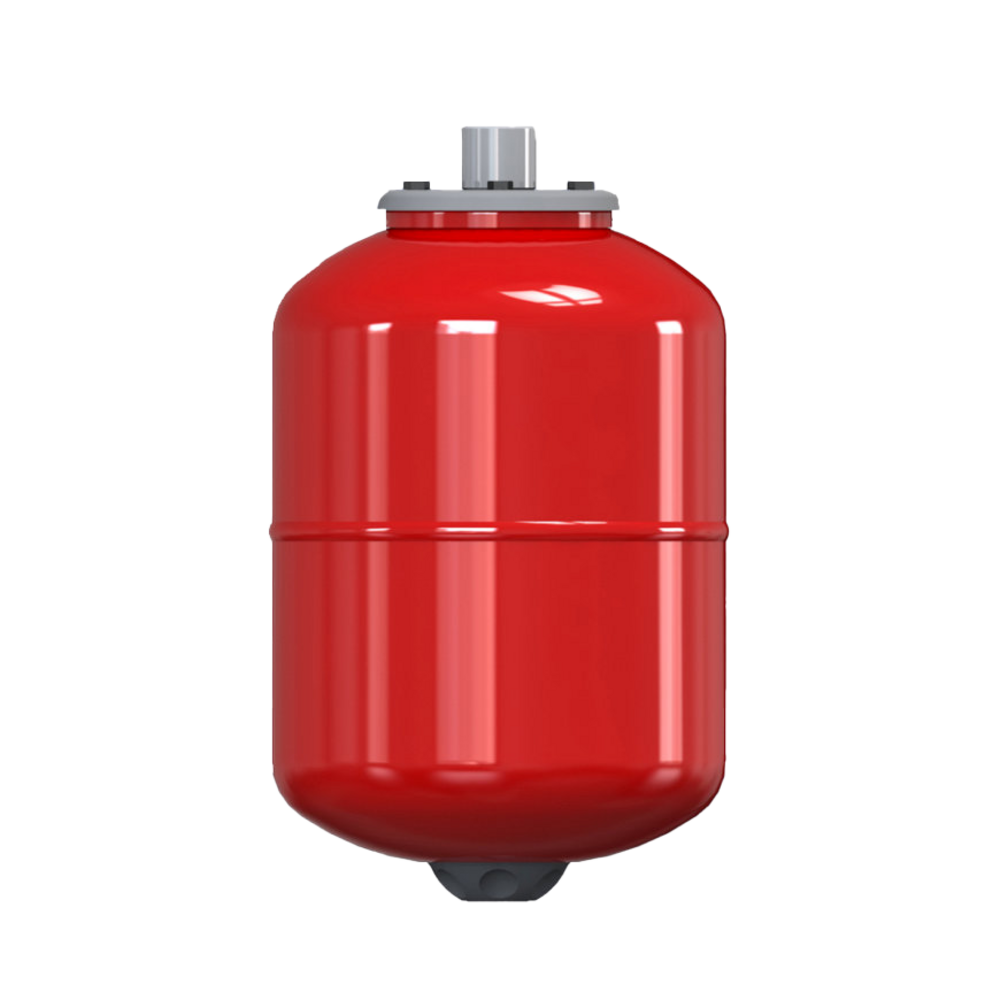

- Pressure tank: separately supplied vertical pressurized water system vessel with 8 litres membrane
- Switch-on pressure: 2.5 bar (3,500 litres per hour, default setting)
- Switch-off pressure: 3.0 bar
- Dimensions (LxWxH): 520 x 175 x 560 mm
- Weight: 13.0 kg
- Insulation class: IP55
- Shaft power: 0.87 kW, 1.16 hp, 3000 rpm
- Voltage: pump is 400 volt, 3x230V (3 phases)
- Product code: 97.33.708
- Number of tapping points: geyser and 4 tapping points
- Pipe diameter pressure and suction: 1"
- Pump type: pressurized water
- Medium: water
- Particle size: 2 mm
- Discharge head max.: 30.0 m
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- Free flow: 3500 L/hour
- Capacity at 5 meter: 3500 L/hour
-
