The Robo Submersible Pump RS-400 230V is a stainless steel cylinder pump suitable for shipping, fisheries, construction, and industrial dewatering tasks. It features an oil-filled motor, open impeller, and a three-part shaft seal system, pumping 6,000 liters per hour at 10 meters head with a maximum discharge head of 12 meters, and can handle contaminated water with solids and acidity up to 40°C.
- Description
- Ask a Question
-

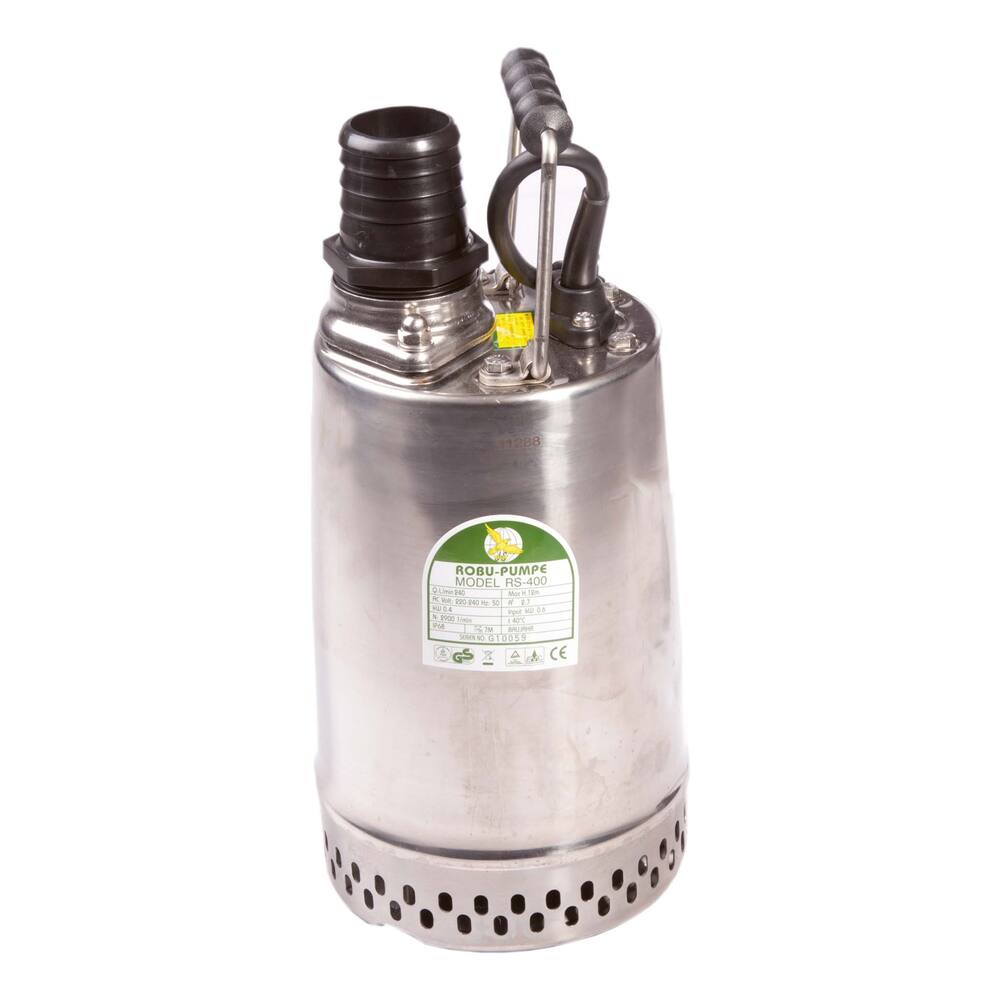

Robo Submersible Pump RS-400 230V
This modern stainless steel cylinder pump is suited for inland and seagoing shipping, fisheries, construction, industry, and dewatering tasks. It delivers professional quality at a reasonable price.
- Type: RS
- Colour: stainless steel
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: oil filled motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: three-part system with upper ceramic on carbon, oil chamber separated from silicon carbide on silicon carbide seal, plus extra lip seal on impeller side
- Maximum submersion depth: 10 metres
- Materials: impeller plastic; impeller housing cast iron; motor housing and pump shaft stainless steel
- Suitable liquids: contaminated water with solids and high acidity, max temperature 40°C
- Performance:
- 10 metres head: 6,000 litres per hour
- Maximum discharge head: 12.0 metres
- Pumps down to 45 mm liquid level
- Particle size: 6 mm
- Connection: 2" hose connection and 2" internal thread
- Dimensions: diameter 167 mm, height 370 mm
- Weight: 13 kg
- Electrical: 230 V, 3.8 A, shaft power 0.37 kW (0.50 hp), 2900 rpm
- Cable: 10 metre neoprene H07RN-F with earthed plug
- Product code: 90.20.542
- Pipe diameter pressure: 2"
- Maximum discharge head: 11.5 m
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow: 15000 L/hour
- Capacity at 5 metre head: 12000 L/hour
-
