The Pneumatic Drum Pump BP-10 is an air-powered plunger pump designed for fast liquid transfer from drums and vats in industrial environments, laboratories, and engine rooms. Built with galvanized steel construction, it handles various petroleum products and lubricating oils with capacities ranging from 2,520 L/h at 10m head to 360 L/h at 65m head, operating efficiently with 1.5-7.0 bar air pressure.
- Description
- Ask a Question
-

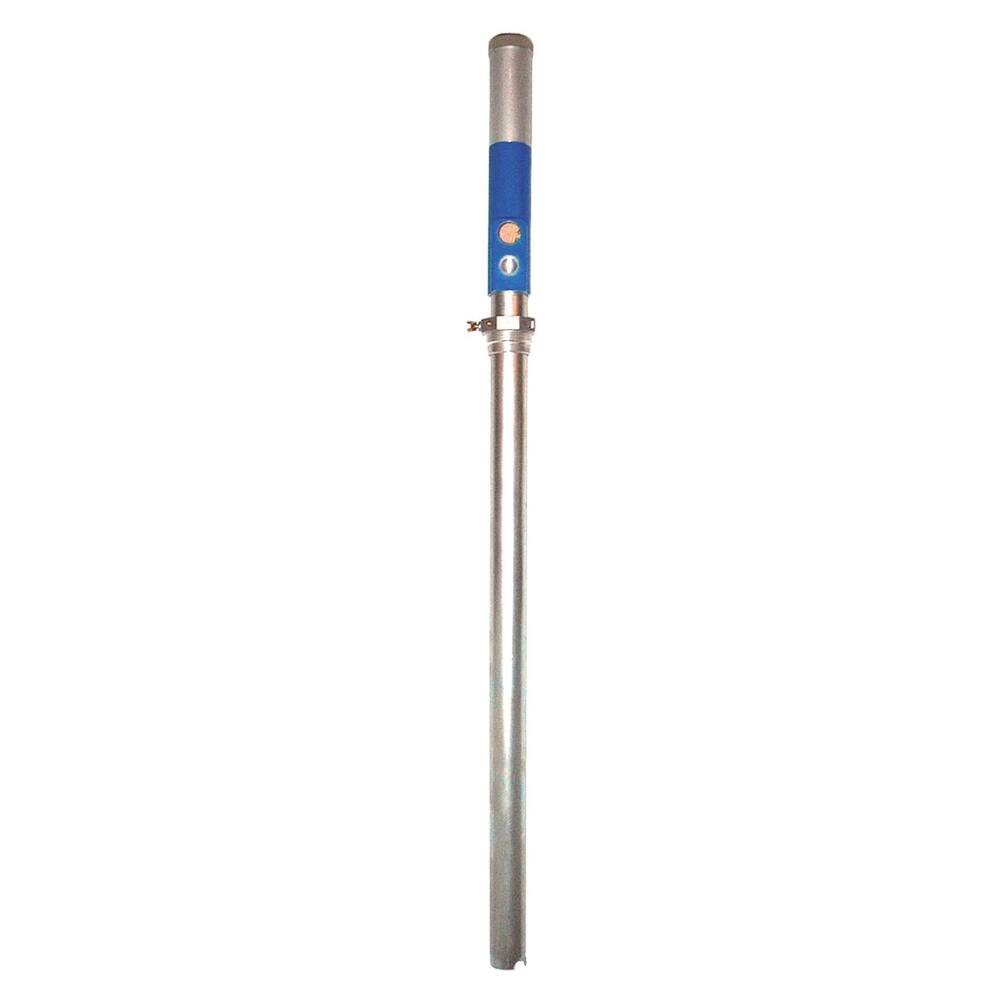

Pneumatic Drum Pump BP-10
Engineered for fast liquid transfer from vats, this pump is ideal for engine rooms, industrial settings, laboratories, and more.
- Type: BP
- Colour: galvanized steel
- Pump type: plunger pump
- Impeller type: plunger (piston)
- Motor type: air motor with 1/4" internal thread
- Shaft seal: O-ring
- Material piston, cylinder, and pump shaft: steel
- Material pump housing: galvanized steel
- Liquids handled: clean gas oil, kerosene, petroleum, lubricating oil (not petrol)
- Transmission ratio: 1:1
- Viscosity significantly affects capacity
- Capacities measured with water at various heads:
- 10 m head: 2,520 L/h
- 15 m head: 2,400 L/h
- 20 m head: 2,280 L/h
- 25 m head: 2,170 L/h
- 30 m head: 1,950 L/h
- 35 m head: 1,800 L/h
- 40 m head: 1,620 L/h
- 45 m head: 1,440 L/h
- 50 m head: 1,200 L/h
- 55 m head: 960 L/h
- 60 m head: 720 L/h
- 65 m head: 360 L/h
- Particle size max: approx. 2 mm, non-abrasive
- Minimum pumping depth: 10 mm
- Air supply: 1/4" internal thread
- Inlet: 910 mm steel suction pipe with drum connection
- Dimensions: diameter 85/50 mm, height 1177 mm
- Weight: 5.0 kg
- Air pressure: 1.5 to 7.0 bar
- Air consumption: 3.8 to 7 litres air per litre liquid pumped
- Product code: 96.40.852
- IMPA code: 591653
- Suction head: 0.9 m
- Pipe diameter pressure: 3/4"
- Pipe diameter suction: 2"
- Pump type: Barrel pump
- Mediums: Water, Gasoil, Lubricating oil
- Maximum discharge head: 66.0 m
- Free flow: 2700 L/Hour
- Capacity at 5 meter head: 2700 L/hour
-
