ID
1316757
$ 307.35
1-2 weeks delivery time
-
+
The City Pumps Speed 50M 230V is a small, economical submersible centrifugal pump offering higher power and greater discharge head than the Speed 30M models. It pumps clean and slightly contaminated water down to 14 mm and is ideal for inland shipping, roofing, tennis courts, ponds, and cellars. Operating at 230V, it has a maximum discharge head of 8.0 meters, a free flow rate of 13,200 liters per hour, and weighs 5.0 kg.
- Description
- Ask a Question
-

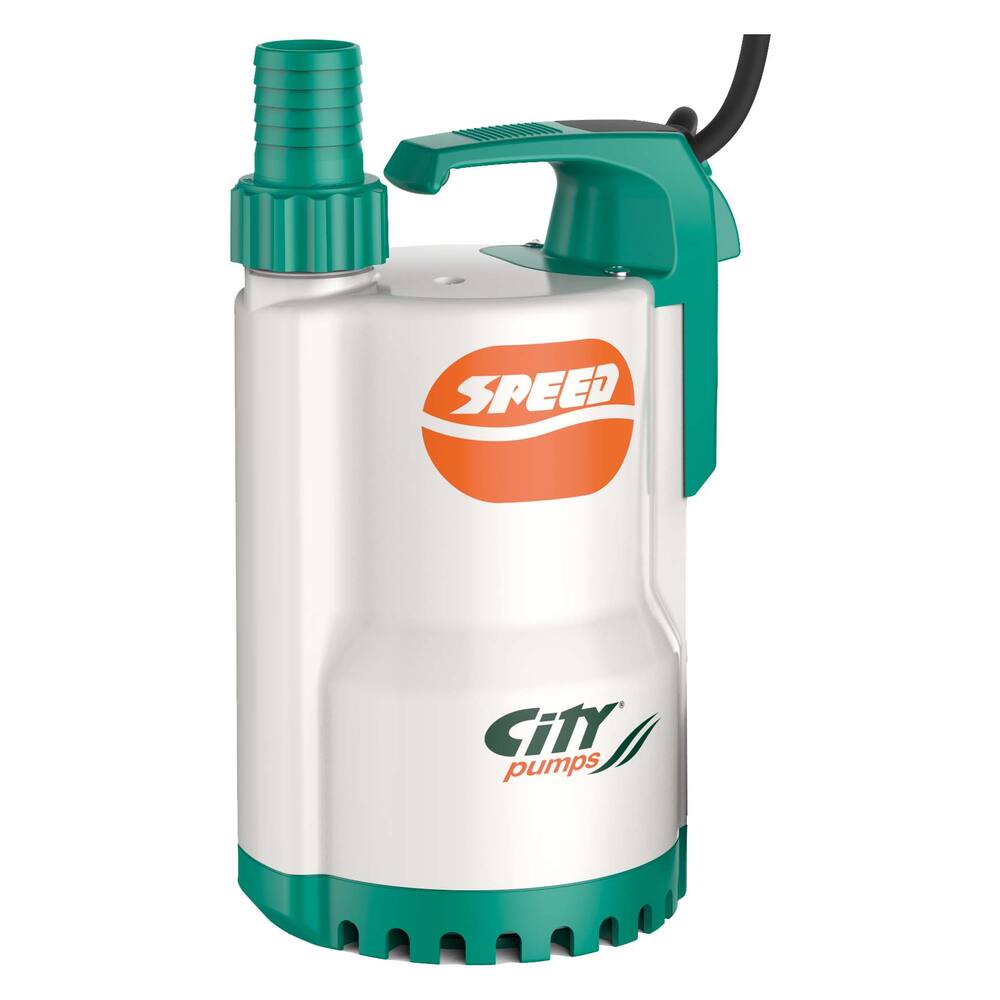

City Pumps Speed 50M 230V
This small and economical submersible pump is ideal for various applications such as inland shipping, roofing, tennis courts, ponds, and cellars. It offers a higher power output and greater discharge head compared to the Speed 30M models.
- Type: Speed
- Colour: white with green
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
- Submersion depth: 3 metres
- Material impeller: Noryl
- Material impeller housing: plastic
- Material motor housing: plastic
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean and slightly contaminated water, max temperature +40°C (+90°C for max 3 minutes)
- Insulation class: Class F, IP68
- Pumps down to: 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connections: 1.1/4" hose connection and 1.1/4" external thread
- Dimensions: diameter 152 mm, height 270 mm
- Weight: 5.0 kg
- Amperage: 2.0 A
- Shaft power: 0.37 kW, 0.5 hp, 2900 rpm
- Cable: 10 metre neoprene H05-RN-F with earthed plug
- Product code: 90.07.350
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 8.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 13200
- Capacity 5 meter (L/hour): 6350
-
