ID
1316756
$ 300.36
1-2 weeks delivery time
-
+
The City Pumps Speed 30MA with Ball Float 230V is an affordable submersible pump similar to the Speed 30M but includes a ball float switch for automatic operation. It is designed for clean and slightly contaminated water, pumping down to 14 mm, and is suitable for inland shipping, roofing, tennis courts, ponds, and cellars. The pump operates at 230V, has a maximum discharge head of 6.0 meters, and a free flow rate of 9600 liters per hour.
- Description
- Ask a Question
-

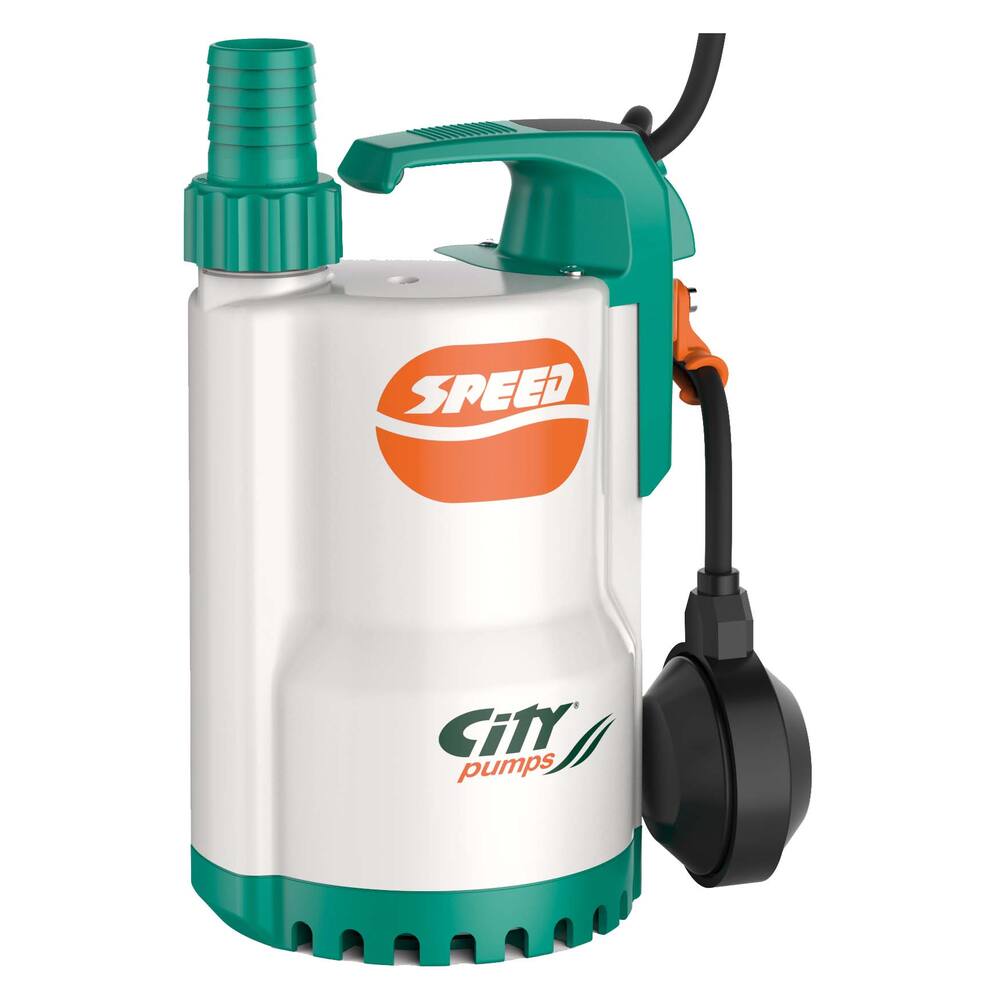

City Pumps Speed 30MA + Ball Float 230V
This affordable submersible pump is suitable for many tasks such as inland shipping, roofing, tennis courts, ponds, and cellars. It includes a ball float switch for automatic operation and shares the same robust construction as the Speed 30M model.
- Type: Speed
- Colour: white with green
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
- Submersion depth: 3 metres
- Material impeller: Noryl
- Material impeller housing: plastic
- Material motor housing: plastic
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean and slightly contaminated water, max temperature +40°C (+90°C for max 3 minutes)
- Insulation class: Class F, IP68
- Pumps down to: 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connections: 1" hose connection and 1 1/4" external thread
- Dimensions: diameter 152 mm, height 240 mm
- Weight: 4.1 kg
- Current: 1.3 A
- Shaft power: 0.25 kW, 0.33 hp, 2900 rpm
- Cable: 10 metre neoprene H05-RN-F with earthed plug
- Product code: 90.07.331
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 6.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes
- Free flow (L/Hour): 9600
- Capacity 5 meter (L/hour): 3000
-
