ID
1316760
$ 354.50
1-2 weeks delivery time
-
+
The City Pumps Speed 70MA + Ball Float 230V is an affordable and compact submersible pump ideal for inland shipping, roofing, tennis courts, ponds, and cellars. It includes a dry motor with thermal fuse, an open impeller, and a ball float for automatic operation, pumping clean or slightly contaminated water down to 14 mm with a maximum discharge head of 10.0 meters and a free flow rate of 15,600 liters per hour.
- Description
- Ask a Question
-

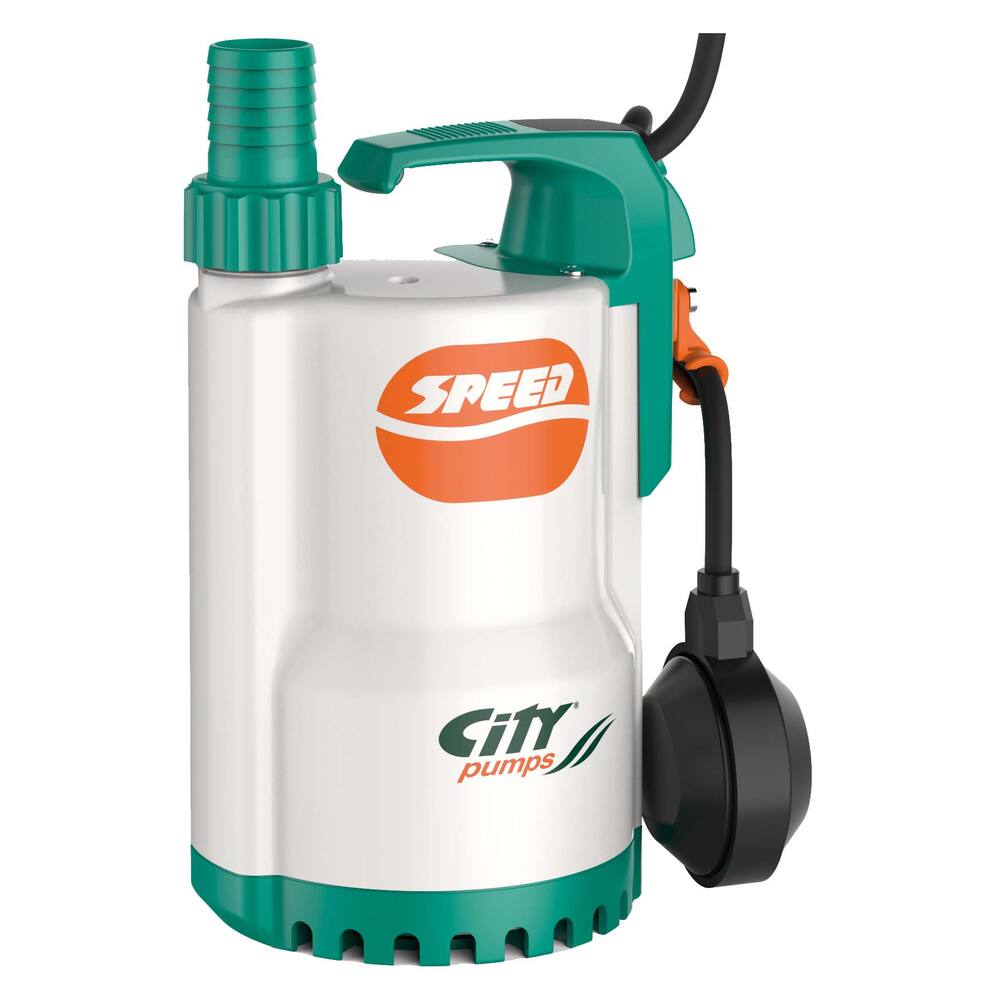

City Pumps Speed 70MA + Ball Float 230V
This affordable and compact submersible pump is ideal for diverse uses such as inland shipping, roofing, tennis courts, ponds, and cellars. It includes a dry motor with thermal fuse and an open impeller, plus a ball float for automatic operation.
- Type: Speed
- Colour: white with green
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
- Submersion depth: 3 metres
- Material impeller: Noryl
- Material impeller housing: plastic
- Material motor housing: plastic
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean and slightly contaminated water, max temperature +40°C (+90°C for max 3 minutes)
- Insulation class: Class F, IP68
- Pumps down to: 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connections: 1.1/4" hose connection and 1.1/4" external thread
- Dimensions: diameter 152 mm, height 290 mm
- Weight: 6.4 kg
- Amperage: 3.2 A
- Shaft power: 0.5 kW, 0.7 hp, 2900 rpm
- Cable: 10 metre neoprene H05-RN-F with earthed plug
- Product code: 90.07.371
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 10.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: Yes
- Free flow (L/Hour): 15600
- Capacity 5 meter (L/hour): 10200
-
