ID
1316755
$ 300.36
1-2 weeks delivery time
-
+
The City Pumps Speed 30M 230V is a compact and economical submersible centrifugal pump with an open impeller and dry motor, suitable for inland shipping, roofing, tennis courts, ponds, and cellars. It pumps clean and slightly contaminated water down to 14 mm and operates at 230V with a maximum discharge head of 6.0 meters and a free flow rate of 9600 liters per hour. The pump features a double ceramic carbon mechanical seal and weighs 4.1 kg.
- Description
- Ask a Question
-

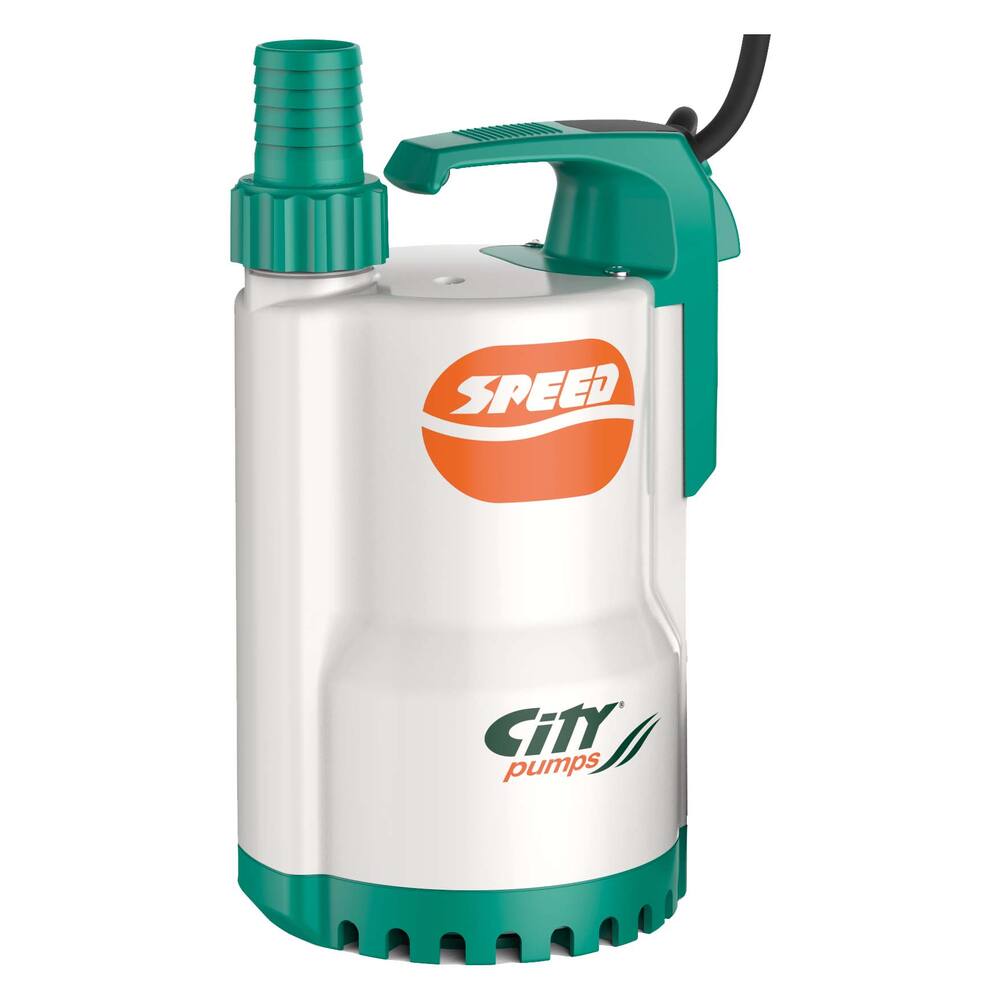

City Pumps Speed 30M 230V
This compact and cost-effective submersible pump is designed for a variety of uses including inland shipping, roofing, tennis courts, ponds, and cellars. It features a fully submersible centrifugal design with an open impeller and a dry motor.
- Type: Speed
- Colour: white with green
- Pump type: completely submersible centrifugal pump
- Impeller type: open impeller
- Motor type: dry motor
- Fuse: inbuilt thermal safeguard
- Shaft seal: double ceramic carbon mechanical seal and lip seal, separated by oil chamber
- Submersion depth: 3 metres
- Material impeller: Noryl
- Material impeller housing: plastic
- Material motor housing: plastic
- Material pump shaft: stainless steel EN 10088-3, 1.4104
- Liquids: clean and slightly contaminated water, max temperature +40°C (+90°C for max 3 minutes)
- Insulation class: Class F, IP68
- Pumps down to: 14 mm (only without float)
- Particle size: 10 mm, no sand or gravel
- Connections: 1" hose connection and 1 1/4" external thread
- Dimensions: diameter 152 mm, height 240 mm
- Weight: 4.1 kg
- Current: 1.3 A
- Shaft power: 0.25 kW, 0.33 hp, 2900 rpm
- Cable: 10 metre neoprene H05-RN-F with earthed plug
- Product code: 90.07.330
- Pipe diameter pressure: 1.1/4"
- Pipe diameter suction: -
- Pump type: Submersible pump
- Medium: Water
- Particle size: 10 mm
- Discharge head Max.: 6.0 m
- Voltage: 230 V
- Current: AC
- Frequency: 50 Hz
- Protection class: IP68
- ATEX: No
- Separate float switch: No
- Free flow (L/Hour): 9600
- Capacity 5 meter (L/hour): 3000
-
