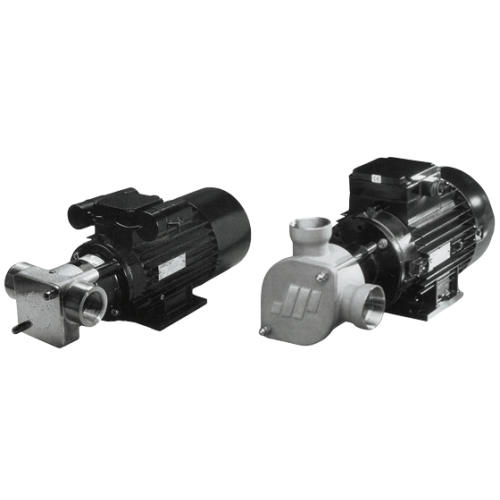

Johnson Pump FIP25 - Heavy Duty Stainless Steel Impeller Pump for Marine or Industrial Use

ID 1331072

$ 3,070.08

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump FIP25 heavy duty impeller pump in stainless steel delivers 158 l/min with self-priming capability up to 5 m and a maximum head of 25 m for demanding transfer duties. It operates across a 3°C to 80°C temperature range and is offered with either a 400V three-phase motor with a 1" connection or a 230V single-phase motor with a 1-1/2" connection, with a stated weight of 11.8 kg including the mechanical seal.

Description
Ask a Question

Johnson FIP25 Stainless Steel Heavy Duty Impeller Pump

The Johnson Pump FIP25 is a heavy duty stainless steel impeller pump designed for applications that require strong flow performance and dependable self-priming. With a specified capacity of 158 l/min, it supports demanding marine or industrial use while operating within the stated 3°C to 80°C temperature range.

Application

Marine use
Industrial use
Transfer and circulation tasks requiring self-priming up to 5 m and head up to 25 m

Technical Specifications

Model	FIP25 (Stainless Steel)
Capacity	158 l/min
Self-Priming Capability	Up to 5 m
Maximum Head	25 m
Temperature Range	3°C to 80°C
Weight	11.8 kg (including mechanical seal)
EAN	8719182071686

Product Details

Pump Type: Heavy duty impeller pump
Material: Stainless steel
Motor Options:
- 400V (3-phase)
- 230V (1-phase)
Connection Options:
- 1" connection (400V version)
- 1-1/2" connection (230V version)
Article Numbers:
- 66111321203F (400V, 1" connection)
- 66111321201F (230V, 1-1/2" connection)

Features

Stainless steel construction for demanding environments
158 l/min rated capacity to support high-throughput transfer
Self-priming up to 5 m to simplify suction-side setup
Maximum head of 25 m for strong discharge performance
Operating temperature range from 3°C to 80°C
