Johnson Pump 32-33103LB-01 - Low Boy Cartridge Bilge Pump for Narrow Bilges

ID 1330997

$ 89.57

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 32-33103LB-01 Low Boy cartridge bilge pump delivers high-capacity bilge dewatering in a low-profile form factor for tight installations, making it ideal where access is limited (including setups with the engine behind the bilge pump or boats with Z-drive). It runs on 12V and provides 73 l/min (1150 GPH) at 0 m head (13.6 V) and 60 l/min (952 GPH) at 3 ft head, while drawing 3A and using a 5A fuse. Dura-Port drain fittings help prevent stress cracking from over-tightened hose clamps, and the removable motor design supports fast maintenance without tools.

Description
Ask a Question

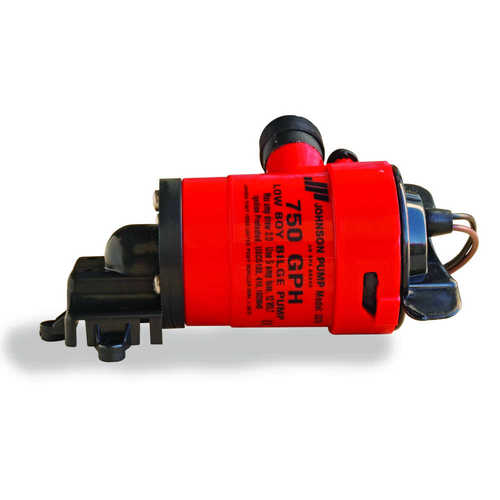

Johnson Pump 32-33103LB-01 Low Profile L750 Bilge Pump Unit

The Johnson Pump 32-33103LB-01 is a low-profile, submersible cartridge-series bilge pump built for straightforward installation and removal in narrow bilge spaces. Its compact footprint and service-friendly removable motor make it a practical choice where access is restricted, while the included Dura-Port drain connectors are designed to reduce the risk of stress cracking caused by over-tightened hose clamps.

Application

Designed for easy installation and removal in narrow bilges
Suitable for boats with the bilge pump located behind the installed engine
Suitable for boats equipped with Z-drive
Ideal for vessels with bilge pumps mounted beneath inboard or I/O engines

Technical Specifications

Model	L750 Low Boy
Type	Submersible bilge pump (Cartridge Series)
Operating Voltage	12 V
Capacity at 0 m Head (13.6 V)	73 l/min (1150 GPH)
Capacity at 3 ft Head (0.9 m) (13.6 V)	60 l/min (952 GPH)
Capacity at 1 m (3 ft) Head	60 l/min (952 GPH)
Power Consumption	3 A
Fuse	5 A
Maximum Length	146 mm (5.75 in)
Width	81 mm (3.2 in)
Height	72 mm (2.82 in)
Cable Diameter	1.3 mm² (16 GA)
Discharge Port	28.6 mm (1-1/8 in)
Hose Connection	1-1/8 in
Article Number	663233103LB01
EAN	8719182073963
Product Portfolio	Submersible bilge pumps
Shipping Weight	0.60 kg

Product Details

Low-profile design supports mounting in tight bilge areas and simplifies removal.
Cartridge series construction with a motor that can be removed for maintenance or replacement without tools.
Dura-Port drain fittings help prevent stress cracking associated with over-tightened hose clamps.
Supplied with straight and 90° Dura-Port drain connectors.

Features

Low Boy low-profile installation for narrow bilges
High-capacity bilge pumping performance (up to 1150 GPH at 0 m head)
Service-friendly removable motor design
Dura-Port connectors designed to reduce fitting stress
