ID
1330999
$ 365.35
1-2 weeks delivery time
-
+
The Johnson Pump 32-4000-01 L4000 bilge pump unit delivers heavy-duty, high-capacity bilge pumping for both recreational and commercial marine use. A liquid-cooled 12-pole motor with double ball bearings and a mechanical seal helps withstand rigorous service while supporting easier maintenance and replacement. With up to 252 l/min (4000 GPH) straight flow and multiple discharge connection options (1-1/2 in and 2 in), it provides strong dewatering performance in a compact submersible design.
- Description
- Ask a Question
-

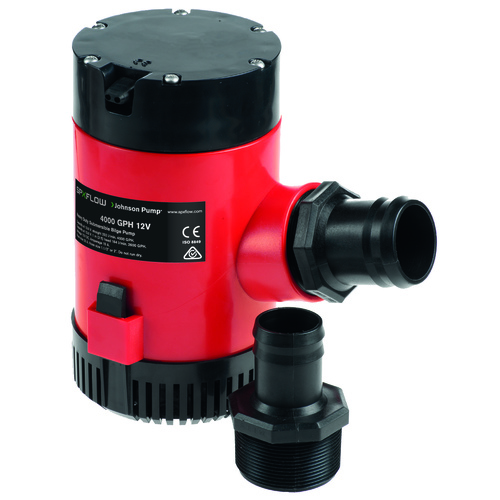

Johnson Pump 32-4000-01 L4000 12V Submersible Bilge Pump
The Johnson Pump L4000 is a heavy-duty submersible bilge pump built for demanding marine bilge pumping. Its liquid-cooled motor, durable bearing design, and mechanical seal are specified to support long service life and straightforward maintenance in both recreational and commercial environments.
Application
- Bilge pumping for recreational marine use
- Bilge pumping for commercial marine use
Technical Specifications
Brand Johnson Pump Part Number 32-4000-01 Article Number 6632400001 EAN 8719182073123 Product Portfolio Submersible bilge pumps Series L-series Model L4000 Rated Voltage 12 V Flow Rate (Straight Flow) 252 l/min (4000 GPH) Capacity at 0 m Head (13.6 V / 27 V) 252 l/min (4000 GPH) Performance at 0.9 m Delivery Head (13.6 V / 27 V) 164 l/min (2600 GPH) Capacity at 1 m Head 166 l/min Maximum Head 7.6 m Power Consumption 15 A Amperage (Listed) 19.5 A Fuse 25 A Cable Diameter 2 mm² (14 GA) Cable Length 1.8 m (6 ft) Maximum Diameter 121 mm Maximum Height 216 mm Weight 2.45 kg (5.40 lbs) Shipping Weight 3.80 kg Discharge Connection Options 1-1/2 in (38 mm) and 2 in (50 mm / 50.8 mm)
Product Details
- Pump type: High-performance, heavy-duty submersible bilge pump
- Motor: Liquid-cooled 12-pole motor
- Bearings: Double ball bearings
- Seal type: Mechanical seal (prevents shaft wear and supports maintenance and replacement)
Features
- Heavy-duty design intended to meet rigorous marine demands
- Removable check valve
- Threaded straight 38 mm (1-1/2 in) discharge port included
- Straight 51 mm (2 in) discharge port included
-
