The Johnson Pump 32-2200-02 heavy duty bilge pumping unit delivers high-output dewatering performance for commercial and recreational use, combining a liquid-cooled motor with double ball bearings for extended service life. This 24V model draws 4.5 A and provides up to 130 l/min (2200 GPH) straight flow, includes a removable check valve, and supports automatic operation when combined with an electronic float switch or Ultima Switch. With an ABS plastic body, mechanical seal design, and dual discharge options (28.5 mm and 32 mm), it enables durable, flexible installation in demanding marine environments.
- Description
- Ask a Question
-

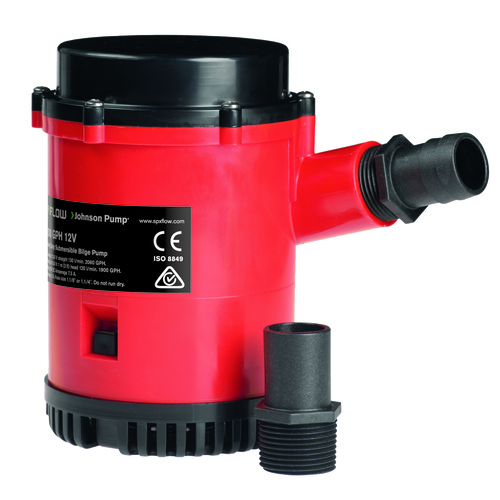

Johnson Pump 32-2200-02 L2200 24V Heavy Duty Submersible Bilge Pump
The Johnson Pump 32-2200-02 is a heavy duty submersible bilge pump built to meet demanding commercial and recreational duty. Its robust design focuses on dependable bilge dewatering, with a removable check valve and flexible discharge options to simplify installation and servicing.
Application
- Bilge pumping for commercial applications
- Bilge pumping for recreational applications
- Supports automatic operation when combined with an electronic float switch or Ultima Switch
Technical Specifications
Brand Johnson Pump Part Number 32-2200-02 Article Number 6632220002 Model L2200 Product Portfolio Submersible bilge pumps Body Material ABS plastic Rated Voltage 24 V Amperage 4.5 A Fuse 6 A Capacity (Straight Flow) 130 l/min (2200 GPH) Capacity at 1 m Head 120 l/min (1900 GPH) Performance at 0 m Head (13.6 V / 27 V) 130 l/min (2060 GPH) Performance at 0.9 m Head (13.6 V / 27 V) 120 l/min (1900 GPH) Maximum Head 5 m Hose Connection 1-1/8 in (28.5 mm) and 1-1/4 in (32 mm) Connection (Hose Fittings) 28 mm and 32 mm hose fittings Discharge Port (Included) Threaded straight 32 mm (1-1/4 in) and straight 28 mm (1-1/8 in) Dimensions (Max Diameter x Height) 108 mm x 177 mm Max Diameter 108 mm (4.25 in) Max Height 177 mm (7 in) Weight 2.25 kg (4.96 lbs) Shipping Weight 2.80 kg Cable Length 1.8 m (6 ft) Cable Size 1.3 mm² (16 GA) Seal Type Sliding ring / carbon / ceramic Shaft Material SS2343 EAN 8719182073123
Product Details
- Heavy duty design: Developed to meet and exceed demanding commercial and recreational requirements.
- Motor and durability: Liquid-cooled motor with double ball bearings for extended service life.
- Sealing concept: The 2200 GPH model uses a mechanical seal design to reduce wear on the shaft and support maintenance and replacement.
- Hydraulic efficiency: Carefully designed and tested impeller to maximize head and flow.
- Installation flexibility: Universal base plate with a choice of two different port sizes for easier installation.
- Backflow control: Removable check valve included.
Features
- Designed for tough commercial and recreational duty
- Liquid-cooled motor with double ball bearings
- Universal base plate with two port-size options
- Removable check valve included
- Can be combined with an electronic float switch or Ultima Switch for automatic operation
- Available with a pre-wired Ultima Switch for 1600 and 2200 GPH models
-
