ID
1330995
$ 215.89
1-2 weeks delivery time
-
+
The Johnson Pump 32-2200-01 L2200 submersible bilge pump delivers heavy-duty bilge dewatering with 12V operation, a liquid-cooled 16-pole motor with double ball bearings, and a removable check valve for dependable performance. It provides 130 l/min at 13.6V at 0 m head and 120 l/min at 1 m head, with a maximum head of 5 m, while drawing 7.5 A and requiring a 12 A fuse. Installation is flexible thanks to threaded straight discharge ports and hose connections in 28.5 mm (1-1/8") and 32 mm (1-1/4"), and the unit is completed with a mechanical carbon/ceramic seal and a 1.8 m cable.
- Description
- Ask a Question
-

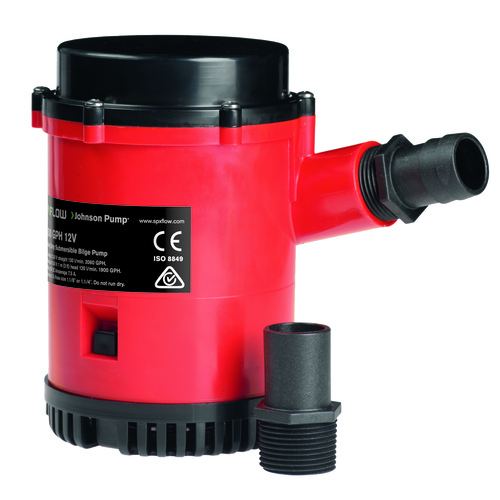

Johnson Pump 32-2200-01 L2200 Heavy-Duty Bilge Pump Unit
The Johnson Pump 32-2200-01 is a high-performance, heavy-duty submersible bilge pump built for demanding marine bilge pumping tasks. It combines strong flow capability with durable internal components and practical installation options to help keep bilges clear in tough operating conditions.
Application
- Submersible bilge pumping
- Heavy-duty marine use
- Designed to meet demanding requirements for leisure and commercial marine operation
Technical Specifications
Brand SPX Johnson Pump Product Portfolio Submersible bilge pumps Part Number 32-2200-01 Article Number 6632220001 EAN 8719182073123 Model L2200 Voltage 12 V Current Draw 7.5 A Recommended Fuse 12 A Capacity at 0 m Head (13.6 V) 130 l/min (2200 GPH) Performance at 0 m Head (13.6 V / 27 V) 130 l/min (2060 GPH) Capacity at 1 m Head (3 ft) 120 l/min (1900 GPH) Performance at 0.9 m Head (13.6 V / 27 V) 120 l/min (1900 GPH) Maximum Head 5 m Maximum Diameter 108 mm (4.25 in) Maximum Height 177 mm (7 in) Weight 2.25 kg (4.96 lb) Shipping Weight 2.80 kg Cable Length 1.8 m (6 ft) Cable Diameter 1.3 mm² (16 GA) Hose Connection / Discharge Ports 1-1/8 in (28.5 mm) and 1-1/4 in (32 mm)
Product Details
- Motor: Liquid-cooled 16-pole motor with double ball bearings
- Check Valve: Removable check valve
- Discharge Ports: Threaded straight 32 mm (1-1/4 in) and straight 28 mm (1-1/8 in)
- Seal Type: Mechanical seal ring (carbon / ceramic)
- Shaft Material: SS2343
Features
- Heavy-duty submersible design for demanding bilge pumping
- High flow output with strong lift capability up to 5 m head
- Versatile installation with dual discharge/hose connection sizes
- Service-friendly configuration with removable check valve
-
