ID
1330998
$ 71.48
1-2 weeks delivery time
-
+
The Johnson Pump 32-33703LB-01 low-profile cartridge bilge pump is built for quick installation and removal in narrow bilges, making it a strong fit when the bilge pump sits behind the engine or with Z-drive setups. Its Dura-Port drain fittings help prevent stress cracking from over-tightened hose clamps, and the included straight and 90° connectors simplify discharge routing. Running on 12V with 3A consumption, it delivers 800 GPH at 0 ft head and 700 GPH at 3 ft head, and includes a 3/4 in hose connection with a 5A fuse for protected operation.
- Description
- Ask a Question
-

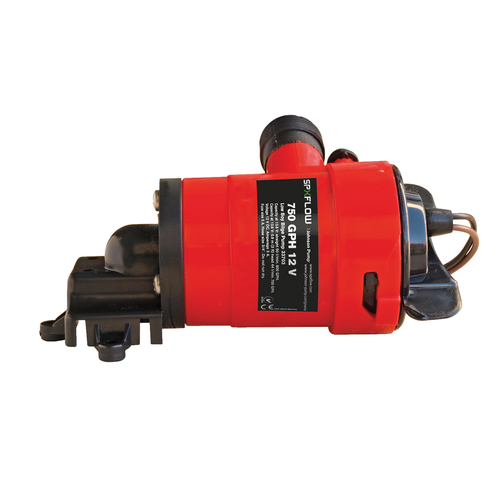

Johnson Pump 32-33703LB-01 Low Profile Bilge Pump Cartridge Unit
The Johnson Pump 32-33703LB-01 is a compact, submersible Low Boy bilge pump designed to fit where space is limited. Its low-profile form helps it slide into tight bilge areas, while the cartridge-style design supports straightforward maintenance by allowing the motor to be removed without tools.
Application
- Narrow bilges where easy installation and removal is needed
- Boats with the bilge pump located behind the engine
- Engines with Z-drive installations
Technical Specifications
Brand Johnson Pump Part Number 32-33703LB-01 Article Number 663233703LB01 EAN 8719182073963 Type Submersible bilge pump (cartridge series) Model L550 Low Boy Voltage 12 V Power Consumption 3 A Fuse 5 A Capacity at 0 ft Head (13.6 V) 50 L/min (800 GPH) Capacity at 3 ft (0.9 m / 1 m) Head (13.6 V) 44 L/min (700 GPH) Maximum Length 146 mm (14.6 cm) Width 81 mm (8.1 cm) Height 72 mm (7.2 cm) Cable Diameter 1.3 mm8 (16 GA) Discharge Connection 3/4 in (19 mm) Shipping Weight 0.60 kg Product Portfolio Submersible bilge pumps
Product Details
- Low-profile design supports mounting and removal in tight bilge areas.
- Dura-Port drain fittings help prevent stress cracking caused by over-tightened hose clamps.
- Cartridge construction allows the motor to be removed for maintenance or replacement without tools.
Features
- Includes straight and 906 Dura-Port drain connectors
- Supplied with 906 and straight 3/4 in (19 mm) discharge fittings
-
