The Johnson Pump 32-1750-01-24 L750 submersible cartridge bilge pump delivers high-performance bilge dewatering for demanding marine environments, drawing on proven experience from racing, long-distance voyages, sport fishing, and commercial seafaring. It runs on 24V power and uses Dura-Port drain fittings (straight and 90° elbow) designed to help eliminate stress cracking caused by over-tightened hose clamps. The removable motor supports fast maintenance or replacement without special tools, while performance is specified at 73 l/min (1150 GPH) straight at 27V and 60 l/min (952 GPH) at 1 m head, with a maximum head height listed at 2.6 m.
- Description
- Ask a Question
-

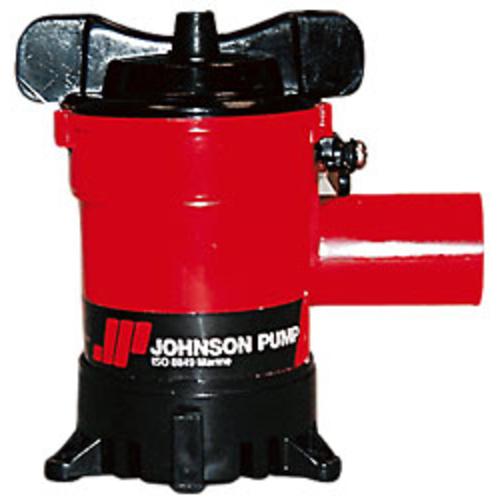

Johnson Pump 32-1750-01-24 L750 Submersible Cartridge Bilge Pump
The Johnson Pump 32-1750-01-24 is a 24V submersible bilge pump from the Cartridge Series, built for tough marine use. Developed using experience from racing, long-distance cruising, sport fishing, and commercial seafaring, it combines compact installation with service-friendly design. The pump features Dura-Port drain fittings to help reduce stress cracking associated with over-tightened hose clamps, and the motor cartridge can be removed for maintenance or replacement without special tools.
Application
- Bilge pumping in demanding marine environments
- Use cases referenced: racing, long-distance voyages, sport fishing, and commercial seafaring
Technical Specifications
Brand Johnson Pump Part Number 32-1750-01-24 Series / Type L-Series bilge pump, cartridge type (Cartridge Series), L750 Voltage 24V Capacity (Straight) 73 l/min (1150 GPH) at 27V Capacity (At Head) 60 l/min (952 GPH) at 1 m (3 ft) head Maximum Head Height 2.6 m Current Draw (Listed) - 2A
- 24V / 1.5A
- 3.0A
Fuse Size (Listed) - 3A
- 5A
Dimensions (Listed) - Height: 11.0 cm
- Width: 7.0 cm
- Height: 112 mm
- Diameter: 70 mm
Hose Size / Connection (Listed) - Hose size: 28 mm (1-1/8 in)
- Connection: 1-1/8 in
Seal Lip seal Electric Cable 0.75 mm² Article Number 663217500124 EAN 8719182072768 Weight (Listed) - 0.32 kg
- Shipping weight: 0.60 kg
Product Portfolio Submersible bilge pumps
Product Details
- Cartridge design: motor can be removed for maintenance or replacement without special tools
- Dura-Port drain fittings: supplied with a straight Dura-Port and a 90° Dura-Port elbow
- Improved fitting concept: designed to help eliminate stress cracking caused by over-tightened hose clamps
Features
- High-performance bilge pumping for demanding marine service
- Compact form factor with specified height and diameter/width dimensions
- Rated performance figures provided for straight discharge and 1 m head conditions
-
