ID
1330964
$ 390.45
1-2 weeks delivery time
-
+
The Johnson Pump 10-24727-02 self-priming impeller pump unit (model F38B-19) delivers up to 35 l/min on 24V DC power for demanding marine transfer tasks such as bilge pumping, deck cleaning, circulation, and oil and diesel refueling. A heavy-duty motor with built-in thermal overload protection supports continuous operation up to a maximum 0.6 bar head pressure, while self-priming up to 3 m (under perfect conditions) helps maintain dependable suction performance. Built with a bronze body and a brass pump head, it includes an oil-resistant nitrile impeller and uses a lip seal, with connections for a 1" hose inner diameter and a 1/2" BSP female thread option.
- Description
- Ask a Question
-

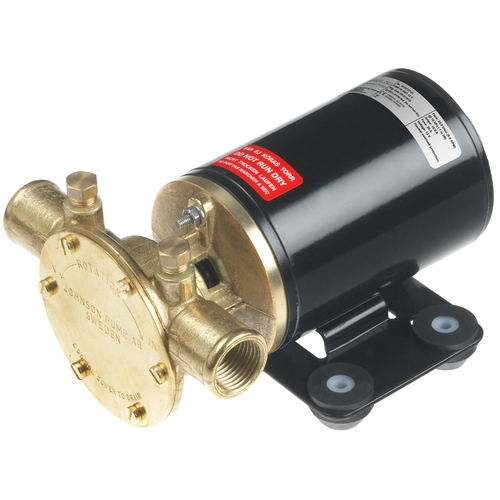

Johnson Pump 10-24727-02 F38B-19 Self-Priming Impeller Transfer Unit
The Johnson Pump 10-24727-02 is a flexible impeller pump with a 24V DC motor designed for reliable fluid transfer in marine service. It is suited to heavy-duty use where consistent flow, self-priming capability, and robust materials are important for daily operation.
Application
- Bilge pumping
- Deck wash and deck cleaning
- Water circulation
- Fire pump applications
- Refueling and transfer for oil and diesel
Technical Specifications
Brand Johnson Pump Part Number 10-24727-02 Model F38B-19 Voltage 24V DC Output (Free Flow) Up to 35 litres/minute Output (at 3 m Head) Approx. 31 l/min Self-Priming Up to 3 m under perfect conditions; maximum head should not exceed 6 m Continuous Operation Limit Up to maximum 0.6 bar head pressure Current 7.1 A Recommended Fuse Size 10 A Body / Housing Bronze Pump Head Material Brass Impeller 09-824P-9 (includes nitrile impeller) Shaft Seal Lip seal Connections 1" hose inner diameter directly to inlet/outlet connection, or via R1/2" female thread (1/2" BSP) for corresponding fittings (not included) Dimensions (L x W x H) 180 mm x 120 mm x 90 mm Dimensions (Length / Width / Height) 17.5 cm / 12 cm / 9.0 cm Weight 3 kg Shipping Weight 2.70 kg Article Number 66102472702 EAN 8719182062448 Product Portfolio General Purpose Pumps; Electric impeller pumps
Product Details
- Motor protection: Built-in thermal overload protection
- Impeller material: Oil-resistant nitrile
- Use case focus: Designed for tough conditions and heavy-duty service
Features
- Self-priming flexible impeller design for dependable suction performance
- 24V DC motor with built-in thermal overload protection
- Up to 35 l/min capacity for fast transfer and washdown duties
- Bronze body with brass pump head for robust marine service
- Connection flexibility via 1" hose and 1/2" BSP thread option (fittings not included)
-
