ID
1330963
$ 390.45
1-2 weeks delivery time
-
+
The Johnson Pump 10-24727-01 self-priming flexible impeller pump unit (model F38B-19) delivers up to 35 l/min from a 12V DC motor for bilge pumping, deck cleaning, water circulation, and refueling oil and diesel. A heavy-duty motor with built-in thermal overload protection supports reliable operation, while the bronze body, brass pump head, and oil-resistant nitrile impeller are built for marine service. It supports continuous operation up to 0.6 bar head pressure, self-primes up to 3 m under ideal conditions, and offers 1 in hose and 1/2 in BSP connection options.
- Description
- Ask a Question
-

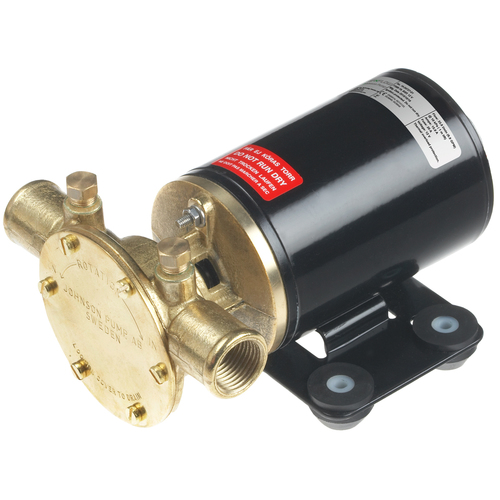

Johnson Pump 10-24727-01 F38B-19 12V Flexible Impeller Pump Unit
The Johnson Pump 10-24727-01 is a self-priming impeller pump with a 12V DC motor for demanding onboard transfer and circulation duties. Built with marine-ready materials and a compact footprint, it supports reliable pumping for service tasks where consistent flow and durable construction matter.
Application
- Bilge pumping
- Deck cleaning
- Deck wash pumping
- Water circulation
- Fire pump applications
- Refueling pumps for oil and diesel
Technical Specifications
Brand Johnson Pump Part Number 10-24727-01 Model F38B-19 Voltage 12V DC Flow Rate Up to 35 l/min (free flow); approx. 31 l/min at 3 m head Continuous Operation Capability Up to maximum 0.6 bar head pressure Self-Priming Up to 3 m under perfect conditions Maximum Head Should not exceed 6 m Current Draw 15.8A Recommended Fuse Size 20A Connections 1 in hose inner diameter to inlet/outlet; R1/2 in female thread / 1/2 in BSP (fittings not included) Dimensions (H x W x L) 9.0 cm x 12 cm x 17.5 cm Weight 3 kg (6.6 lbs) Shipping Weight 2.70 kg Body Material Bronze Pump Head Material Brass Impeller Material Oil-resistant nitrile Shaft Seal Lip seal Article Number 66102472701 EAN 8719182062448 Product Portfolio General Purpose Pumps; Electric Impeller Pumps
Product Details
- Motor protection: Built-in thermal overload protection
- Construction: Bronze body with brass pump head for corrosion-resistant service
- Impeller: Nitrile impeller included
- Service parts referenced: Service kit 09-46600; impeller kit 09-824P-9
Features
- Self-priming flexible impeller design for versatile onboard pumping
- Up to 35 l/min output to support fast transfer and washdown tasks
- Heavy-duty 12V DC motor designed for long service life under heavy use
- Compact dimensions for easier installation in tight spaces
-
