ID
1330932
$ 754.98
1-2 weeks delivery time
-
+
The Johnson Pump 10-24253-2 flexible impeller cooling-water pump delivers self-priming operation for engine cooling, lifting water up to 3 meters without manual priming. Its bronze pump body, flange-mounted drive, and full cam design support reliable seawater use, while the neoprene rubber impeller is built for general water applications and helps pass large solids with reduced clogging. With 1" NPT connections, flow performance of 107 L/min at 0.3 bar at 2000 rpm, and capacity up to 625 L/min (9900 gallons per hour), this serviceable pump is designed with easily replaceable wear parts for long-term operation.
- Description
- Ask a Question
-

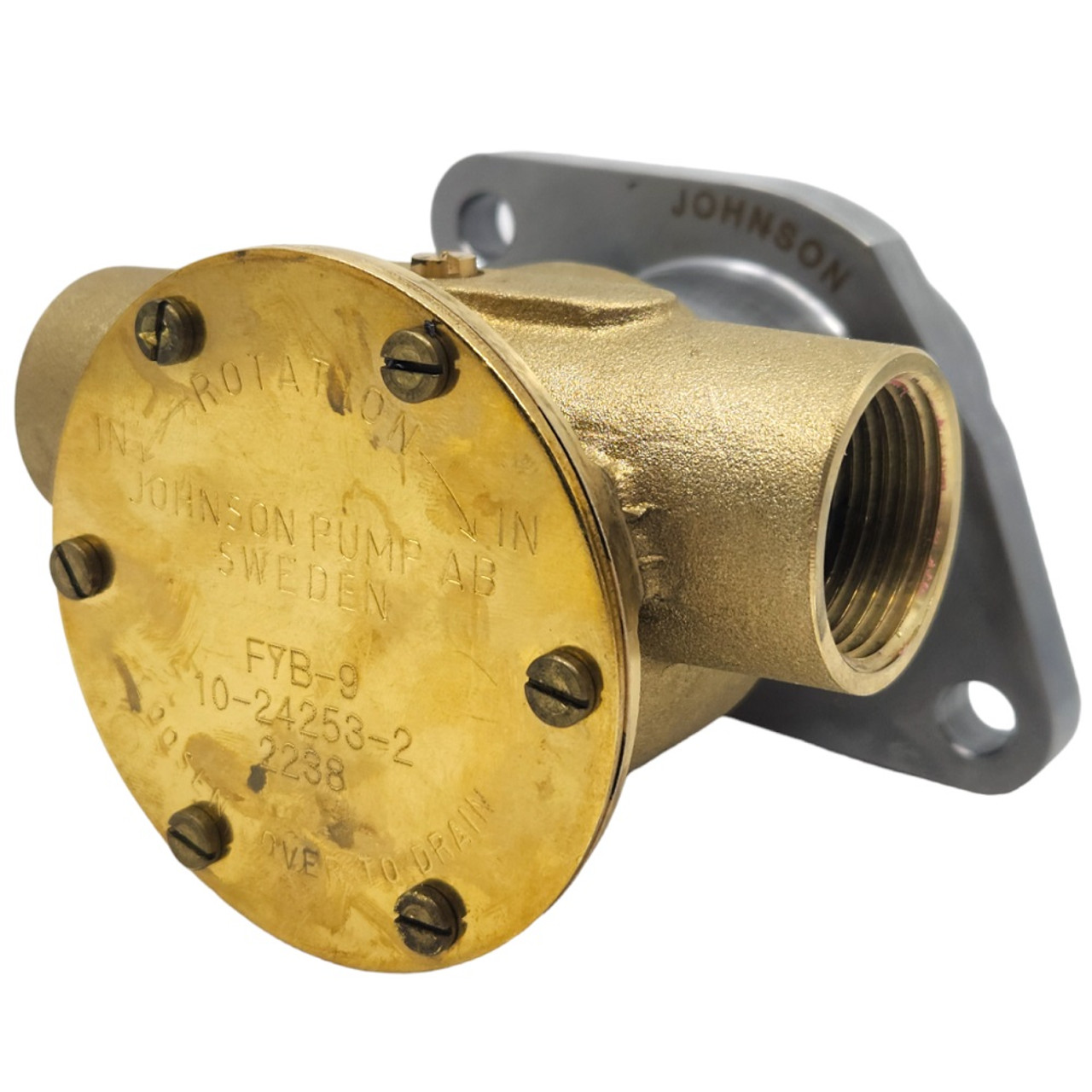

Johnson Pump 10-24253-2 Flexible Impeller Cooling Water Pump
The Johnson Pump 10-24253-2 is a self-priming, flexible impeller pump developed for engine cooling and marine water transfer duties. Built with a bronze body and designed to handle demanding operating conditions, it supports seawater applications and is engineered for straightforward maintenance with replaceable wear components.
Application
- Engine cooling
- Raw water applications
- Fresh water applications
- Seawater applications
Compatibility
- Hino W04D engines
- Hino W04CT engines
- Bayliner W04D applications (commonly used as a seawater pump)
- Hino Motors W04D applications
Technical Specifications
Brand Johnson Pump Part Number 10-24253-2 Article Number 6610242532 EAN 8719182061724 Pump Type Self-priming flexible impeller pump Size F7 Cam Design 1/1 (Full) Cam Design Pump Body Material Bronze Mounting Type Flange Drive Flange Mounted to Engine Drive and Shaft End Conical Mount; Shaft End with Crescent Spring; Thread for Lock Nut; Key Drive; Tapered Mount with Lock Nut Impeller 09-1028 Included Impeller MC97 Impeller Material Neoprene Rubber Impeller Hub Spline Drive Connection 1" NPT Flow 107 L/Min at 0.3 Bar at 2000 rpm Maximum Capacity Up to 625 L/Min (9900 gallons per hour) Self-Priming Lift Up to 3 m OEM Alternative S161003042 Shipping Weight 3.70 kg
Product Details
- Designed for: Engine cooling duties with self-priming performance.
- Serviceability: Wear parts are easily replaceable, and service kits are available for standard models.
- Port range note: Pump ports are available in sizes ranging from 3/8" to 2-1/2" (this configuration is listed with 1" NPT connection).
- Dry-running limitation: Do not run dry for more than 30 seconds, as the impeller and seals rely on water for lubrication.
Features
- Self-priming design lifts water up to 3 meters without manual priming
- Handles large solids to help reduce clogging and minimize incoming fluid filtering requirements
- Bronze pump body with flange mounting for robust marine operation
- Flexible neoprene rubber impeller suited to general water applications
-
