ID
1007060
$ 1,620.51
1-2 weeks delivery time
-
+
The SPX Johnson Pump 10-13576-02 magnetic-drive circulation unit is a heavy-duty, seal-less high-pressure pump built for leak-proof circulation of fresh water or water/glycol mixtures. Its brushless 24V DC motor (nominal voltage 27.2V) supports continuous operation, while thermal overload protection and water- and dust-proof ratings help it stay reliable in demanding environments. With flow up to 104 liters per minute and a Ø25 mm (1 in) hose connection, it suits heating and cooling duties on boats and a wide range of vehicles, including applications such as cooling electrical circuits and batteries.
- Description
- Ask a Question
-

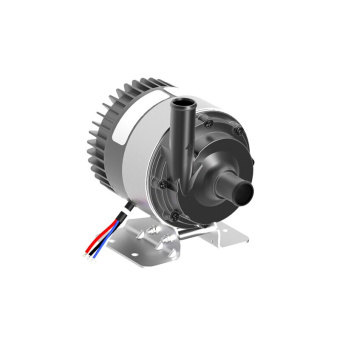

SPX Johnson Pump 10-13576-02 CM100HP High-Pressure Circulation Unit
The SPX Johnson Pump 10-13576-02 is a heavy-duty, magnetic-driven circulation pump engineered for demanding heating and cooling loops. Its seal-less construction helps provide leak-proof performance, and the brushless DC motor is designed for continuous service where dependable coolant flow is critical.
Application
- Circulation of water or antifreeze in heating systems
- Trains
- Buses
- Boats
- Cooling circulation for fresh water and coolants in vehicles
- High-flow, high-pressure cooling for electrical circuits and batteries in hybrid and all-electric commercial vehicles
Technical Specifications
Brand SPX Johnson Pump Part Number 10-13576-02 Model CM100HP AL-1BL Pump Type Heavy-duty, magnetic-driven, seal-less, high-pressure circulation pump (leak-proof) Motor Brushless 24V DC motor (nominal voltage 27.2V) Flow Rate 104 L/min at 0.6 bar; 85 L/min at 1 bar Hose Connection For Ø25 mm (1 in) hose inner diameter; also stated Ø38 mm (1 1/2 in) Current Draw 16.4 A Recommended Fuse Size 25 A to 30 A Max Power Consumption 475 W Ingress Protection IP6K9K, IP67 Liquid Compatibility Fresh water or water/glycol mixture (max. 60% glycol) Liquid Temperature Range –40°C to +93°C (also stated –40°C to +102°C) Ambient Operating Temperature –40°C to +105°C (also stated max. ambient +70°C) System Pressure –0.2 to +2.5 bar at 100°C (max. 2.5 bar stated) Priming Non-self-priming; requires flooded suction Dry-Run Capability Withstands dry running for up to 25 minutes Mounting Foot mounting; separate universal bracket for flat surfaces included Dimensions (L × W × H) 18.6 cm × 13.5 cm × 17.9 cm Weight 3.9 kg Shipping Weight 5.00 kg
Product Details
- Pump housing: Aluminum, black anodized
- Impeller: PPS GF
- Shaft: Hardened stainless steel
- Motor construction: Brushless permanent-magnet motor with ball bearings and integrated electronics
- Product portfolio: Circulation Pumps
Features
- Leak-proof operation enabled by a seal-less design
- Thermal overload protection via throttle function with automatic speed control during overheating
- Speed sensor output signal for monitoring
- Permanently lubricated ball-bearing motor rated up to 40,000 hours of uninterrupted service
- Water-proof and dust-proof design for harsh operating environments
-
