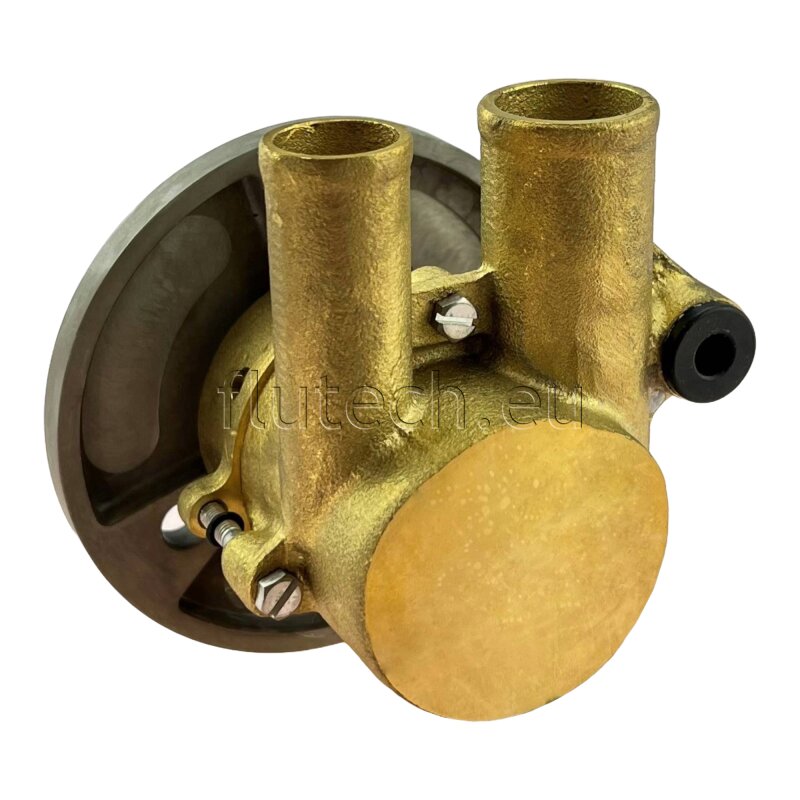

Johnson Pump 10-13569-13 - Bronze Impeller Cooling Water Pump for Volvo Penta 8.1 Engines

ID 1332425

$ 659.17

1-2 weeks delivery time

- +

Add to cart

The Johnson Pump 10-13569-13 bronze impeller pump is a self-priming cooling water pump in size F6 with a pulley-mount bronze pump body for durable marine service. Belt drive via the crankshaft pulley supports dependable engine cooling, while the included MC97 impeller and spline-drive impeller hub help ensure consistent performance. Hose connections are 25 mm inlet and 32 mm outlet, and the pump is frequently used on a wide range of Volvo Penta 8.1 engine variants.

Description
Ask a Question

Johnson Pump 10-13569-13 Bronze F6 Cooling Water Impeller Unit

This Johnson Pump bronze impeller pump is built for engine cooling water circulation where a self-priming, belt-driven solution is required. With a pulley mounting arrangement and marine-ready bronze construction, it supports reliable cooling water delivery in demanding installations.

Application

Self-priming cooling water pump (size F6)
Pulley-mount installation with belt drive via crankshaft pulley

Compatibility

Volvo Penta 8.1GiE-P
Volvo Penta 8.1GXiE-P
Volvo Penta 8.1GiCE-P
Volvo Penta 8.1GiCE-Q
Volvo Penta 8.1IPSCE-Q
Volvo Penta 8.1IPSCE-P
Volvo Penta 8.1Gi-G
Volvo Penta 8.1Gi-GF
Volvo Penta 8.1GXi-F
Volvo Penta 8.1GXi-FF
Volvo Penta 8.1OSi-C
Volvo Penta 8.1OSi-CF
Volvo Penta 8.1GiI-G
Volvo Penta 8.1GXiI-F
Volvo Penta 8.1Gi-H
Volvo Penta 8.1Gi-HF
Volvo Penta 8.1GXi-G
Volvo Penta 8.1GXi-GF
Volvo Penta 8.1OSi-D
Volvo Penta 8.1OSi-DF
Volvo Penta 8.1GiI-H
Volvo Penta 8.1GXiI-G
Volvo Penta 8.1IPSCE-JF
Volvo Penta 8.1IPSCE-MF
Volvo Penta 8.1Gi-J
Volvo Penta 8.1Gi-JF
Volvo Penta 8.1OSi-J
Volvo Penta 8.1OSi-JF
Volvo Penta 8.1GXi-J
Volvo Penta 8.1GXi-JF
Volvo Penta 8.1GiE-JF
Volvo Penta 8.1GiE-J
Volvo Penta 8.1OSiE-JF
Volvo Penta 8.1OSiE-J
Volvo Penta 8.1GXiE-JF
Volvo Penta 8.1GXiE-J
Volvo Penta 8.1GiE-K
Volvo Penta 8.1GiE-KF
Volvo Penta 8.1GXiE-K
Volvo Penta 8.1GXiE-KF
Volvo Penta 8.1GiE-M
Volvo Penta 8.1GiE-MF
Volvo Penta 8.1GXiE-M
Volvo Penta 8.1GXiE-MF
Volvo Penta 8.1GXi-MF
Volvo Penta 8.1IPSE-JF
Volvo Penta 8.1GiC-J
Volvo Penta 8.1GiC-JF
Volvo Penta 8.1GiC-Q
Volvo Penta 8.1GiCE-J
Volvo Penta 8.1GiCE-JF
Volvo Penta 8.1GiCE-M
Volvo Penta 8.1GiCE-MF

Technical Specifications

Brand	Johnson Pump
Part Number	10-13569-13
Pump Type	Bronze Impeller Pump
Use	Cooling Water Pump
Self-Priming	Yes
Pump Size	F6
Material	Bronze
Mounting Type	Crankshaft Pulley
Drive	Belt Drive via Crankshaft Pulley
Impeller Included	MC97
Impeller Hub	Spline Drive
Inlet Connection	25 mm Hose Connection
Outlet Connection	32 mm Hose Connection

Product Details

Pulley mount: Bronze pump body designed for fastening via pulley and retaining eyelet
Product portfolio: Impeller pumps; cooling water pumps
Alternative references: Johnson Pump Marine 10-13356-03 (predecessor)
Alternative references: Johnson Pump Marine 10-13470-03 (predecessor)
Alternative references: Johnson Pump Marine 10-13569-03 (OEM)
Alternative references: Johnson Pump Marine 10-13569-13 (open market)
Alternative references: Volvo Penta 3812518 (predecessor)
Alternative references: Volvo Penta 21212800

Features

Self-priming cooling water pump design supports reliable water pickup
Bronze construction enhances durability for marine cooling duty
Crankshaft pulley belt drive integrates into pulley-driven engine layouts
Supplied with MC97 impeller for ready-to-install service
25 mm inlet and 32 mm outlet hose connections for straightforward plumbing
