ID
1330870
$ 27.24
1-2 weeks delivery time
-
+

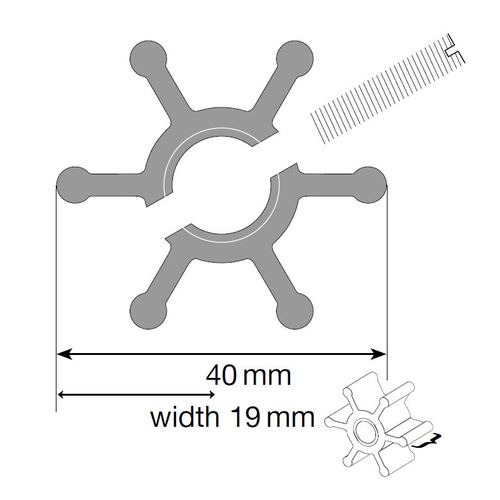

The Johnson Pump 09-808B-1 impeller unit is built to fit F35 pumps and optimize fluid flow with a precise 6-blade design and through pin drive. Its MC97/EPDM construction is designed for long service life, replacing traditional neoprene compounds, while the 40 mm outer diameter, 12.0 mm flat inner diameter, and 19 mm width support correct fit and dependable pump performance. Supplied as a service kit with gasket, O-ring, grease or lubrication gel, and instructions, it also replaces Jabsco 22405-0001.
- Description
- Ask a Question
-
Johnson 09-808B-1 Impeller Service Kit for F35 Pumps
The Johnson Pump 09-808B-1 is a precision pump impeller engineered for F35 pumps. With a durable 6-blade profile and a through pin drive, it helps maintain efficient, consistent pump operation. The impeller is made from MC97/EPDM, an environmentally friendly rubber material developed to meet newer manufacturing regulations and to replace traditional neoprene compounds for extended service life.
Application
- Fits Johnson Pump F35 pumps
- Compatible with SPX F35 pumps
Compatibility
- BMW engines
- Bukh engines
- Farymann engines
- Kubota engines
- Lister engines
- Lombardini engines
- Nanni engines
- Onan engines
- Volvo engines
- Westerbeke engines
Technical Specifications
Brand Johnson Pump Model 09-808B-1 Product Portfolio Impeller Pump F35 Material MC97/EPDM Number of Blades 6 Outer Diameter 40 mm (1.58 in) Inner Diameter 12.0 mm flat Shaft Diameter 12 mm (0.47 in) Width 19 mm Depth 19 mm (3/4 in) Drive Type Through Pin Drive (Slotted Shaft Pin Drive) Insert Material Brass Shipping Weight 0.10 kg EAN 8719182044925 Article Number 6609808B-1 Reference 5
Product Details
- Designed for: F35 pump fitment to support seamless impeller replacement
- Material note: MC97 is an environmentally friendly rubber material developed to comply with newer regulations and to replace traditional neoprene compounds, providing extended service life
- Replacement part: Replaces Jabsco 22405-0001
Included in the Kit
- Impeller 09-808B-1
- Gasket (including gasket 01-43240)
- O-ring
- Grease or lubrication gel
- Instruction manual
Alternative To
- Ancor 2048
- Bukh 610G0102
- BMW 17 11 1 329158
- BMW 17.11.1.329158
- BMW 17-11-1-329158
- BMW 17111329158
- Vetus IMP00601
- Volvo 875583-7
- Volvo 833995
- Westerbeke and Universal 32620
Features
- 6-blade impeller geometry designed to optimize fluid flow in F35 pumps
- Through pin drive for correct engagement with the pump drive
- Service-kit supply helps streamline installation with included sealing and lubrication items
-
