$ 30
1-2 weeks delivery time
-
+

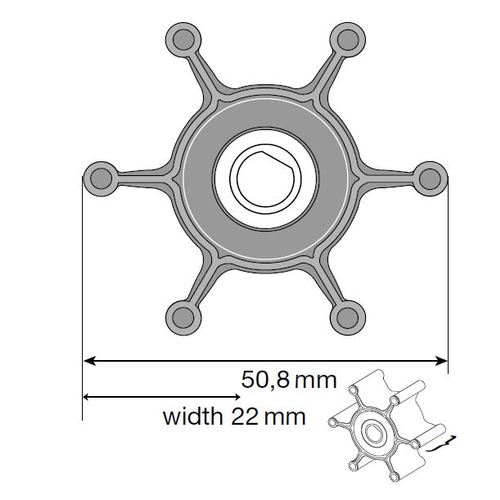

The Johnson Pump 09-810B-1 impeller service kit supports reliable engine cooling by restoring proper flow in compatible SPX F4 pump applications. It uses an MC97/EPDM impeller with 50.8 mm outer diameter, 12 mm flat inner diameter, and 22 mm width for a precise fit, and includes gaskets and an O-ring for service work. Built for seawater-cooling duty, this kit is also listed as an alternative to multiple OEM impeller part numbers, and the impeller should be replaced annually to maintain cooling-system performance.
- Description
- Ask a Question
-
MC97 Impeller Service Kit Johnson Pump 09-810B-1 for SPX F4
The Johnson Pump 09-810B-1 is a seawater-compatible impeller service kit intended for maintaining proper circulation in marine cooling systems. It combines an MC97/EPDM impeller with service seals to help keep compatible pumps operating efficiently.
Application
- Marine cooling system service (annual impeller replacement recommended)
Compatibility
- SPX F4 pumps
- F4 pumps
- F4B pumps
- Vetus pumps
- Yanmar pumps
- Beta Marine engines
- Bukh engines
- Ford engines
- Thornycroft engines
Technical Specifications
Material MC97/EPDM (also listed as MC97) Outer Diameter 50.8 mm (also listed as 51 mm) Inner Diameter 12 mm, flat Width / Depth 22 mm Number of Blades 6 Impeller Hub / Drive Slotted Shaft Pin Drive; Through Hold Pin Drive Insert Material Brass Shipping Weight 0.10 kg EAN 8719182044925 Article Number 6609810B-1 Reference 7
Product Details
- Kit contents: Impeller 09-810B-1; gaskets 01-42391 and 01-45284; O-ring 0.2173.476; grease (also listed as glycerine)
- Note: Not a replacement for STM8076
- Replaces: 18653-001
Alternative To
- Bukh 610G0131
- Northern Lights 25-18325
- SPX Johnson Pump 08-810B-1
- SPX Johnson Pump 09-810B-1
- Vetus IMP00801
- Volvo 804696
- Volvo 897055
- Volvo 875808-8
- Westerbeke & Universal 34440
- Westerbeke & Universal 034440
- Yanmar 128990-42200
- Yanmar 128990-42570
- Yanmar 128397-42200
-
