The Johnson Pump 09-810B-9 impeller kit is built for SPX F4 pump service and includes a nitrile (oil-resistant) flexible impeller with an included O-ring. It features a slotted shaft pin drive or through-hole pin drive and is supplied with lubrication (listed as grease or glycerine), plus installation instructions for straightforward maintenance. With a 6-blade design and stated dimensions including 50.8 mm outer diameter and 22 mm width/depth, it supports reliable performance and is recommended for annual replacement for optimal operation.
- Description
- Ask a Question
-
Johnson Pump 09-810B-9 F4 Pump Nitrile Impeller Kit
The Johnson Pump 09-810B-9 is a flexible nitrile impeller service kit intended for SPX F4 pumps and F4 range pump applications where exposure to diesel or light oils can occur. The kit is supplied as a maintenance solution to help keep pump performance at its best, with guidance that the impeller should be replaced annually for optimal operation.
Compatibility
- SPX F4 pumps
- F4 pump (F4 range pumps)
- F4B-19 pumps (10-24512-01, 10-24512-02, 10-24689-01, 10-24689-02)
- F4B-1907 pumps (10-24512-03, 10-24512-04, 10-24689-03, 10-24689-04)
- F38B-19 pumps (10-24727-01, 10-24727-02)
- F38B-1907 pumps (10-24727-03, 10-24727-04)
Technical Specifications
Brand Johnson Pump Product Portfolio Impeller Material Nitrile (oil resistant) Outer Diameter 50.8 mm (2 in) Diameter (Listed) 51 mm Inner Diameter (Flat) 8 mm Shaft Diameter (Listed) 12 mm (0.47 in) Width / Depth 22 mm (0.87 in) Number of Blades 6 Impeller Hub / Drive Slotted Shaft Pin Drive (also listed as slotted shaft pin drive / through-hole pin drive) Insert Material Brass Shipping Weight 0.15 kg Included O-Ring 0.2173.476 (54.6 x 2.4) Replaces Jabsco 6303-0003 Article Number 6609810B-9 EAN 8719182044925 Reference 7
Product Details
- Kit type: Impeller service kit for F4 pumps
- Impeller material: Nitrile (oil-resistant)
- Included items: Impeller 09-810B-9, 1 x grease, 1 x O-ring
- Also supplied (listed): Lubrication gel, installation instructions, glycerine
Features
- Nitrile flexible impeller suited to diesel or light oil exposure

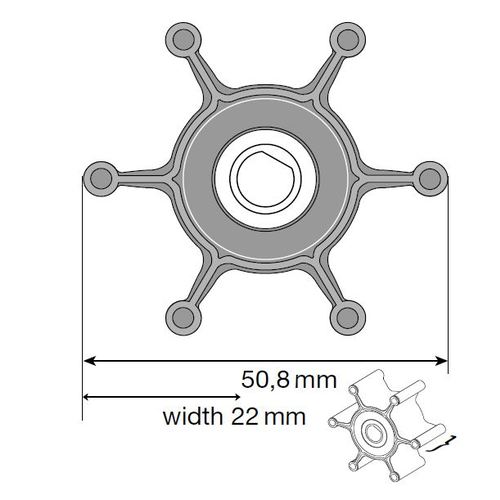

- 6-blade design with stated 50.8 mm diameter and 22 mm width/depth
- Pin-drive hub style listed as slotted shaft pin drive / through-hole pin drive
- O-ring included for service completion
-
