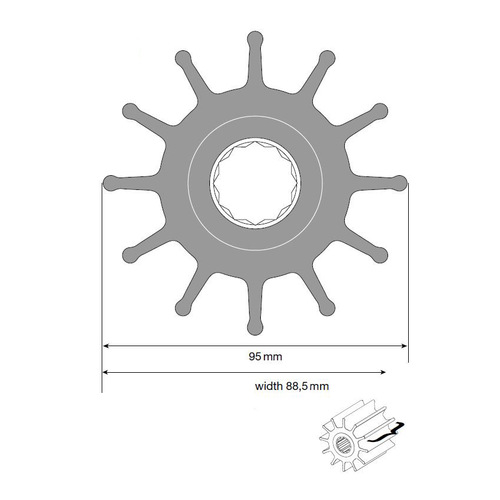

The Johnson Pump 09-814B neoprene impeller is a 12-blade replacement rotor built for Johnson F9 pumps to support efficient cooling and common water-pumping duties. It is specified with a 95 mm outer diameter and 88.5 mm width, and it features a spline drive hub; listed shaft diameter values include 0.95 inch and 25.4 mm. This impeller is supplied as a service kit (including grease, washer, spline plug, and glycerin) and is stated to replace Jabsco 21676-0001 and 17936-0001, with additional alternative references provided for multiple brands.
- Description
- Ask a Question
-
Johnson Pump 09-814B Neoprene Flexible Impeller Kit
The Johnson Pump 09-814B is a neoprene flexible impeller designed for Johnson F9 pump applications. With a 12-blade design and a spline drive hub, it supports common water-pumping tasks such as engine cooling, water transfer, wash down, and bilge water pumping.
Application
- Water-pumping tasks: engine cooling, water transfer, wash down, bilge water pumping
- Pump family: Johnson Pump F9 range
- Also stated as compatible with SPX F9 pumps
Compatibility
- Johnson Pump F9B-3600
- Johnson Pump F9B-3607
- Johnson Pump F9B-3620
- Johnson Pump F9B-3627
- Johnson Pump F9B-3630
- Johnson Pump F9B-3637
- Johnson Pump F9B-5
- Johnson Pump F9B-5600 (TSS)
- Johnson Pump F9B-5600 (VF)
- Johnson Pump F9B-5607
- Johnson Pump F9B-9
- Johnson Pump F9B-902
- Johnson Pump F9B-903
- Johnson Pump F9B-905
- Volvo Penta pump 846105
- Volvo Penta pump 3837935
- Scania pump 1785016
- Scania pump 1785018
- Scania pump 1785244
- Orbitrade pump 17935
Technical Specifications
Brand Johnson Pump Product Type Impeller (Service Kit) Pump F9 Material Neoprene Number of Blades 12 Outer Diameter 95 mm Diameter (As Listed) 3.48 inches; 3.74 inches; 95 mm Width (As Listed) 3.74 inches; 88.5 mm Depth (As Listed) 88.5 mm; 88.9 mm; 3.48 inches Hub / Shaft Interface Spline Drive (Splines) Shaft Diameter (As Listed) 0.95 inch; 25.4 mm Insert Material Brass Article Number 6609814B EAN 8719182044925 Shipping Weight 1.00 kg
Product Details
- Replaces (Jabsco): 21676-0001
- Replaces (Jabsco): 17936-0001
- Reference: 17
What Is Included
- Impeller 09-814B
- Grease
- Washer
- Spline plug
- Glycerin
Alternative To
- Ancor J050045
- Caterpillar 4L8470
- Detroit Diesel 5196168
- Detroit Diesel 08924839
- Detroit Diesel 5198550
- Perkins 460027
- Scania 323897
- Scania 1923450
- Scania 2295719
- Vetus IMP00801
- Volvo 875814-6
- Volvo 875697
- Volvo 84596
- Volvo 844683
- Volvo 842857
- Yanmar 165000-35270
-
