ID
1330869
$ 27.48
1-2 weeks delivery time
-
+
The Johnson Pump 09-806B-1 flexible impeller kit is engineered for Johnson F35 pumps and uses MC97/EPDM material to support efficient, durable water-pumping performance. Its 6-blade design and precisely matched dimensions (40 mm outer diameter, 9.5 mm flat inner diameter, 19 mm width/depth) help deliver consistent operation in general cooling and water-transfer applications. The kit is supplied complete with gaskets, lubricant, and instructions to support straightforward installation, and the MC97 compound is developed to meet updated environmental regulations while offering extended service life versus neoprene impellers.
- Description
- Ask a Question
-
Johnson Pump 09-806B-1 Flexible Impeller Service Kit

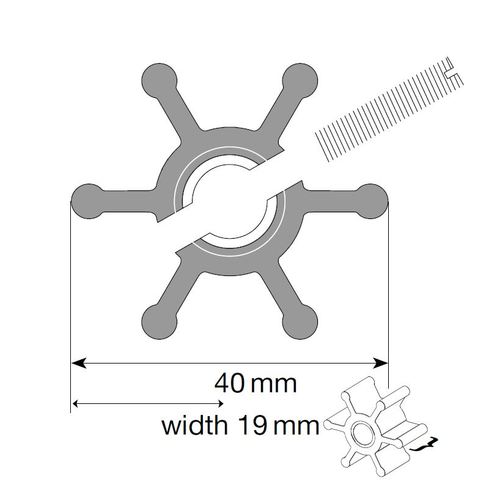

The Johnson Pump 09-806B-1 is a 6-blade flexible impeller kit designed for F35 pump applications. Built from MC97/EPDM, it is intended to deliver reliable, repeatable pumping performance and long service life in general water-pumping duties.
Application
- General cooling and water-pumping applications
- Engine cooling
- Water transfer
- Wash down
- Bilge pumping
Compatibility
- F35 pumps
- SPX F35 pumps
- Johnson F4B-9 pump models: 10-24463-01
- Johnson F4B-903 pump models: 10-31934-1
- Johnson F35B-9 pump models: 10-32280-1
- Johnson F35B-802 pump models: 10-32388-1
- Johnson F35B-802 pump models: 10-32415-
- Johnson F35B-802 pump models: 10-35038-21
- Johnson F35B-802 pump models: 10-35039-1
Technical Specifications
Brand Johnson Pump Product Portfolio Impeller Material MC97/EPDM Outer Diameter 40 mm (1.58 in) Inner Diameter 9.5 mm / flat Shaft Diameter 9.5 mm (0.37 in) Width / Depth 19 mm (0.75 in) Number of Blades 6 Impeller Hub Slotted Shaft / Through Hole Pin Drive Insert Material Brass Shipping Weight 0.10 kg EAN 8719182044925 Article Number 6609806B-1 Replaces 4528-0001 Reference 4
Product Details
- Impeller type: MC97 flexible impeller for cooling and general water-pumping functions
- MC97 material note: Developed to meet new environmental regulations for rubber manufacturing processes and intended to replace the regular Johnson neoprene impeller compound; the MC97 development also provides extended service life compared to neoprene impellers.
- Drive style: Slotted shaft pin drive / through hole pin drive
Features
- Six-blade flexible impeller design for consistent pumping performance
- Supplied with gaskets, lubricant (grease / glycerin), and an instruction manual to aid installation
- Includes gasket 01-42911
- Kit contents listed in the provided information: impeller 09-806B-1, 2 gaskets, 1 grease
Alternative Part References
- Ancor 2043
- Onan 132-0859
- Perkins 24990272
- Sherwood 9979
- Vetus IMP00501
- Volvo 803729
- Volvo 875807-0
- Volvo 876554-7
- Volvo 833550
- Yanmar 104211-42070
-
