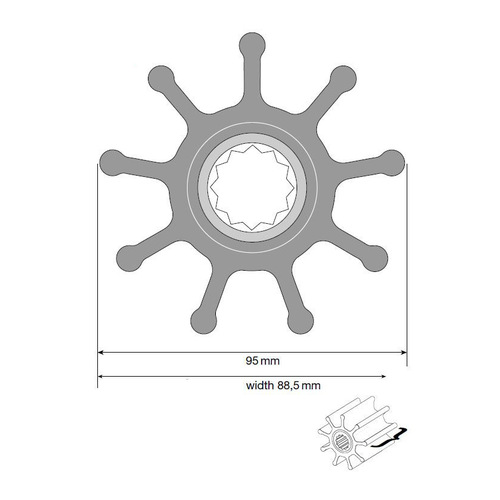

The Johnson Pump 09-802B neoprene impeller kit is a genuine flexible impeller solution for engine cooling and water pumping duties such as water transfer, washdown, and bilge pumping. Its 9-blade neoprene design with spline drive supports secure fitment in compatible Johnson Pump F9-range pumps and selected Nanni pumps, and it is also listed as compatible with MAN pump references 50.06500-7011 and 50.06500-7012. Key dimensions include a 95 mm (3.74 in) outer diameter, 63 mm (2.48 in) width, and a depth listed as 88.5 mm (3.48 in), while replacing Jabsco part number 6760-0001.
- Description
- Ask a Question
-
Johnson Pump 09-802B Neoprene Flexible Impeller Kit for F9 Pumps
The Johnson Pump 09-802B is a genuine neoprene flexible impeller intended for water pumping tasks including engine cooling, water transfer, washdown, and bilge pumping. Built around a spline-drive hub for a secure connection, it is specified for Johnson Pump F9-series applications and is offered as a service kit to support routine maintenance.
Application
- Engine cooling systems
- Water transfer
- Washdown
- Bilge pumping
Regular cooling-system maintenance is recommended; the provided information advises replacing the impeller annually.
Compatibility
- Johnson Pump F9B-3 (10-22346-1)
- Johnson Pump F9B-303 (10-22346-2)
- Johnson Pump F9B-3000 (10-13026-1)
- Johnson Pump F9B-3000-TSS (10-13177-01)
- Johnson Pump F9B-3000-VF (10-13225-01)
- Johnson Pump F9B-3007 (10-13026-7)
- Johnson Pump F9B-3020 (10-13026-3)
- Johnson Pump F9B-3027 (10-13026-9)
- Johnson Pump F9B-3030 (10-13026-2)
- Johnson Pump F9B-3037 (10-13026-8)
- Johnson Pump F9B-5 (10-22362-)
- Johnson Pump F9B-9 (10-13064-1)
- Johnson Pump F9B-9 (10-13064-2)
- Johnson Pump F9B-9 (10-13145-01)
- Johnson Pump F9B-9 (10-24072-1)
- Johnson Pump F9B-9 (10-24239-1)
- Johnson Pump F9B-9 (10-24239-2)
- Johnson Pump F9B-900 (10-24090-1)
- Johnson Pump F9B-903 (10-24090-2)
- Selected Nanni pumps (as stated)
- MAN pumps 50.06500-7011
- MAN pumps 50.06500-7012
Technical Specifications
Brand Johnson Pump Part Number 09-802B Article Number 6609802B EAN 8719182044925 Product Portfolio Impeller Pump Reference F9 Reference 16 Material Neoprene Insert Material Brass Number of Blades 9 Outer Diameter 95 mm (3.74 in) Width 63 mm (2.48 in) Depth 88.5 mm (3.48 in) Depth (Also Listed) 88.9 mm Hub / Drive Type Spline Drive Shaft Diameter 25.4 mm Shipping Weight 0.90 kg
Product Details
- Role in the system: Pumps water through the engine cooling system
- Replacement reference: Replaces Jabsco part number 6760-0001
- Alternative to: Ancor JP50015
Kit Contents
- Impeller 09-802B
- Washer (1x)
- Grease (2x)
- Glycerine
- Conical washer 01-47591
Features
- Neoprene construction specified for cooling applications
- 9-blade design for water pumping performance
- Spline drive hub for a secure, efficient connection
-
