ID
1330867
$ 54.09
1-2 weeks delivery time
-
+

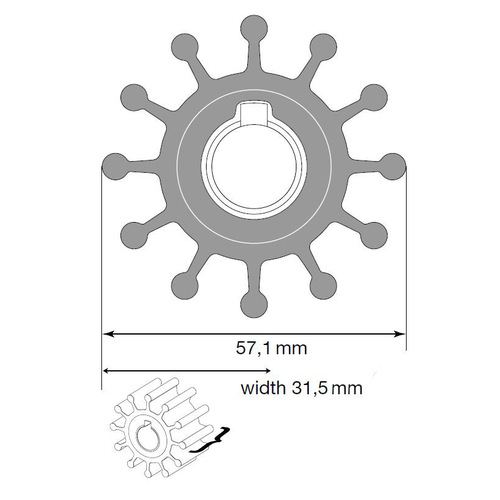

The Johnson Pump 09-801B neoprene impeller service kit supports efficient pumping performance for selected Johnson F5 pump applications, including use with Thornycroft and Volvo systems. It features a 12-blade neoprene impeller with key drive and a 57.1 mm outer diameter, 31.5 mm width, and 15.9 mm shaft diameter, and it is supplied with installation components such as a gasket or O-ring plus service items including gaskets, grease, and a Woodruff key. This kit also replaces the Jabsco 4568-0001 impeller and is listed as an alternative to specific Volvo and Yanmar part numbers.
- Description
- Ask a Question
-
Johnson Pump 09-801B Neoprene Impeller Kit With Key Drive
The Johnson Pump 09-801B is a neoprene impeller and service kit designed to help maintain pump functionality and restore dependable flow. Built around a key-drive impeller and supplied with service parts for installation, it supports efficient operation across compatible marine pumping applications.
Application
- Some Johnson F5 pumps
- SPX F5 pumps
- Thornycroft systems
- Volvo systems
Compatibility References
- Replaces Jabsco 4568-0001 impeller
- Alternative to Volvo 831182
- Alternative to Volvo 875575-3
- Alternative to Volvo 835182
- Alternative to Yanmar 124310-46090
Technical Specifications
Brand Johnson Pump Model 09-801B Article Number 6609801B EAN 8719182044925 Material Neoprene Insert Material Brass Drive Type Key Drive Number of Blades 12 Outer Diameter 57.1 mm (also listed as 57 mm) Width / Depth 31.5 mm (also listed as 1-1/4 in) Shaft Diameter 15.9 mm (also listed as 16 mm) Shipping Weight 0.20 kg Reference 9
Product Details
- Kit Contents (as listed): Impeller 09-801B, 2 gaskets, 1 grease, 1 Woodruff key
- Included sealing parts (as listed): cover gasket or O-ring for secure installation
- Gasket reference (as listed): 01-42636
- Service kit note (as listed): includes key and glycerine
- Pump: F5
Features
- Durable neoprene construction for reliable performance and longevity
- 12-blade design for efficient pumping
- Key-drive hub for positive drive engagement
-
