ID
1353833
$ 617
1-2 weeks delivery time
-
+
The Flojet R3B21502A Triplex Compact Series Bypass Pump is a 12V DC pump delivering 4.7 LPM with 3.4 bar bypass, featuring Santoprene diaphragm, Viton check valve, reinforced polypropylene housing, 1/2″ hose barb ports, self-priming to 2.4 m, handling fluid temperatures up to 60°C, and operates without a pressure switch for reliable low-maintenance service.
- Description
- Ask a Question
-

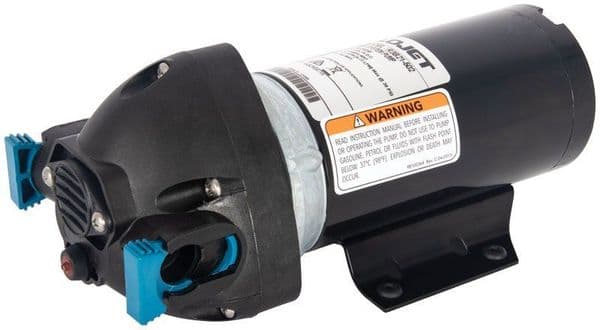

Flojet R3B21502A - Triplex Compact Series Bypass Pump - 12V
The Flojet R3B21502A is a compact Triplex Bypass Pump designed for 12 Volt DC operation. It features a 3.4 Bar bypass setting with a maximum flow of 4.7 Lpm. Built with a reinforced polypropylene housing, Santoprene diaphragm, and Viton check valve, this pump includes 1/2" hose barb ports. Self-priming up to 2.4 m and capable of handling fluids up to 60°C, it operates without a pressure switch and provides reliable, low-maintenance service for compact pumping applications.
Technical Data
Bypass Setting 3.4 Bar Max Flow 4.7 Lpm Voltage 12 Volt DC Current 4.0 Amps Diaphragm Santoprene Check Valve Viton Ports 1/2" Hose Barb Self-Priming Up to 2.4 m Max Fluid Temperature 60°C Housing Reinforced Polypropylene
Brand: Flojet
Article: R3B21502A -
