Flojet R8500144A - Water Pressure Pump 12V 18.9 LPM 4.8 Bar

ID 1350454

$ 528.49

1-2 weeks delivery time

- +

Add to cart

The Flojet VersiJet 5.0 water pressure pump is a 12V unit rated up to 18.9 L/min with a 4.8 bar cut-off pressure. It is a high-capacity 5-chamber pump with EPDM valves and a Santoprene diaphragm, with an integrated pressure switch (cuts in approx. 3.5 bar / 50 PSI, cuts out approx. 4.8 bar / 70 PSI). Supplied with straight 19 mm (3/4 inch) hose connections; max current 16A (20A fuse not included) and dimensions of 12.0 cm (H) x 13.0 cm (W, excluding hose ports) x 26.9 cm (L).

Description
Ask a Question

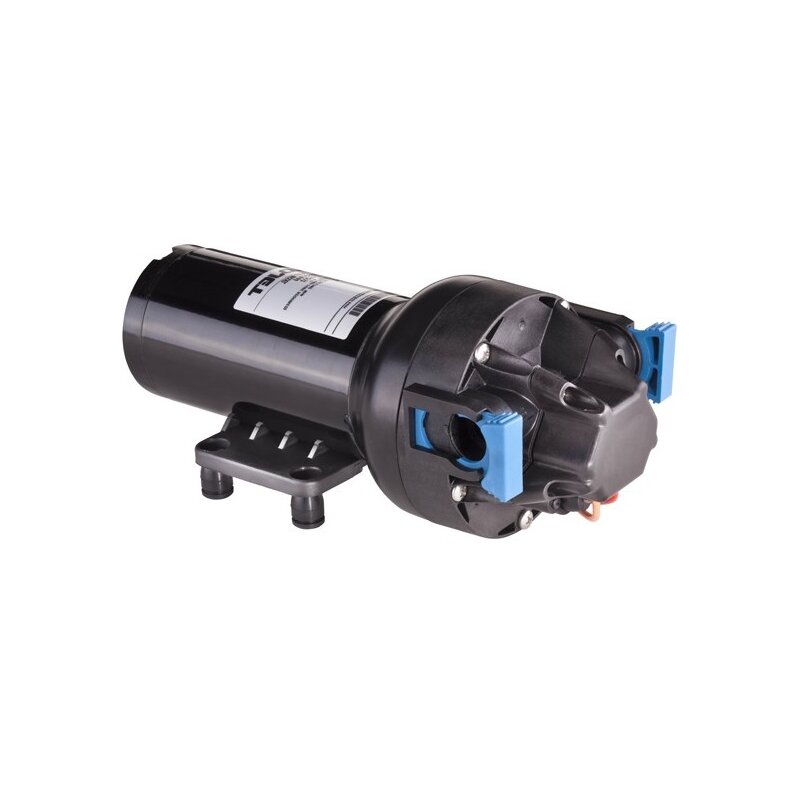

VersiJet 5.0 12V Water Pressure Pump Assembly

The Flojet R8500144A VersiJet 5.0 is a 5-chamber water pressure pump for water pressure system and washdown pump applications. It combines a pressure switch-controlled output with self-priming capability and is designed for intermittent operation.

Technical Specifications

Brand	Flojet
Model	R8500144A
Voltage	12V
Output	18.9 L/min (5 GPM) at open flow
Cut-Off Pressure	4.8 bar (70 PSI)
Pressure Switch Cut-In	Approx. 3.5 bar (50 PSI)
Self-Priming	Up to approx. 3 m
Dry-Run Capability	Runs dry without damage
Duty Cycle	Intermittent operation (not continuous operation)
Included Hose Connections	19 mm (3/4 inch), straight
Max Current	16A
Recommended Fuse	20A (not included)
Materials	EPDM valves; Santoprene diaphragm
Dimensions	Height 12.0 cm / Width 13.0 cm (excluding hose ports) / Length 26.9 cm
Shipping Weight	4.60 kg
Product Portfolio	Water Pressure SystemsWashdown Pumps
Variant Marking	S/E

Features

High-capacity 5-chamber water pressure pump design
Pressure switch operation (cut-in approx. 3.5 bar / 50 PSI; cut-out approx. 4.8 bar / 70 PSI)
Self-priming up to approx. 3 m
Designed to run dry without damage
Designed for intermittent operation (not continuous operation)
Supplied with straight 19 mm (3/4 inch) hose connections

Compatibility

Flojet R8500144A
Flojet R8500-144A
Jabsco 82500-0092
Jabsco 82505-0092
