The Flojet R8600334A Versijet Series Pump is a 24V DC five-chamber diaphragm pump delivering 22.7 LPM at 4.8 bar, with Santoprene diaphragm, Viton check valve, glass-filled nylon housing, internal bypass, integrated pressure/demand switch, self-priming to 3 m, 3/4″ hose barb ports, handling fluid temperatures 4-60°C, suitable for spraying, fluid transfer, filtration, cooling, dispensing, and pressure boosting.
- Description
- Ask a Question
-

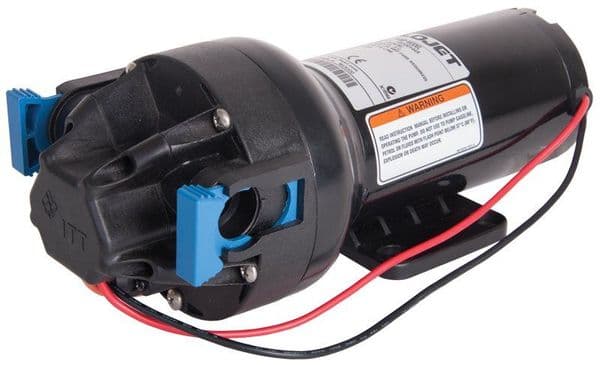

Flojet R8600334A - Versijet Series Pump - 24V
The Flojet VersiJet R8600334A is a robust 24 Volt DC, high-capacity diaphragm pump featuring a 5-chamber design. It delivers up to 22.7 Lpm flow at pressures up to 4.8 Bar (70 psi). Equipped with a Santoprene diaphragm, Viton check valve, and glass-filled nylon housing, it includes an internal bypass and integrated pressure/demand switch. Self-priming up to 3 m, it operates at 9 Amps max and handles fluid temperatures from 4-60°C. The VersiJet’s reinforced design, heavy-duty motor, and choice of elastomers ensure reliable performance in heavy-duty applications such as spraying, fluid transfer, filtration, cooling, dispensing, and pressure boosting.
Technical Data
Flow Rate 22.7 Lpm (6.0 GPM) Pressure Switch 4.8 Bar (70 psi) Voltage 24 Volt DC, Max 9 Amps Self-Priming Up to 3 m Chambers 5 Diaphragm Santoprene Check Valve Viton Bypass Internal Ports 3/4" Hose Barb Fluid Temperature 4-60°C Housing Glass-filled Nylon
Applications
- Spraying, fluid transfer, and bulk delivery
- Filtration, chemical recirculation, and cooling systems
- Dispensing and mobile washdown systems
- Pressure boosting for intermittent or demand-based use
Brand: Flojet
Article: R8600334A -
