ID
1311900
$ 3,929.16
1-2 weeks delivery time
-
+
The 1490-H Twintrack rail maintains the 26 mm height and 450 mm width, with linear guides, a stainless steel frame, spring-loaded manual locking every 40 mm, and a customizable anti-slip top plate; it supports flush and deck mounting with an optional angled bulkhead frame.
- Description
- Ask a Question
-

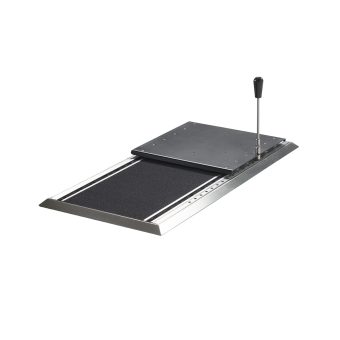

Zwaardvis 1490-H - Twintrack Rail Manual Operation L= 1490mm

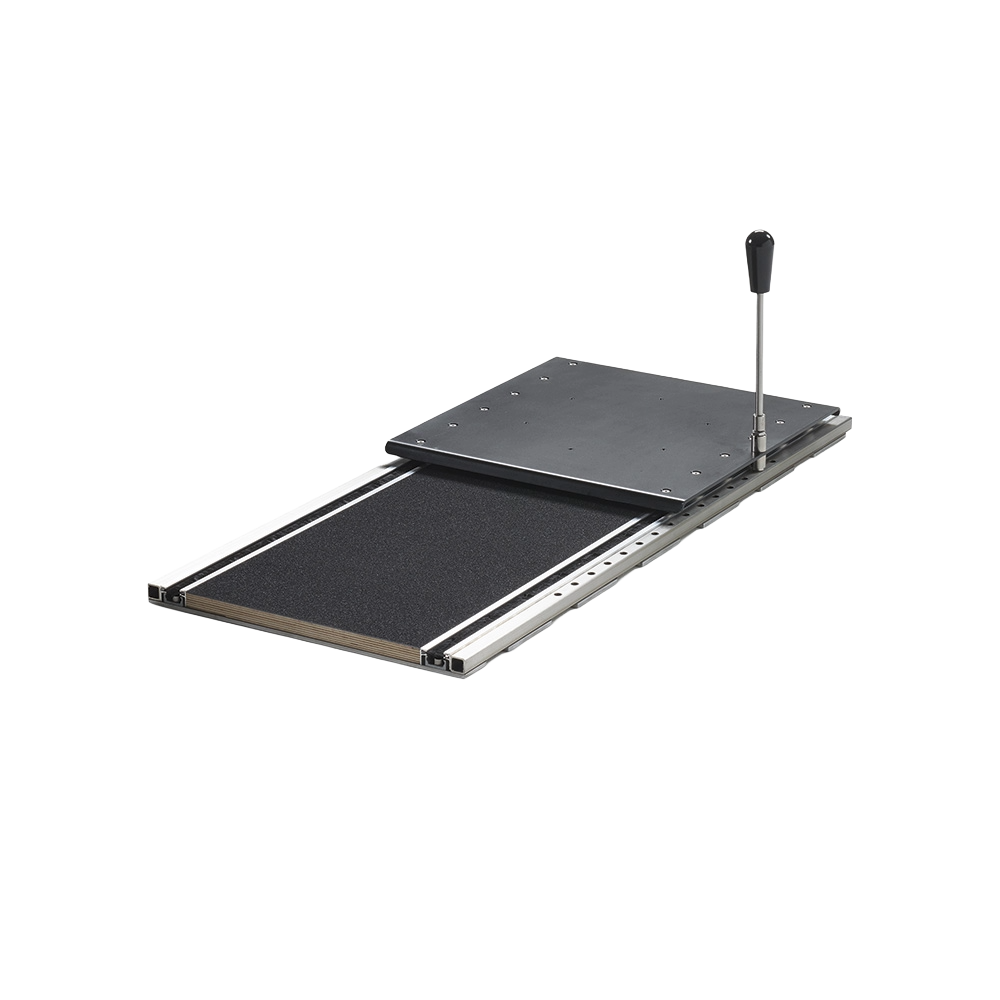

This 1490-H Twintrack rail maintains the low 26 mm height and 450 mm width, with linear guides protected by brush covers and a stainless steel frame. The helm seat carrier locks every 40 mm using a spring-loaded manual handle. The top plate features an anti-slip layer, customizable upon request. Suitable for both flush and deck mounting, with an optional stainless steel bulkhead frame with a 45° angled surface for deck mount. A flat mounting surface is required for smooth sliding.
- Height: 26 mm
- Width: 450 mm
- Locking Interval: Every 40 mm
- Locking Mechanism: Spring-loaded manual handle
- Top Plate: Anti-slip layer, customizable
- Mounting: Flush mount or deck mount

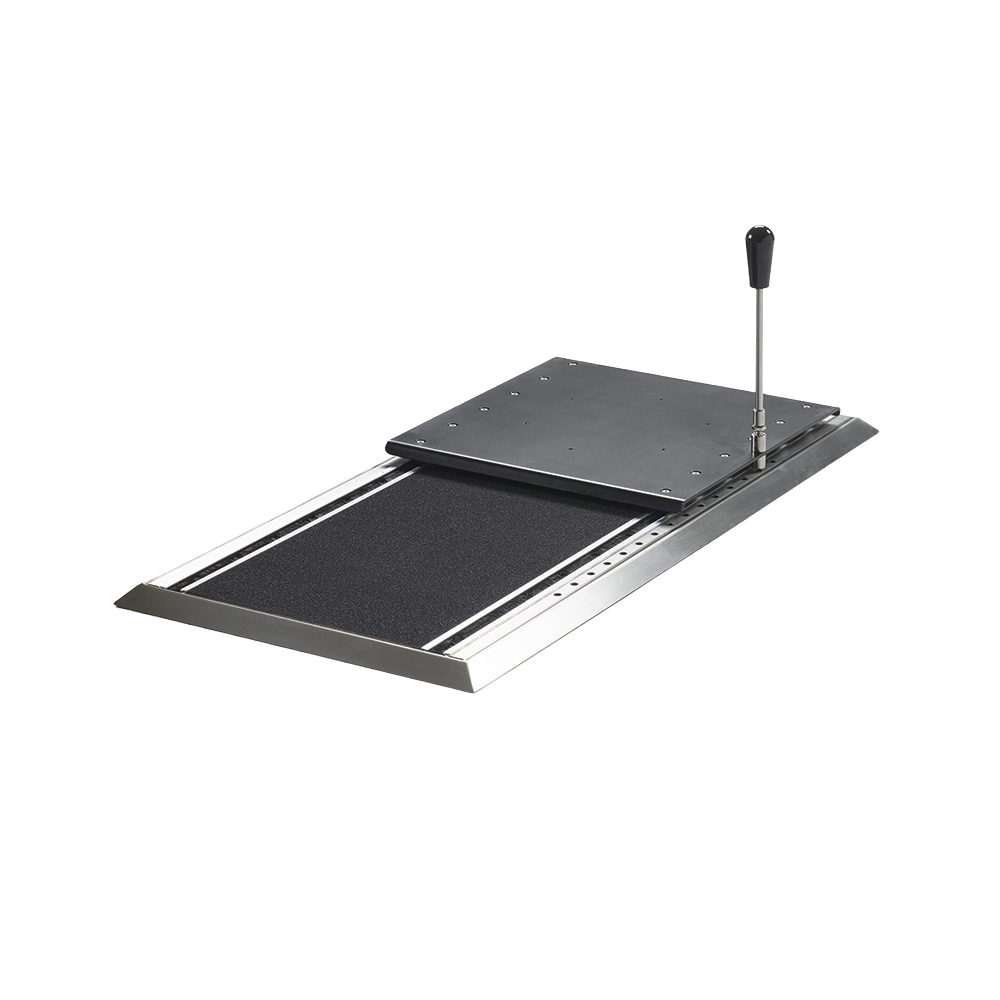

- Optional: Stainless steel bulkhead frame with 45° angle for deck mount
- Length: 1490 mm
- Product Code: 22.60.215
-
