ID
1311898
$ 3,382.57
1-2 weeks delivery time
-
+
The 1010-H Twintrack rail is a low-profile decktrack measuring 26 mm in height and 450 mm in width, featuring linear guides with brush covers, a stainless steel frame, and a helm seat carrier that locks every 40 mm using a spring-loaded manual handle; it includes a customizable anti-slip top plate and supports both flush and deck mounting with an optional stainless steel bulkhead frame.
- Description
- Ask a Question
-

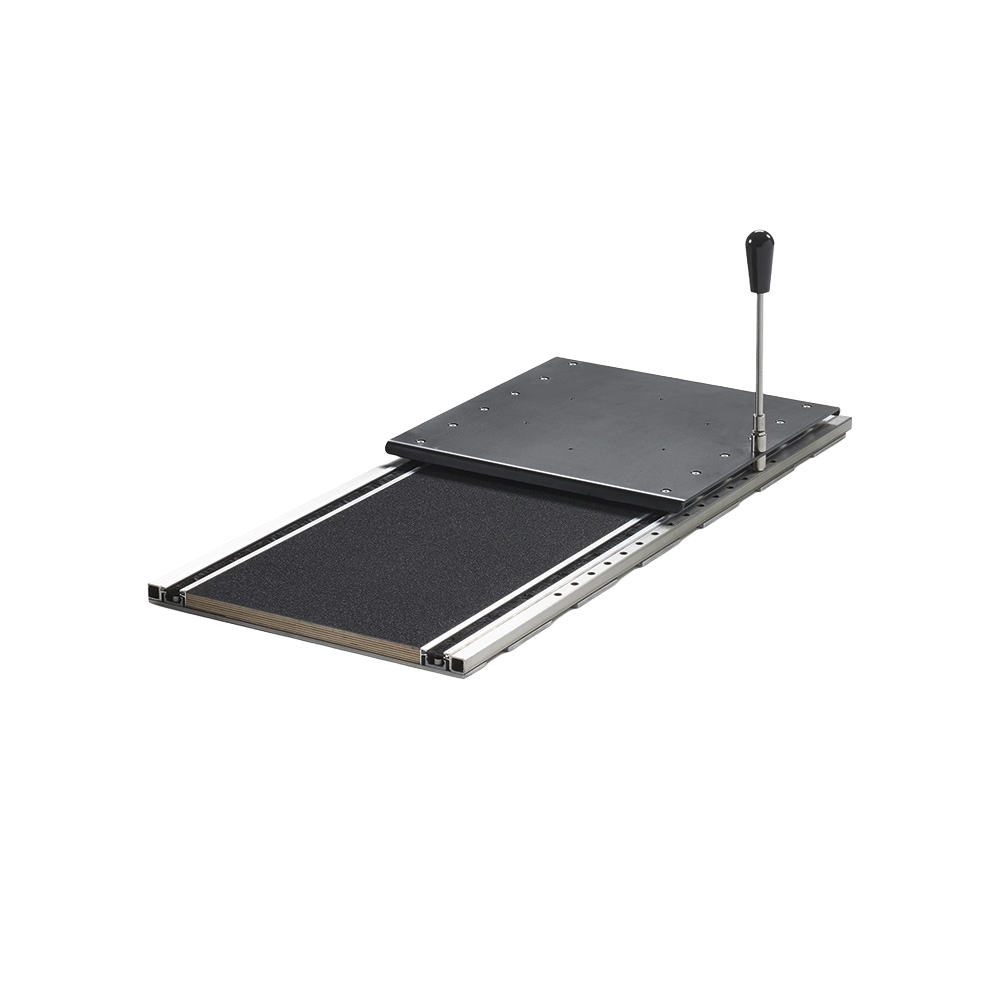

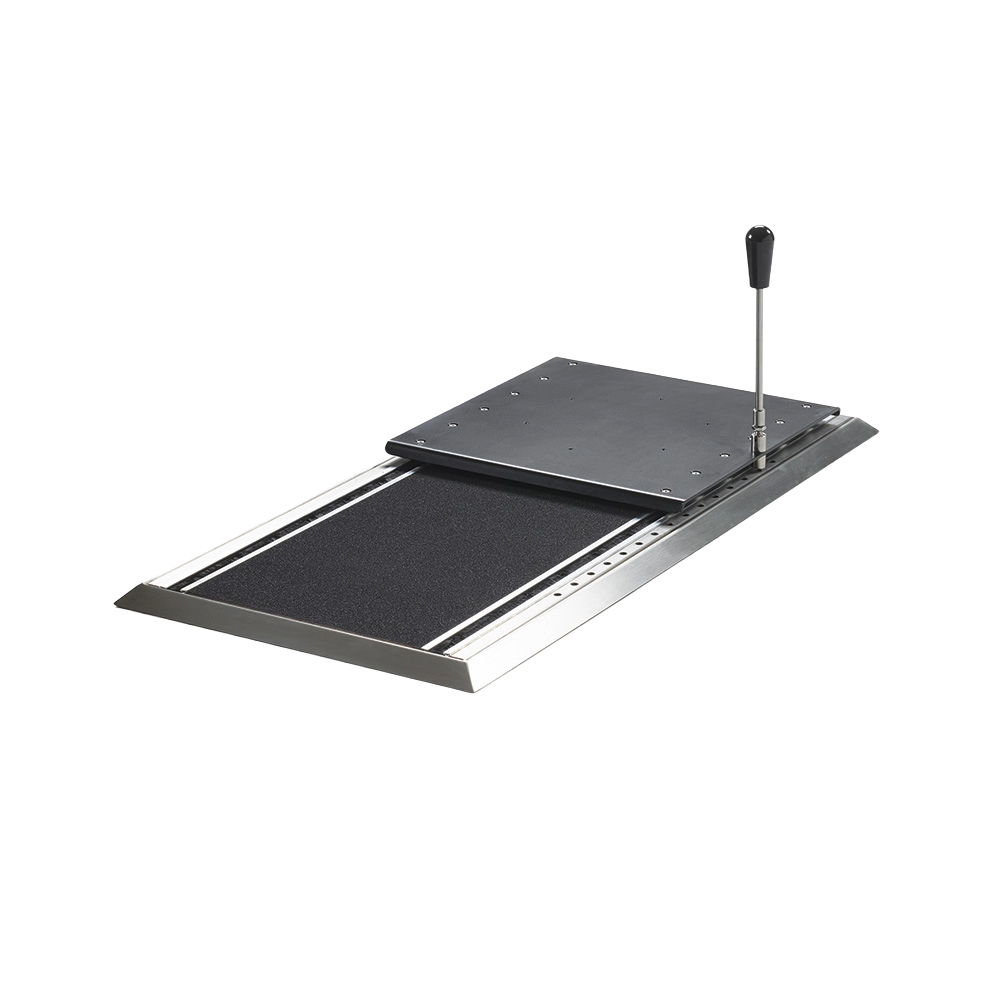

Zwaardvis 1010-H - Twintrack Rail Manual Operation L= 1010mm
The 1010-H Twintrack rail is the lowest decktrack available, with a height of only 26 mm and a width of 450 mm. It features linear guides with brush covers and a stainless steel frame. The helm seat carrier locks every 40 mm using a spring-loaded manual handle. The top plate includes an anti-slip layer, which can be customized. Twintrack is suitable for both flush mount and deck mount installations. For deck mounting, a stainless steel bulkhead frame with a 45° angled surface is available. Note that the system requires a flat mounting surface for smooth sliding.
- Height: 26 mm
- Width: 450 mm
- Locking Interval: Every 40 mm
- Locking Mechanism: Spring-loaded manual handle
- Top Plate: Anti-slip layer, customizable
- Mounting: Flush mount or deck mount
- Optional: Stainless steel bulkhead frame with 45° angle for deck mount
- Length: 1010 mm
- Product Code: 22.60.210
-
