The 1170-H Twintrack rail shares the same low profile and features as the 1010-H, with a length of 1170 mm, offering customizable anti-slip top plate, spring-loaded manual locking every 40 mm, and options for flush or deck mounting with an optional angled bulkhead frame.
- Description
- Ask a Question
-

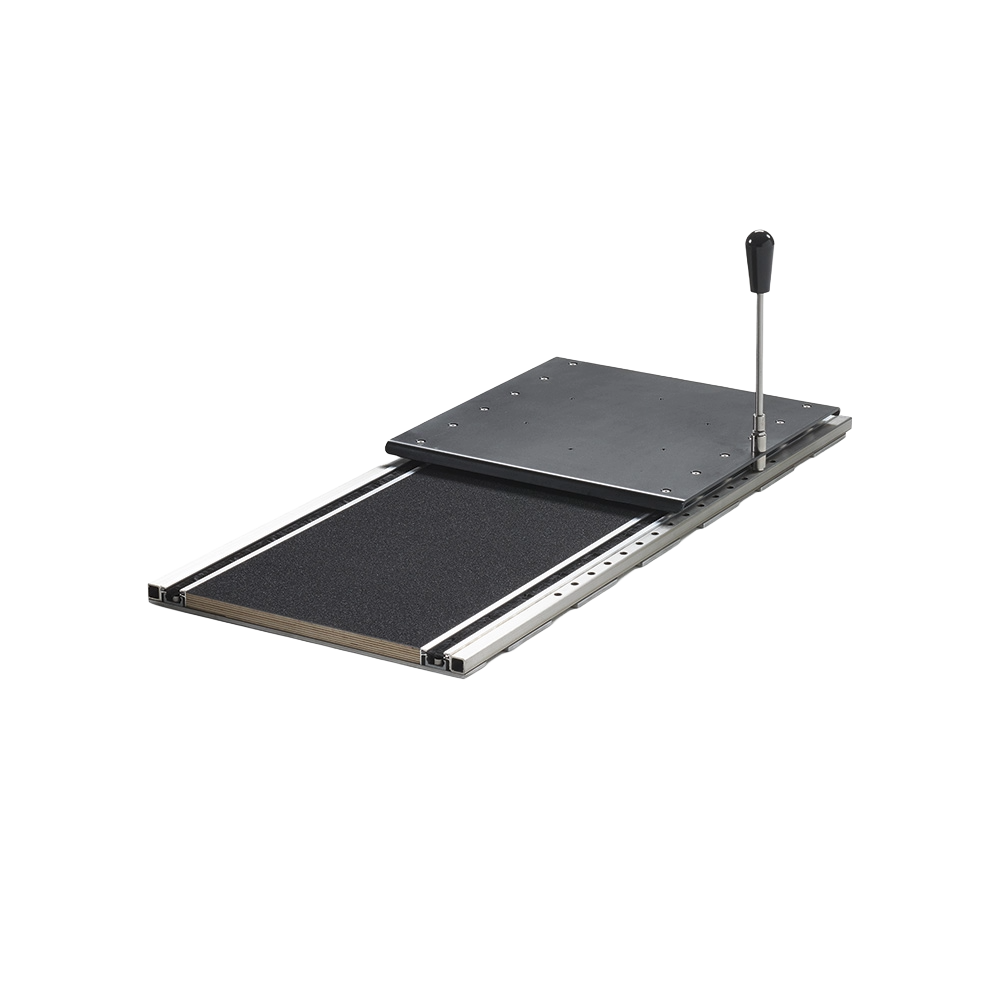

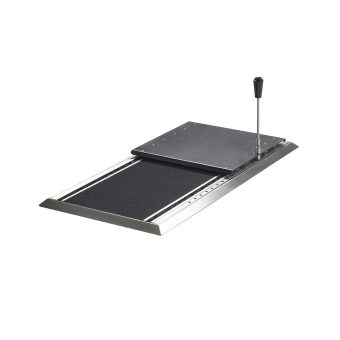

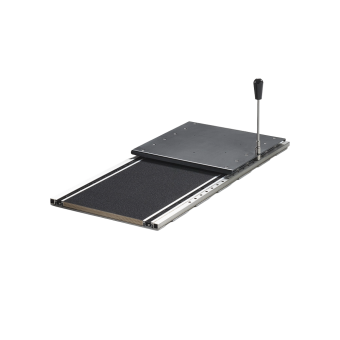

Zwaardvis 1170-H - Twintrack Rail Manual Operation L= 1170mm
The 1170-H Twintrack rail shares the same low profile with a 26 mm height and 450 mm width. It includes linear guides with brush covers and a stainless steel frame. The helm seat carrier locks every 40 mm via a spring-loaded manual handle. The top plate has an anti-slip surface that can be customized. Suitable for flush and deck mounting, with an optional stainless steel bulkhead frame featuring a 45° angled surface for deck mount. A flat mounting surface is necessary for smooth operation.
- Height: 26 mm
- Width: 450 mm
- Locking Interval: Every 40 mm
- Locking Mechanism: Spring-loaded manual handle
- Top Plate: Anti-slip layer, customizable
- Mounting: Flush mount or deck mount

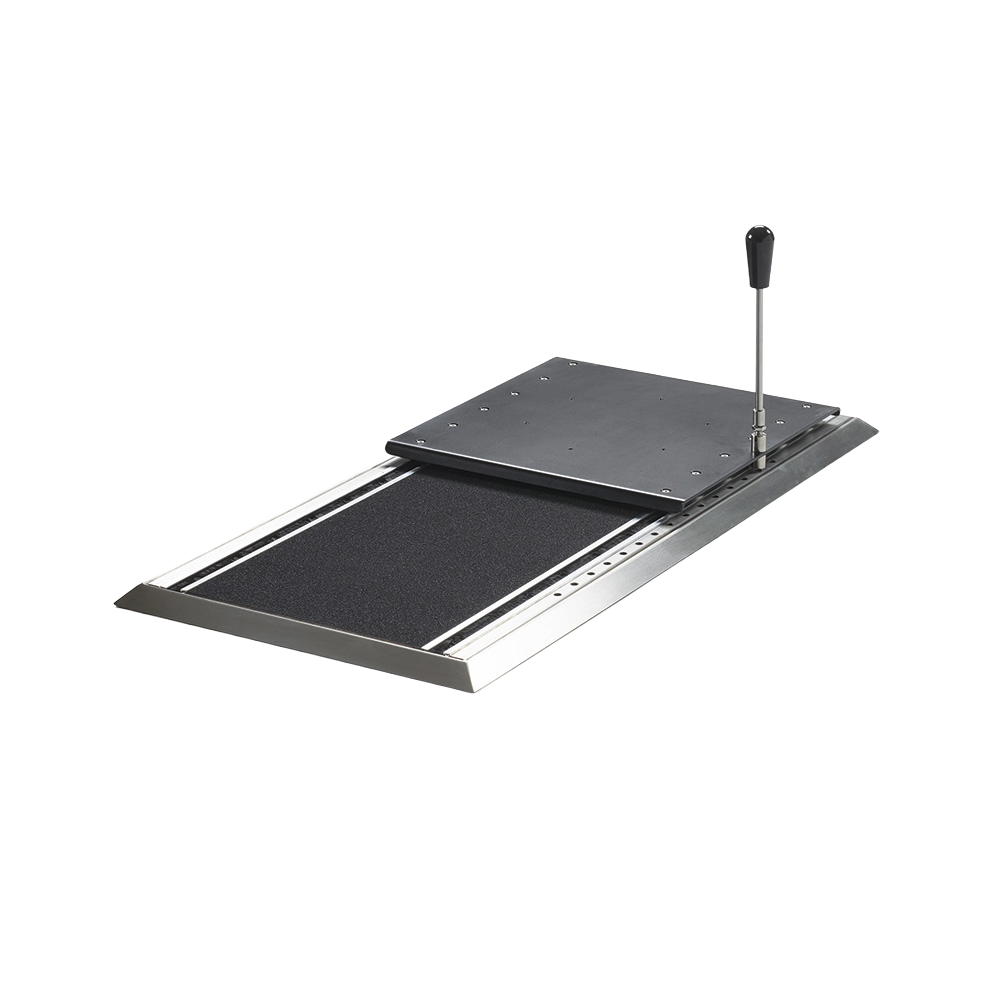

- Optional: Stainless steel bulkhead frame with 45° angle for deck mount
- Length: 1170 mm
- Product Code: 22.60.211
-
